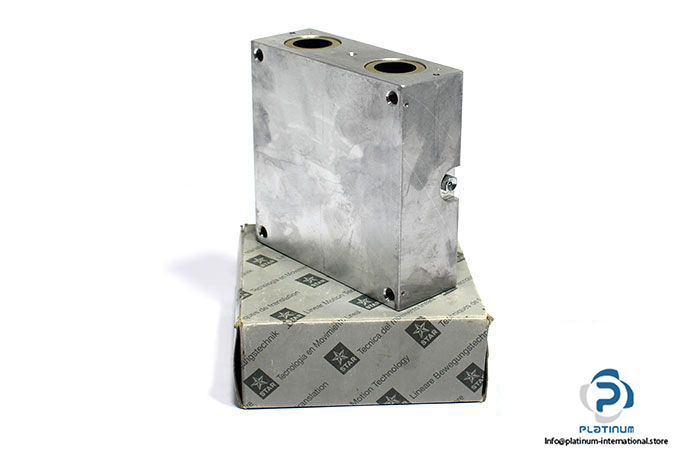

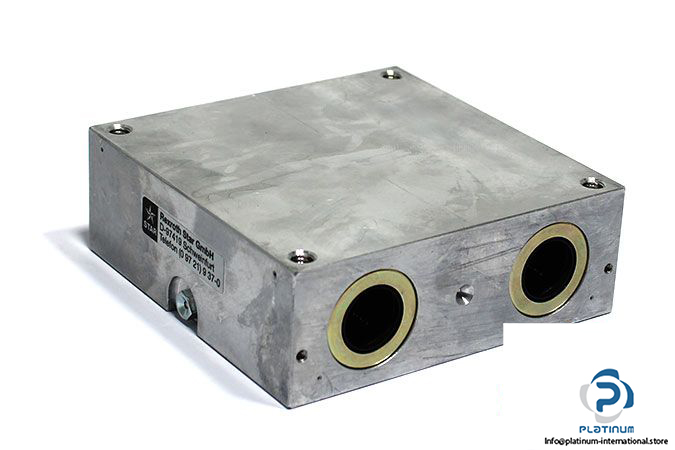

Manufacturer: REXROTH STAR

Type: Linear Motion Slide without Drive Unit

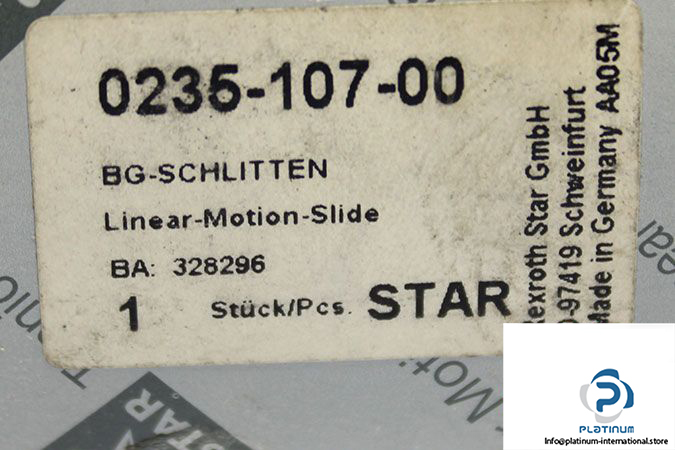

MNR: 0235-107-00

Model: SGO 16-100

Shaft diameter d: 16 mm

Design type: Closed

Format: AL – Aluminum

Dynamic Load Capacity C: 3050 N

Frictional force: 9 N

Dynamic Torsional Moment Load Capacity M_t:  82 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 87 Nm

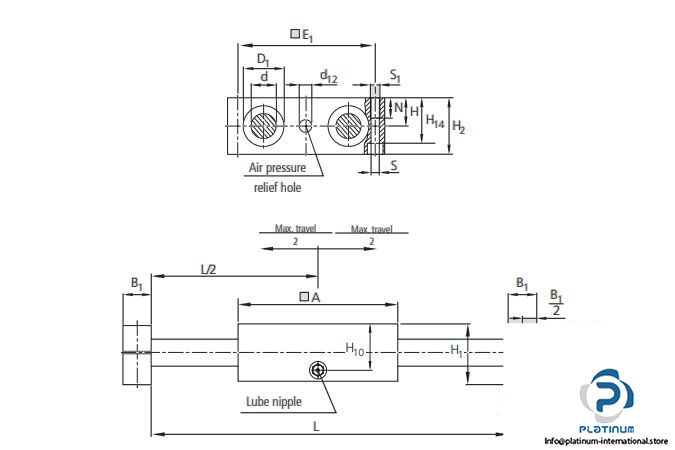

Dimensions:

A: 100 mm

H₂: 36 mm

E₁: 88 mm

Weight: 0.83 kg
