Manufacturer: REXROTH STAR

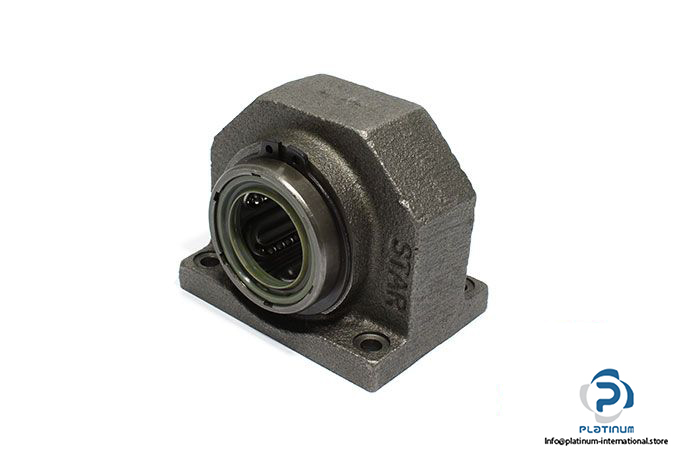

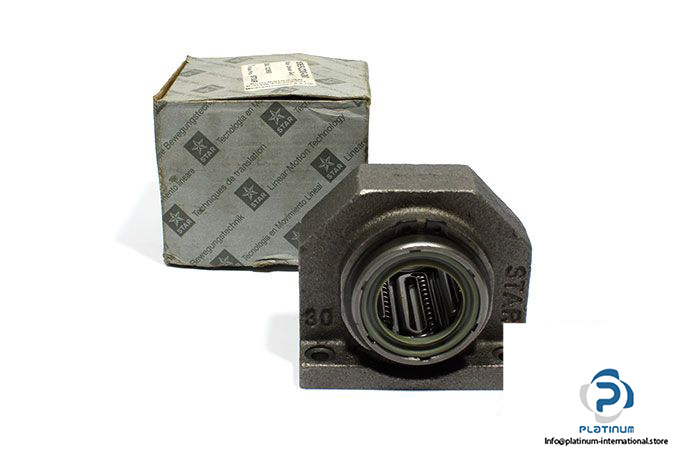

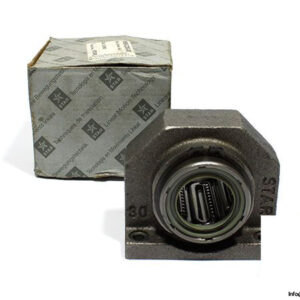

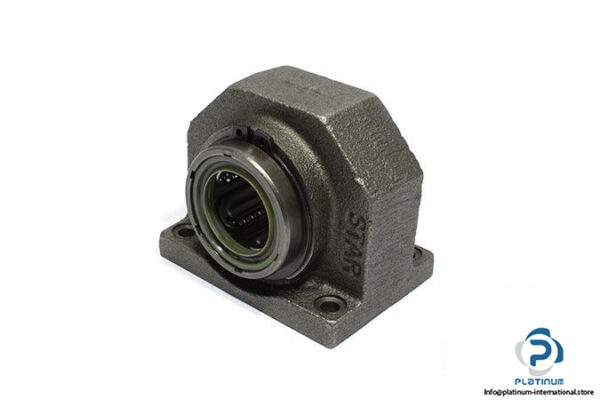

Type: Linear Sets with Standard Linear Bushings

MNR: 106523000

Model: LSG-M-30-DD

Shaft diameter d: 30 mm

Design type: Closed type

Housing Format: Cast iron

Dynamic Load Capacity C: 2820 N

Static Load Capacity C₀: 2230 N

Friction Force F_R: 6 N

Breakaway Force: 18 N

Maximum Acceleration Travel a_max: 100 m/s²

Maximum Permissible Speed v_max: 2.5 m/s

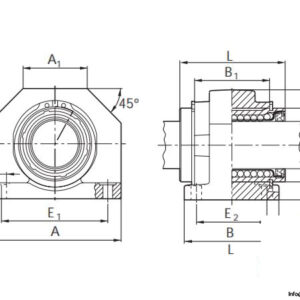

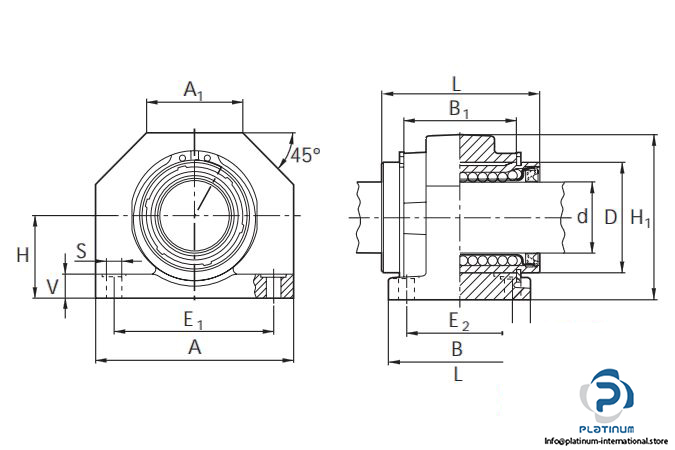

Dimensions:

A: 84 mm

L: 68 mm

H₁: 70 mm

E₁: 68 mm

E₂: 45 mm

Seals: With two wiper seals

Operating temperature: up to 80 °C

Weight: 1.4 kg
