Manufacturer: Rexroth Star

Type: Ball Runner Block FLS

MNR: 165321310

Size: 25 mm

Mechanical Format: KWC

Design: FLS – Flanged, long, standard height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 30400 N

Static Load Capacity C₀ : 45500 N

Dynamic Torsional Moment Load Capacity M_t:  430 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 345 Nm

Accuracy Class: H

Preload Class: C1 – Low

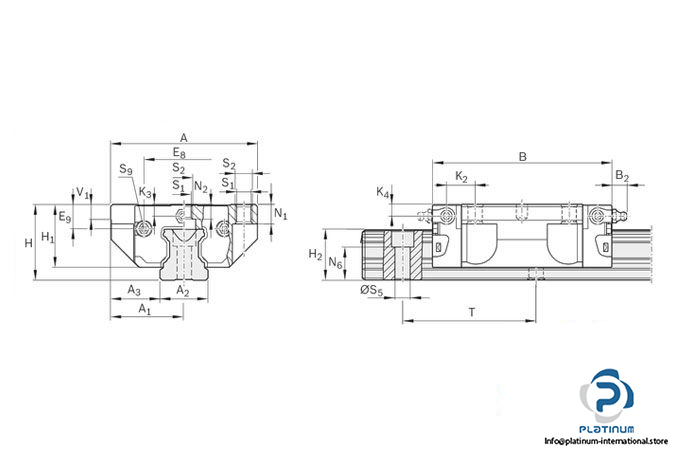

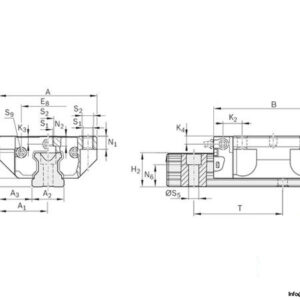

Dimensions

Width ( A ): 70 mm

Length ( B ): 103 mm

Height ( H₁ ): 29.5 mm

Admissible Operating Temperature: -10… +80 °C

Weight: 0.9 kg
