Manufacturer: Rexroth Star

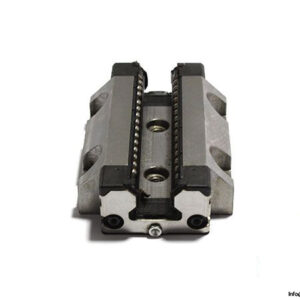

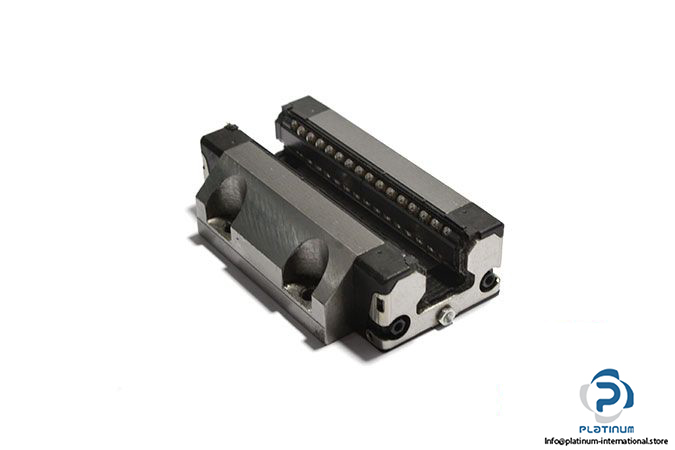

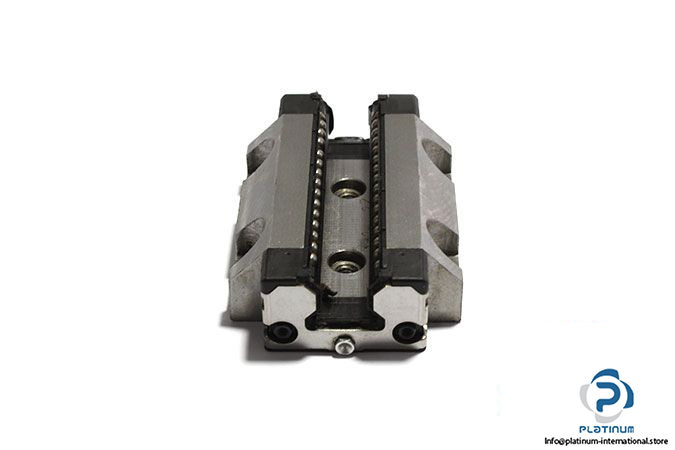

Type: Ball Runner Block FLS

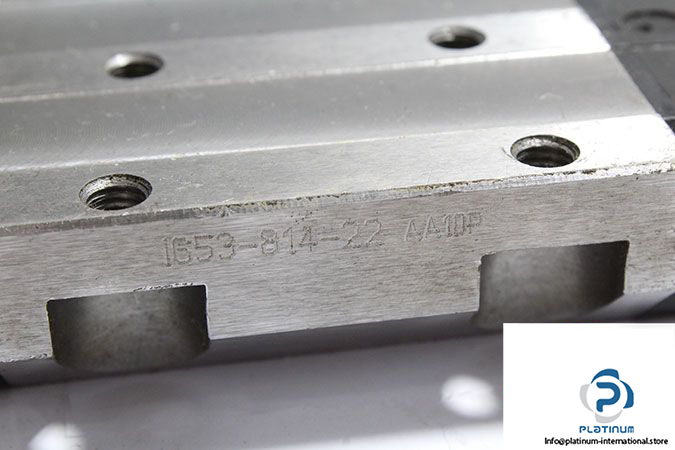

MNR: R165381422

Size: 20 mm

Mechanical Format: KWD

Design: FLS – Flanged, Long, Standard Height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 23100 N

Static Load Capacity C₀: 32500 N

Dynamic Torsional Moment Load Capacity M_t:  310 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 225 Nm

Accuracy Class: N

Preload Class: C1 – Moderate preload

Seal: standard seal, with ball chain

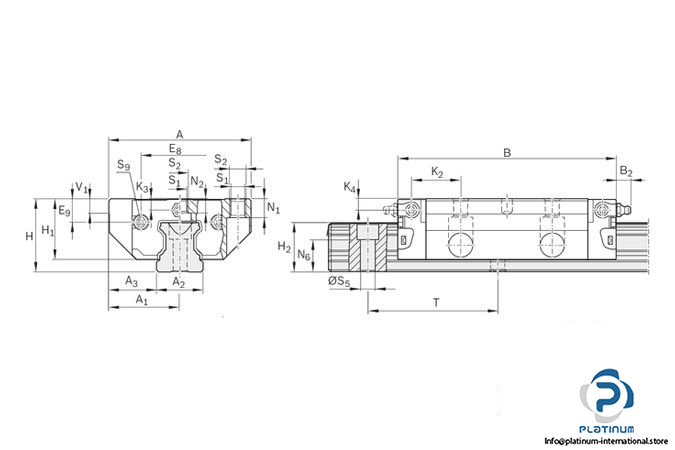

Dimensions

Width (A): 63 mm

Length (B): 91 mm

Height (H): 30 mm

Weight: 0.55 kg
