RHP SNP20 EC Short Base Cast Iron Pillow Block Unit
The RHP SNP20 EC is a robust short base cast iron pillow block unit designed for reliable bearing support in industrial applications. With an eccentric collar locking system, durable cast iron housing, and high load capacity, it ensures stability and long service life under demanding operating conditions.
Manufacturer: RHP
Type: Short Base Cast Iron Pillow Block Units
Model: SNP20 EC

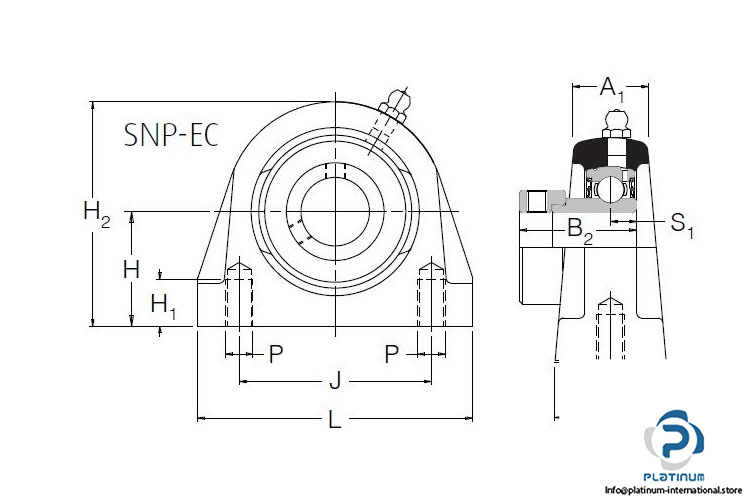

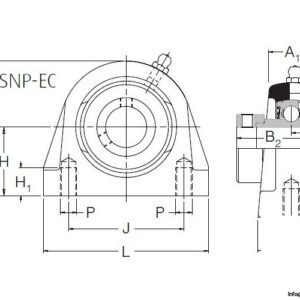

Technical information
- Bore Diameter (d): 20 mm
- Overall Length (L): 65 mm
- Overall Height (H): 33.3 mm
- Distance Between Attachment Bolts (J): 50.8 mm
- Basic Bearing Insert: 1020
- H1: 13.5 mm
- H2: 65.8 mm
- A: 32 mm
- A1: 21.5 mm
- B: 30.96 mm
- B2: 30.92 mm
- Load Ratings: Dynamic Cr: 12800 N / Static Co: 6650 N
- Max Speed: 6700 rpm
- Housing Material: Cast Iron
- Locking Type: EC, Eccentric Collar Lock
