Nachi UCPA206 Tapped Base Pillow Block
New
In stock1 unitReady to ship
Nachi UCPA 206 Tapped Base Pillow Block, 30 mm shaft diameter, dynamic load rating 19,600 N, cylindrical bore, set screws for secure attachment.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

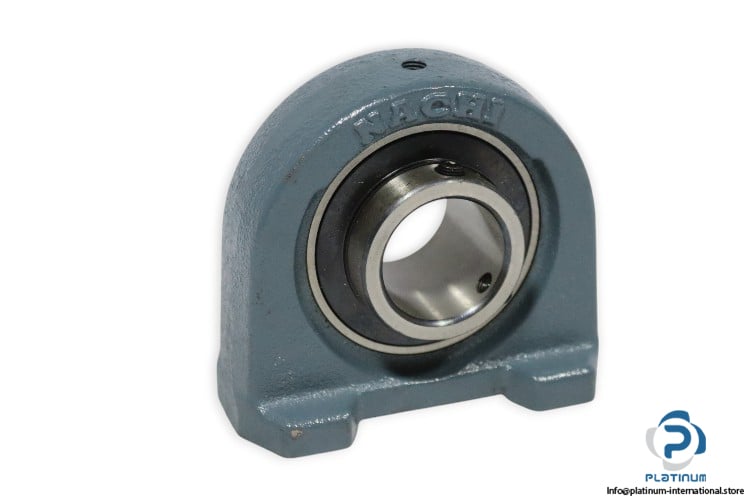

Nachi UCPA 206 Tapped Base Pillow Block
The Nachi UCPA 206 Tapped Base Pillow Block is a high-quality bearing assembly designed for smooth operation and durability. It features a cylindrical bore with a 30 mm shaft diameter, and a set screw locking device for secure attachment. This pillow block is ideal for various industrial applications requiring reliable support and easy mounting.
🔧 Technical Specifications:
- Manufacturer: Nachi
- Type: Tapped Base Pillow Block
- Model: UCPA 206

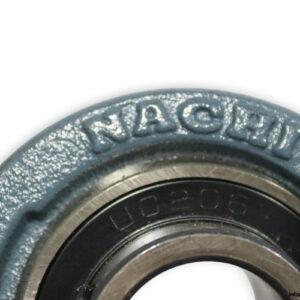

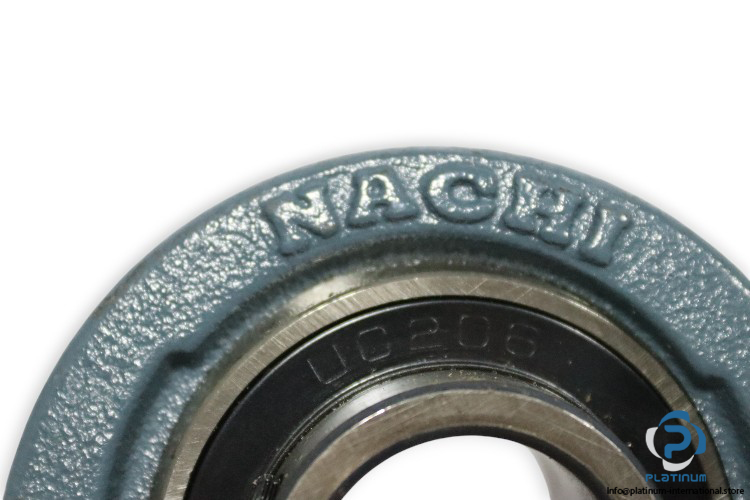

- Bearing No.: UC206

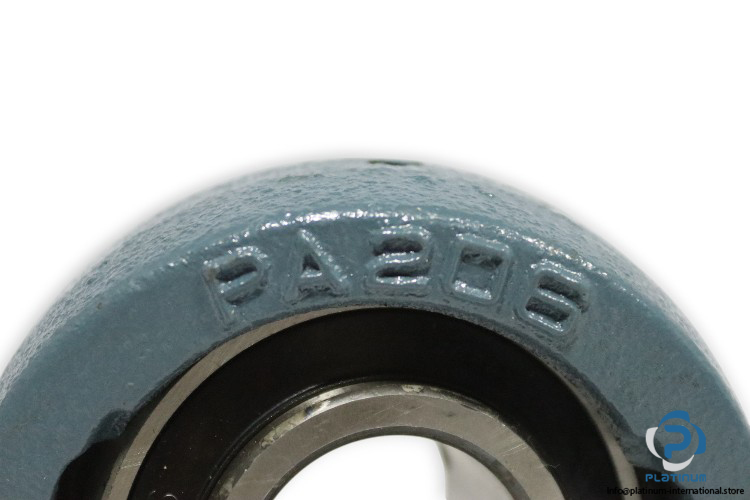

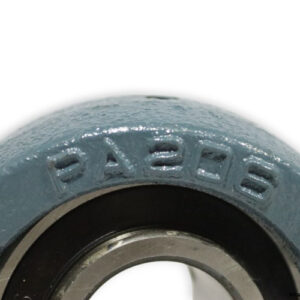

- Housing No.: PA206
- Shaft Diameter: 30 mm
- Overall Length (L): 94 mm
- Overall Height (H2): 84 mm
- Width of Inner Ring (B): 38.1 mm
- Height of Spherical Seat Center (H): 42.9 mm
- Distance Between Attachment Bolts (J): 66 mm
- Basic Load Rating (Dynamic, Cr): 19,600 N
- Basic Load Rating (Static, C0r): 11,300 N
- Locking Device: Set Screws
- Bore Type: Cylindrical Bore
This compact pillow block, with its robust design and easy installation, is built to handle demanding conditions in industrial environments.
