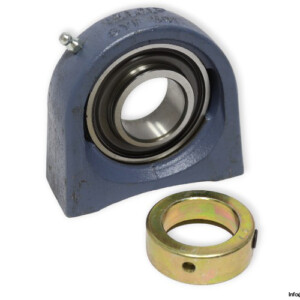

SKF SYF 35 FM Short Base Pillow Block Ball Bearing Unit

Manufacturer: SKF
Type: Short base pillow block ball bearing unit with narrow inner ring and eccentric locking collar
Model: SYF 35FM

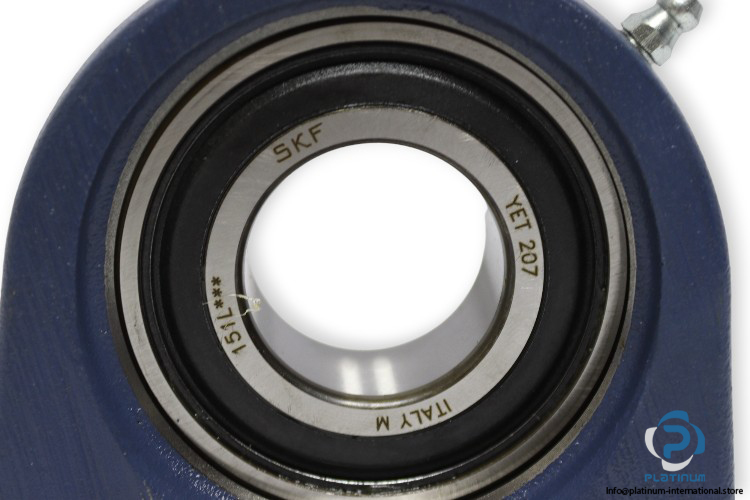

Bearing No.: YET 207
Housing No.: SYF 507

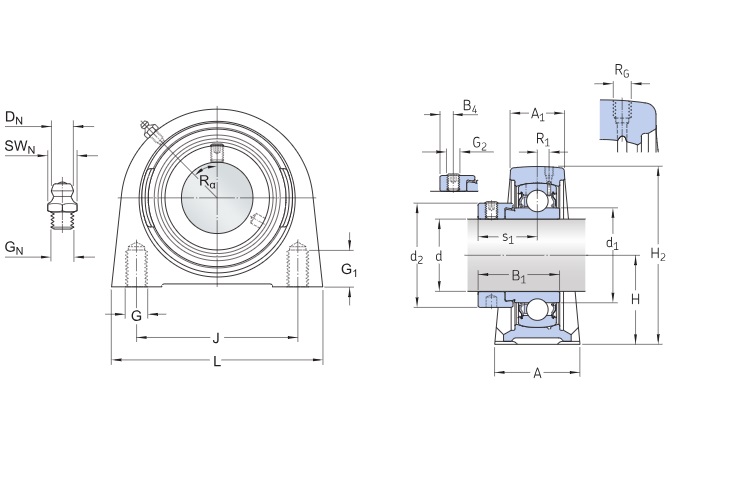

Dimensions
Bore Diameter d: 35 mm
Base width A: 45 mm
Height of spherical seat center H: 47.6 mm
Distance of attachment bolts J: 82.6 mm
Overall length L: 103 mm
Overall height H2: 93 mm
Overall bearing width B1: 38.9 mm
Basic dynamic load rating: 25.5 kN
Basic static load rating: 15.3 kN
Fatigue load limit: 0.655 kN
Limiting Speed: 5300 rpm
Material, housing: Cast iron
Sealing, bearing: Contact Seal and flinger on both sides
