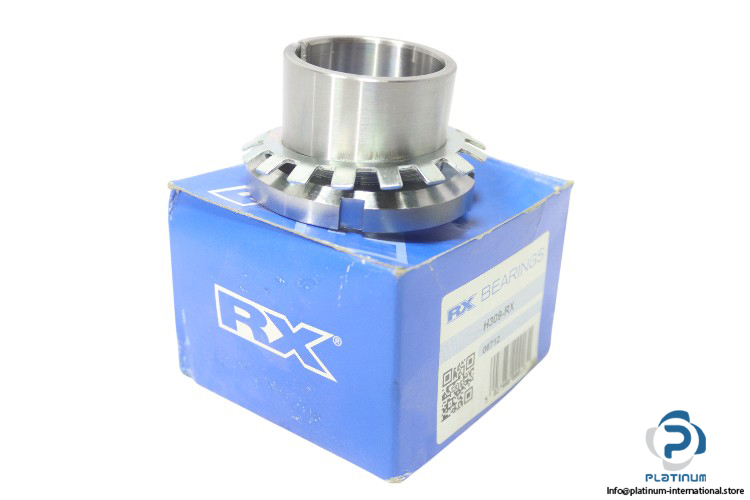

RX H 309 ADAPTER SLEEVE
The RX H 309 adapter sleeve is engineered for secure and precise mounting of bearings with a tapered bore onto cylindrical shafts. Designed with robust threading and standard taper dimensions, it ensures reliable shaft alignment and load transmission in industrial settings.
Manufacturer: RX
Type: Adapter Sleeve
Model: H 309
Technical Information
- Bore Diameter d1: 40 mm
- Outside Diameter Small Taper d: 45 mm
- Outer Diameter Lock Nut d3: 65 mm
- Sleeve Length B1: 39 mm
- Width Lock Nut Including Lock Washer B4: 11 mm
- Thread G: M45x1.5
- External Taper: 1:12
