SKF HE210 Adapter Sleeve
Manufacturer: SKF
Type: Adapter sleeve H
Model: HE 210

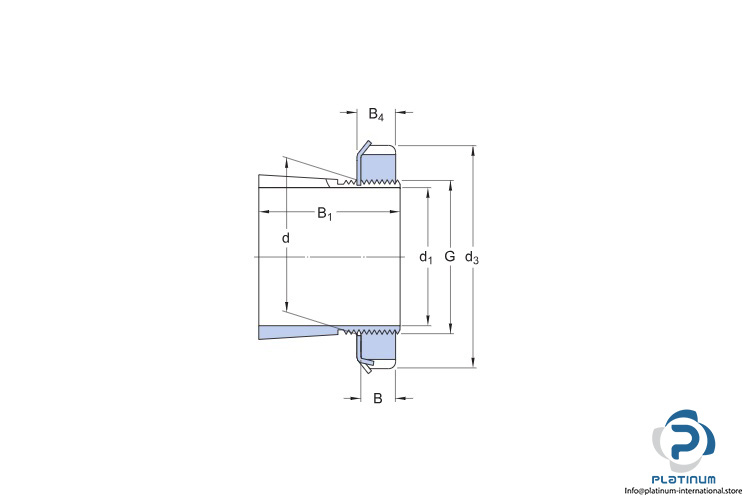

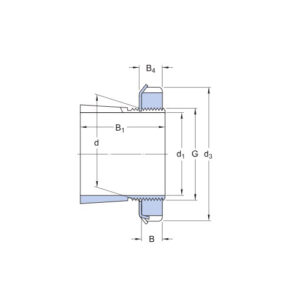

Dimensions:
Bore Diameter d1: 44.45 mm
Outside diameter small taper d: 50 mm
Outer diameter lock nut d3: 70 mm
Width lock nut B: 11 mm
Width B1: 35 mm
Width lock nut including lock washer: 12 mm
Thread G: M 50×1.5
External taper: 1:12
