FAG H211 Adapter Sleeve
Manufacturer: Schaeffler FAG
Type: Adapter sleeve H
Model: H 211

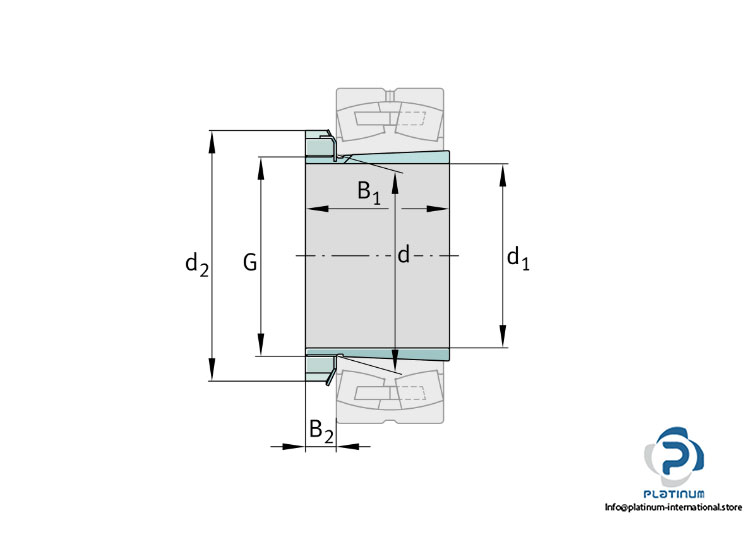

Dimensions:
Bore Diameter d1: 50 mm
Sleeve length B1: 37 mm
Bore diameter bearing d: 55 mm
Outer diameter nut d2: 75 mm
Width nut and lock B2: 12.5 mm
Thread G: M55x2
Taper: 1:12
Locknut: KM11
Lock washer: MB11
