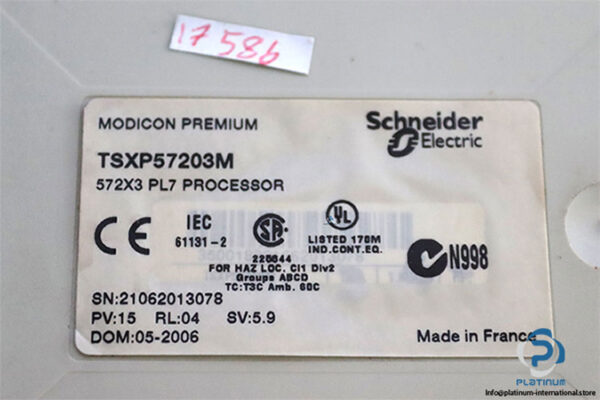

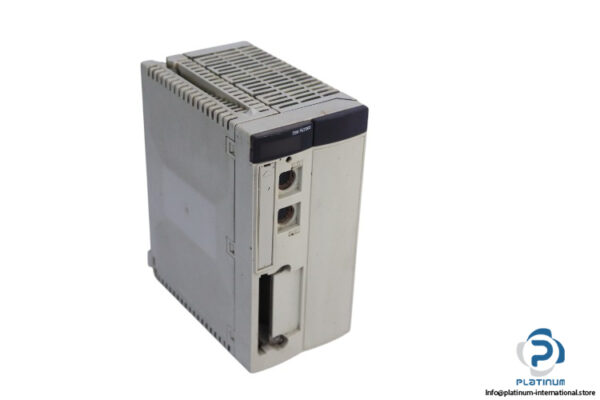

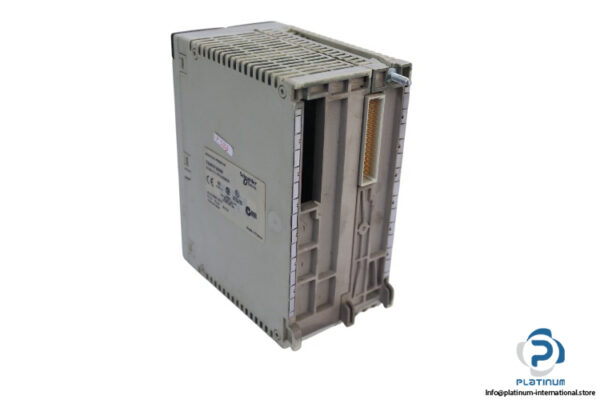

Schneider Electric Double-Format PL7 Processor TSXP57203M
The Schneider Electric TSXP57203M is a high-performance double-format PL7 processor, part of the Modicon Premium Automation Platform. Designed for robust industrial automation, it supports a variety of I/O capacities, integrated communication options, and reliable operation under harsh conditions.
🔧 Technical Specifications:
- Manufacturer: Schneider Electric
- Type: Double-Format PL7 Processor
- Model: TSXP57203M
- Range: Modicon Premium Automation Platform
- Software Designation: PL7 Junior/Pro
- Discrete I/O Processor Capacity: 1024 I/O
- Analogue I/O Processor Capacity: 80 I/O
- Application-Specific Channels: 24
- Process Control Channels: 10 (up to 30 simple loops)
- Integrated Connection Type: Non-isolated serial link, 2 female mini-DIN connectors
- Communication Module Processor Capacity:
- 1 fieldbus module (none if CANopen used)
- 1 network module
- 4 AS-Interface bus modules
- 1 CANopen
- Current Consumption: 750 mA at 5 V DC
- Operating Temperature: 0 to 60 °C
- Degree of Protection: IP20
