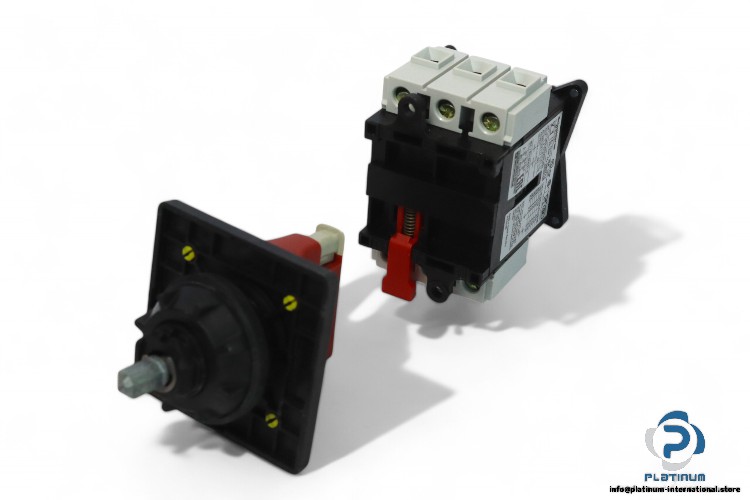

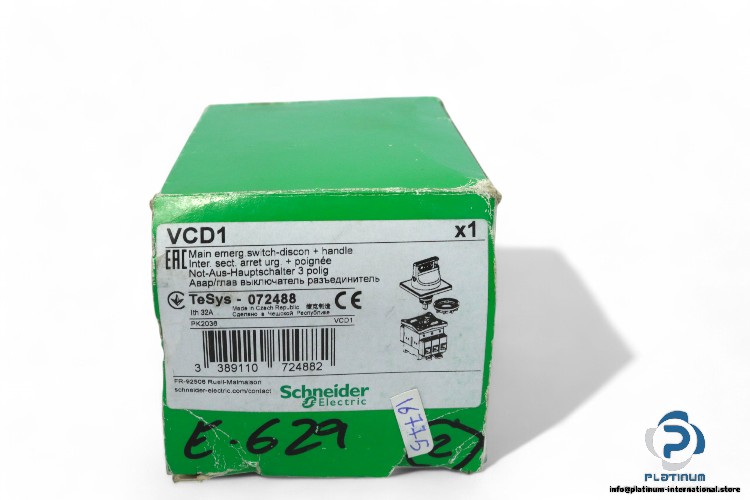

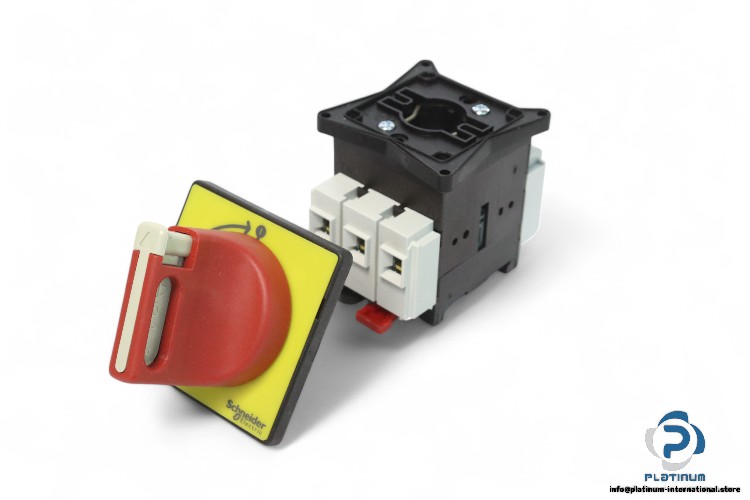

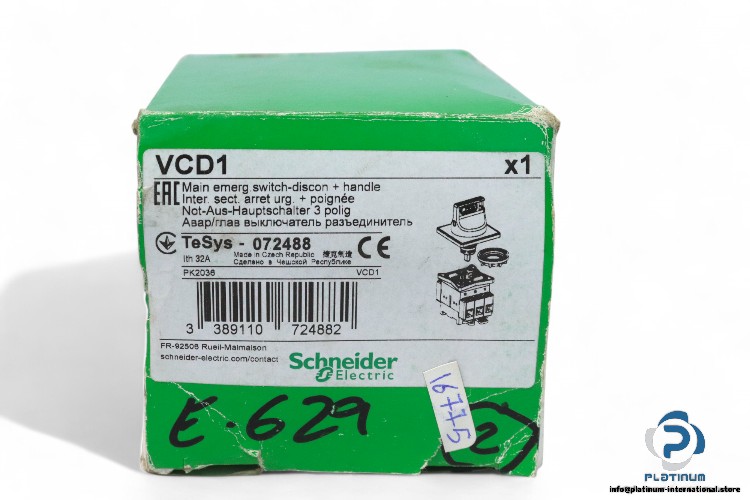

Schneider VCD1 Circuit Breaker
3-pole circuit breaker with 690V AC, 32A thermal current, and IP65 protection. Ideal for industrial power distribution and motor control.3-Pole32A690VBreakerCircuitControlCurrentDistributionElectricalHeavy-DutyIndustrialIP65motorPowerSchneiderSwitchThermalVCD1
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Schneider VCD1 Circuit Breaker
The Schneider VCD1 Circuit Breaker offers reliable and efficient performance for industrial power distribution and motor control applications. With a rated operational voltage of up to 690V AC and multiple power ratings for various operational scenarios, this 3-pole circuit breaker is ideal for heavy-duty usage. Its advanced design ensures durability and safety in demanding environments.
- Manufacturer: Schneider
- Type: Circuit Breaker
- Model: VCD1
- Part No.: 072488
- Specifications:
- Device Composition: Switch Handle
- Mounting Support: Handle door, Switch door
- Mounting Method Hole: 0.9 in (22.5 mm) handle

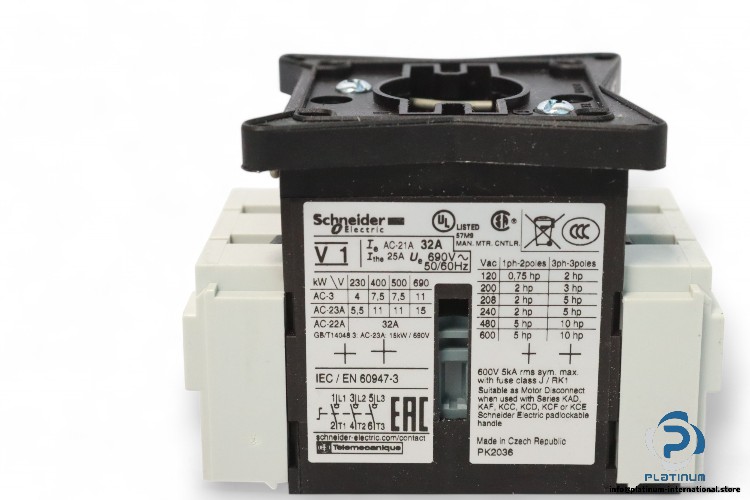

- Rated Operational Voltage: 690V AC, 50“60 Hz
- IEC Rated Operational Power in W:
- 11 kW at 500 V, AC-23A
- 15 kW at 690 V, AC-23A
- 7.5 kW at 500 V, AC-3
- 7.5 kW at 690 V, AC-3
- 1.5 kW at 230…240 V, AC-3
- 5.5 kW at 230…240 V, AC-23A
- 11 kW at 400…415 V, AC-23A
- 7.5 kW at 400…415 V, AC-3
- Rated Operational Current (Ie): 11A at AC-23A, 400 V
- Thermal Current Conventional Free Air (Ith): 32 A
- Number of Poles: 3P
- Contact Type and Composition: 3 NO
- Degree of Protection: IP20, IP65
- Operation Temperature: -20 / 50 °C
- Dimension (H x W): 74 x 60 mm
- Features:
- Robust design for industrial environments
- High thermal and operational current ratings
- Multiple mounting and switching options
- Enhanced protection with IP20 and IP65 ratings
- Applications: Industrial motor control, power distribution, and heavy machinery operations.
