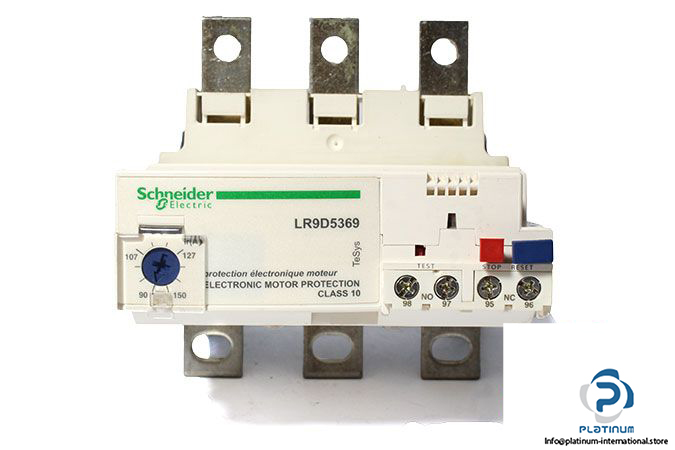

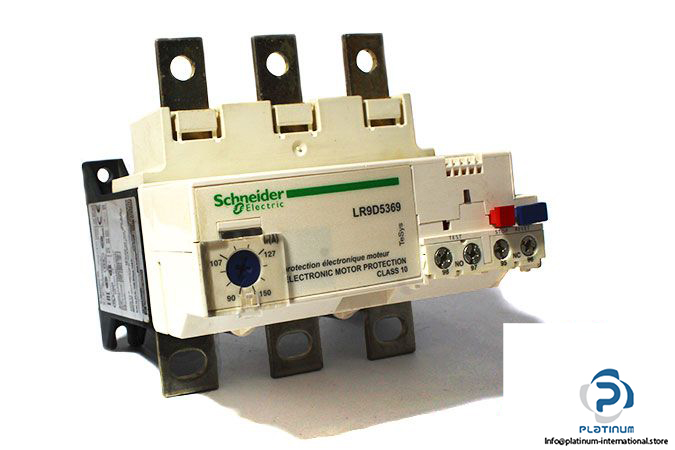

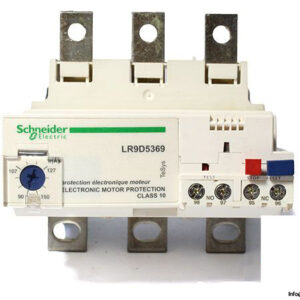

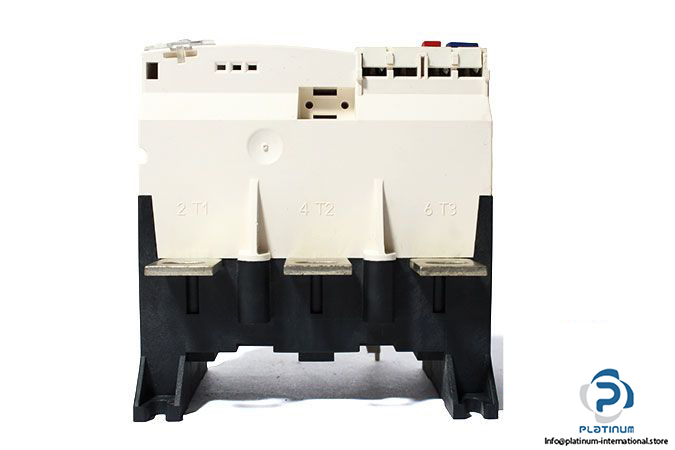

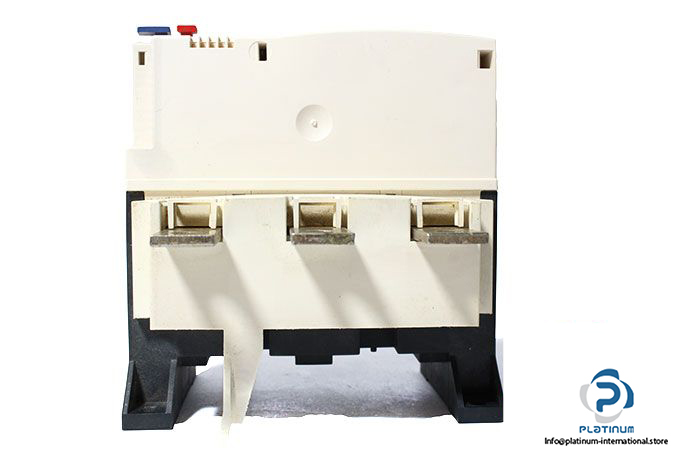

Manufacturer: Schneider

Type: Electronic Thermal Overload Relay

Range: Tesys

Model: Tesys LRD

Part No.: LR9D5369

Relay Application: Motor Protection

Product Compatibility:

NSX Circuit Breaker

LC1D150

LC1D115

Number of Poles: 3

Rated Operational Current (I_e): 150 A

Protection Range: 90 … 150 A

Rated Operational Voltage (U_e): 690 V AC

Rated Supply Voltage (U_s): 24 V DC

Network Frequency: 50 … 60 Hz

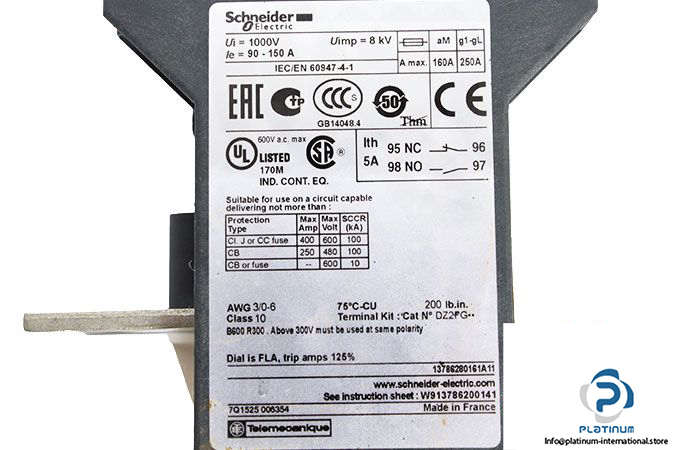

Rated Insulation Voltage (U_imp): 1000 V AC

Standards: IEC 60947-4-1 / EN 60947-4-1

Signalling Function: Alarm

Protection Class: IP20

Dimensions (W x D x H): 114 X 122 X 117 mm

Operation Ambient Temperature: -20 … 60 °C

Weight: 0.66 kg
