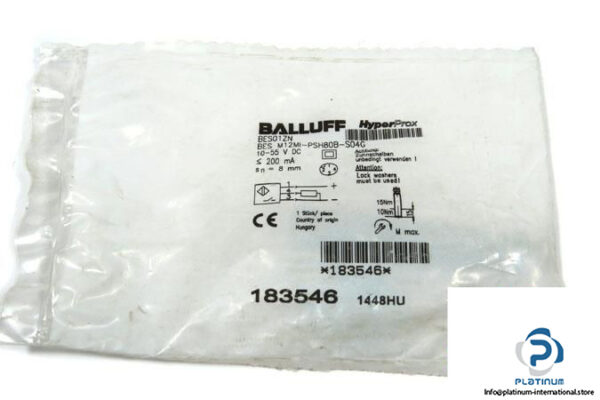

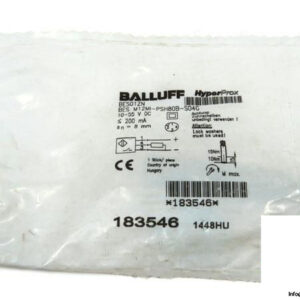

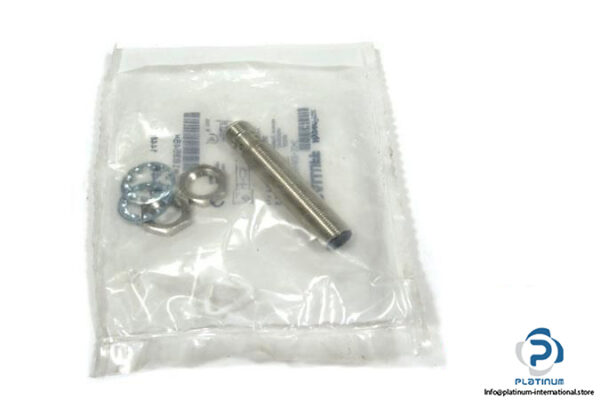

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order Code: BES01ZN

MRN: BES M12Mi-PSH80B-SO4G

Sensing range: 8 mm

Rated operating voltage: 10 … 55 VDC

Load current capacity: 200 mA

Switching frequency: 300 Hz

Electrical design: PNP

Switching output: Normally open

Housing material: Nickel plated Brass

Enclosure rating: IP67

Connection type: M12 Connector, 4-pin

Ambient operating temperature: 0 … 60°C

Mounting: Quasi-flush mountable

Diameter, Housing length: 12, 65 mm
