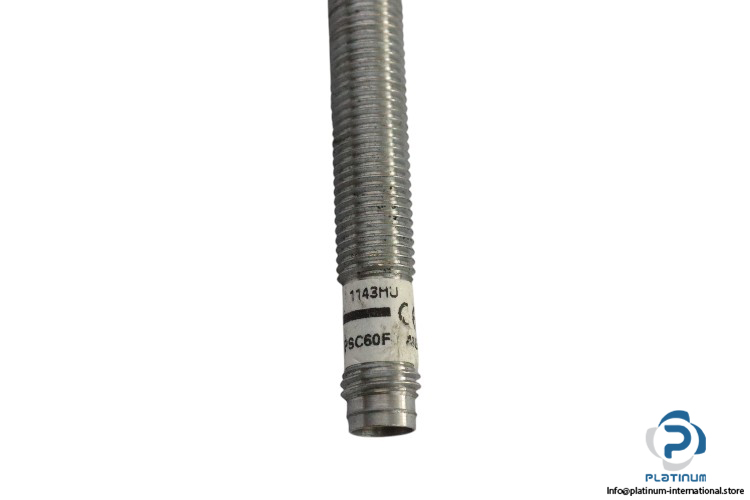

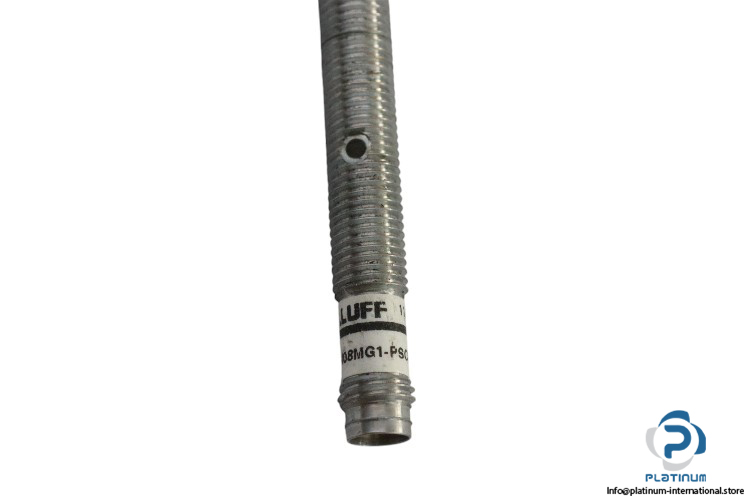

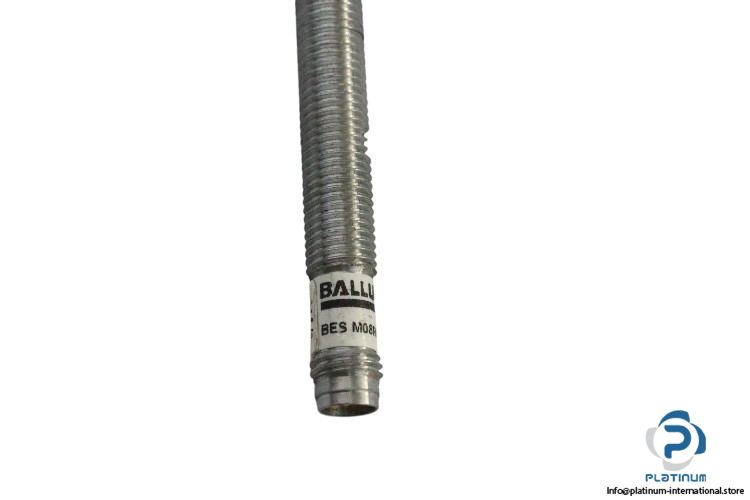

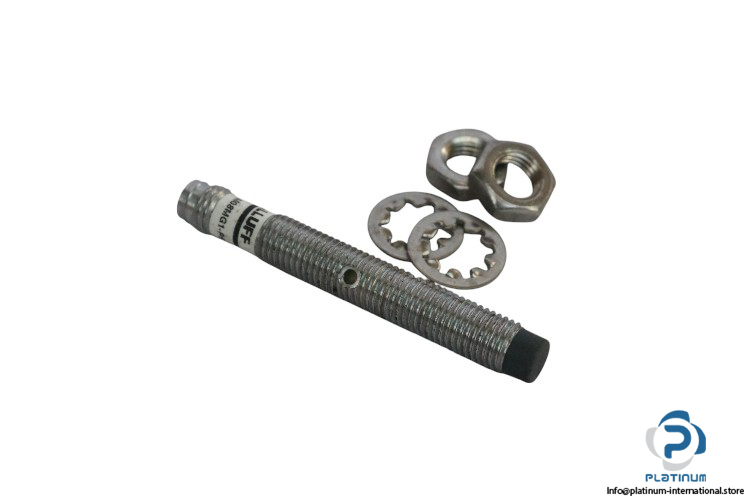

Balluff BES M08MG1-PSC60F-S49G Inductive Sensor
The Balluff BES M08MG1-PSC60F-S49G Inductive Sensor features a 6mm sensing range, PNP output, and IP67 protection, perfect for fast and reliable metal detection in industrial applications.
Balluff BES M08MG1-PSC60F-S49G Inductive Sensor
The Balluff BES M08MG1-PSC60F-S49G Inductive Sensor is designed to provide precise metal object detection in industrial applications. With a sensing range of 6mm and an operating voltage range of 10-30 V DC, this PNP inductive sensor delivers reliable performance for a variety of automation tasks. Its robust CuZn housing and IP67 enclosure ensure protection against dust and water, making it ideal for harsh environments. The sensor’s easy integration is further supported by its M08x1-S49 connector type and mounting length of 41 mm.
- Manufacturer: Balluff
- Type: Inductive Sensor
- Model: BES M08MG1-PSC60F-S49G
Technical Specifications:
- Sensing Range: 6mm
- Operating Voltage: 10…30 V DC
- Rated Insulation Voltage (Ui): 75V DC
- Effective Operating Current (Ie): 200 mA
- Electrical Design: PNP
- Switching Output: Normally open
- Rated Short Circuit Current: 100 A
- Connection Type: Connector
- Connector Type: M08x1-S49
- Degree of Contamination: 3
- Tightening Torque: 4 Nm
- Mounting Length: 41 mm
- Housing Material: CuZn
- Tolerance Sr: ±10%
- Switching Frequency (f max.): 500 Hz
- Ready Delay (tv max.): 50 ms
- Enclosure Type: IP67
- Ambient Temperature: -25…70 °C
- Metal Thread: M8 x 1
The Balluff BES M08MG1-PSC60F-S49G Inductive Sensor is designed to withstand tough industrial conditions while ensuring fast and reliable detection. With its high switching frequency, robust construction, and IP67 rating, it is suitable for use in a wide range of industrial applications that demand durability and precision.
