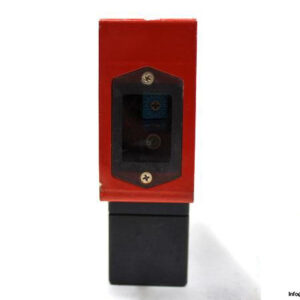

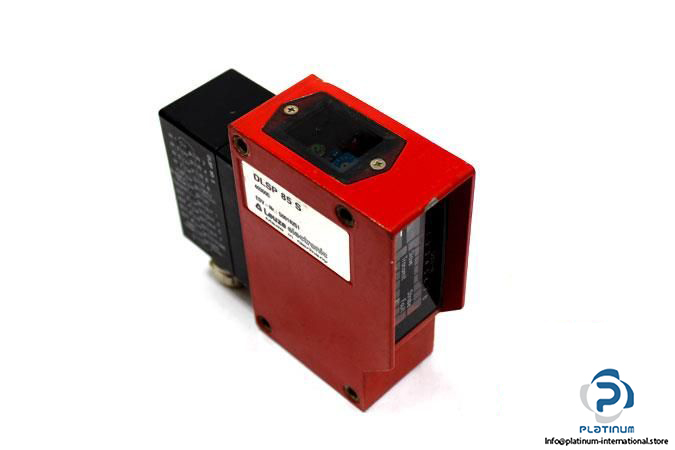

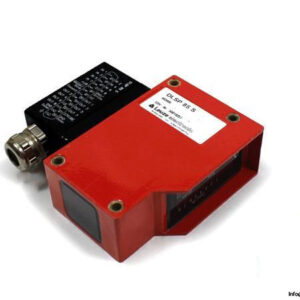

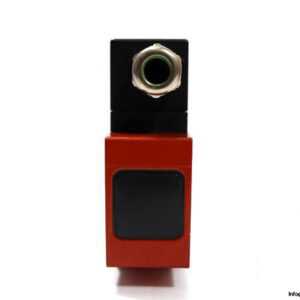

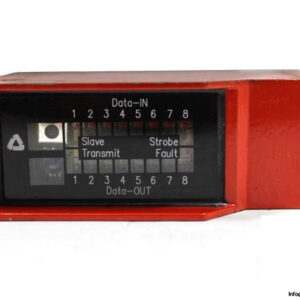

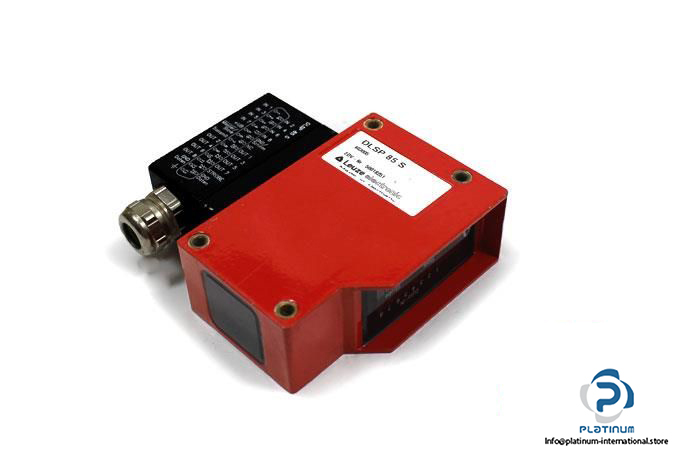

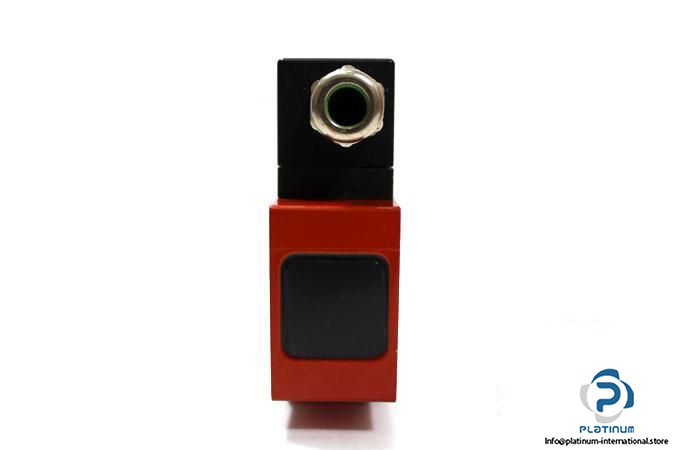

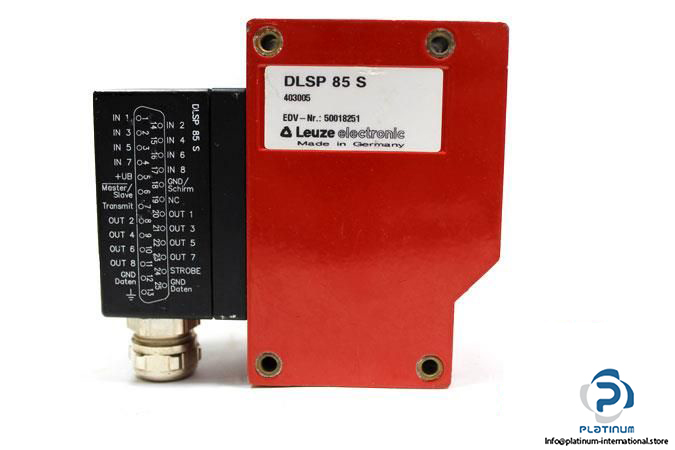

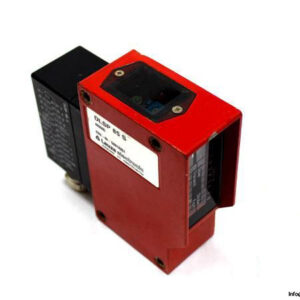

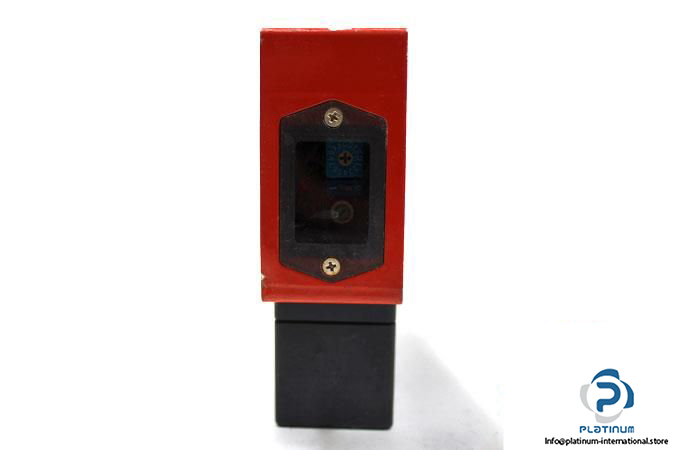

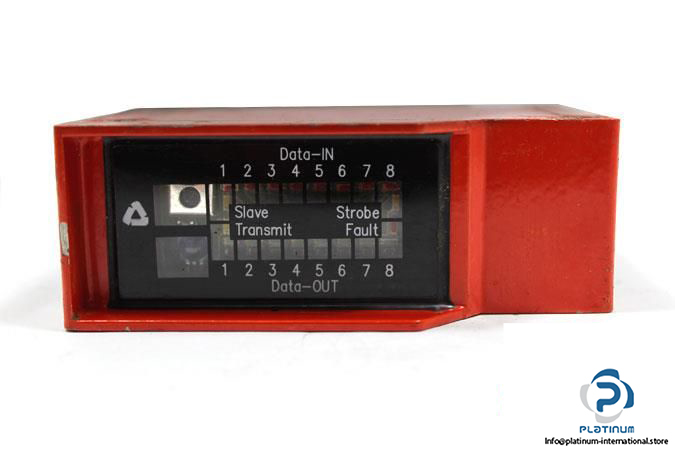

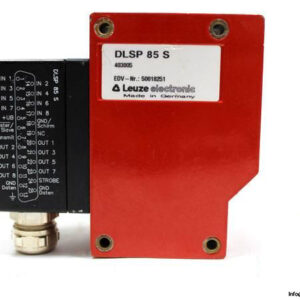

Manufacturer: LEUZE

Type: OPTICAL PARALLEL DATA TRANSMITTER

Order Code: DLSP 85 S

The DLSP 85S is an optical data communication system with bidirectional data transmission

Application: The main application focus is on data exchange in the field of conveyor technology

Sensing range: 1.5 m

Operating Voltage: 16 … 40 V DC

Ripple: 15%

Power consumption: 3.4 W

Input: Master/slave

Number of inputs: +8 parallel data inputs

Data inputs: 8 to 40 V (high), minus UB to + 2.5 V (low)

Data outputs: Data outputs UB – 2.5 V (high), less than 0.5 V (low)

Type of light: Infrared light

Adjustment: Potentiometer

Connector type: Plug

Ambient Operating temperature: -20 … 50 °C

Dimensions: 36 x 112 x 100 mm

Housing: Rectangular

Housing material: Metal

Condition: Used
