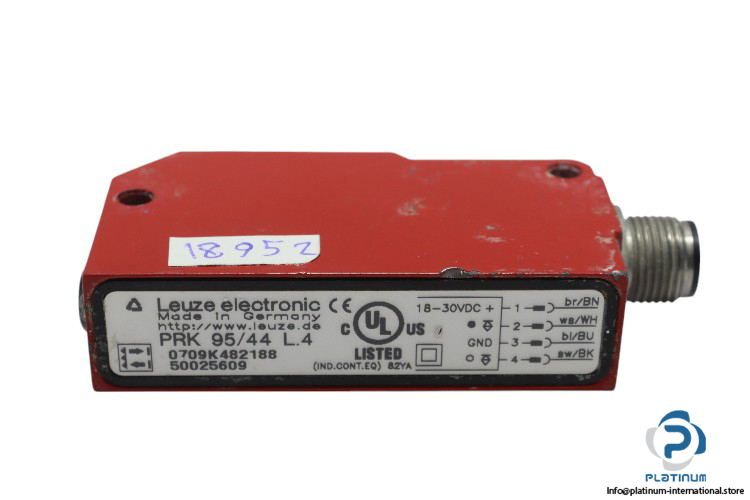

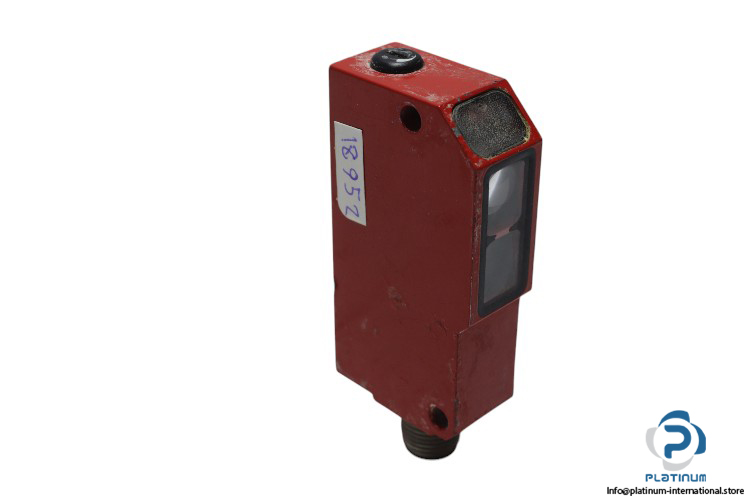

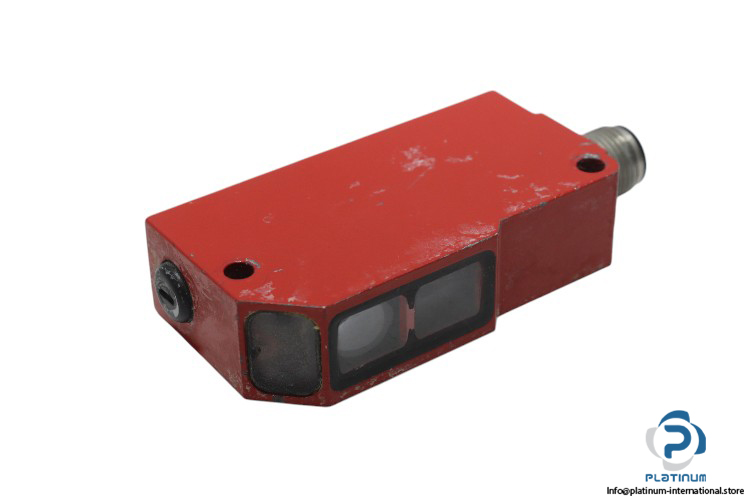

Leuze PRK 95/44 L.4 Polarized Retro-Reflective Photoelectric Sensor
Polarized Retro-Reflective Photoelectric Sensor
The Leuze PRK 95/44 L.4 Polarized Retro-Reflective Photoelectric Sensor features a 660 nm red laser light, 18-30 V DC voltage range, and 0 to 35 mA open-circuit current. With an M12 male connector, stainless steel housing, and IP67 protection, it’s ideal for detecting transparent bottles, films, and glass panes.Leuze PRK 95/44 L.4 Polarized Retro-Reflective Photoelectric Sensor
The Leuze PRK 95/44 L.4 Polarized Retro-Reflective Photoelectric Sensor is designed for highly accurate detection applications, particularly in environments requiring the detection of highly transparent materials such as bottles, films, and glass panes. Operating on the reflection principle with a light switching function, this sensor uses a wavelength of 660 nm for precise detection, even of objects that are difficult to detect with traditional sensors.
With a rated voltage of 18 to 30 V DC, this sensor offers reliable performance with an open-circuit current of 0 to 35 mA. The sensor is equipped with a PNP transistor switching element and uses a 4-pin M12 male connector for easy installation and integration into industrial systems. Constructed with a stainless steel housing and metal material, the Leuze PRK 95/44 L.4 offers both durability and robustness in demanding industrial environments.
Designed to operate in a wide temperature range of -25 to 60°C, this sensor is ideal for use in various industrial applications that require high accuracy and reliability. The PRK 95/44 L.4 provides an ideal solution for detecting transparent objects in packaging lines, glass manufacturing processes, and other automation systems.
Manufacturer: Leuze
Type: Polarized Retro-Reflective Photoelectric Sensor
Model: PRK 95/44 L.4
Part Number: 50025609
The Leuze PRK 95/44 L.4 Polarized Retro-Reflective Photoelectric Sensor offers high-performance detection capabilities, particularly for transparent materials, and is built to withstand the rigors of industrial environments.
| Series | 95 |
| Rated Voltage | 18 to 30 V DC |
| Open-circuit Current | 0 ... 35 mA |
| Switching Element | Transistor, PNP |
| Type of Connection | Connector |
| Thread Size | M12 |
| Switching Principle | Light switching |
| Operating Principle | Reflection principle |
| Application | Detection of highly transparent bottles, films, and glass panes |
| Wavelength | 660 nm |
| Material | Stainless steel |
| Number of Pins | 4-pin |
| Housing Material | Metal |
| Ambient Temperature, Operation | -25 to 60 °C |
| Dimensions (W x H x L) | 17 mm x 66 mm x 35 mm |
