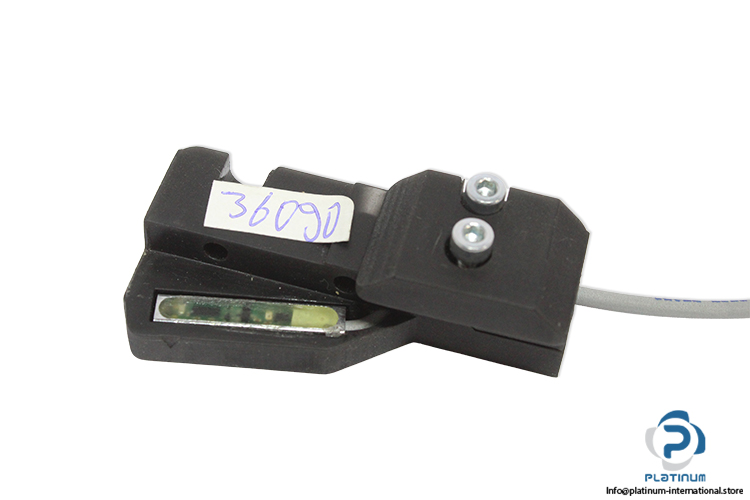

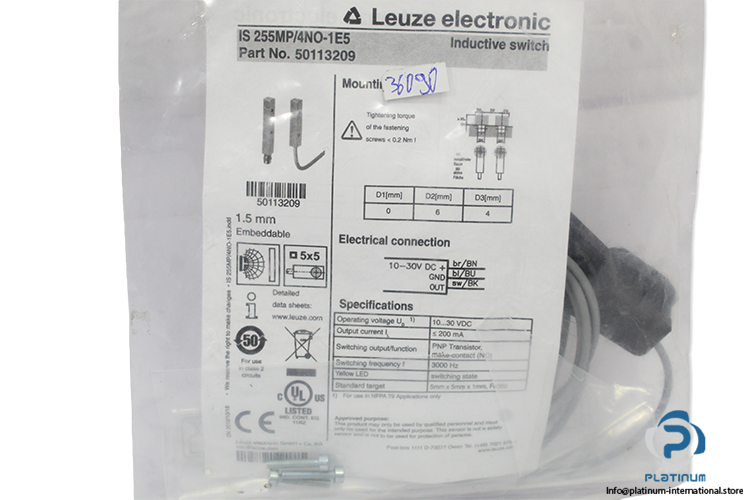

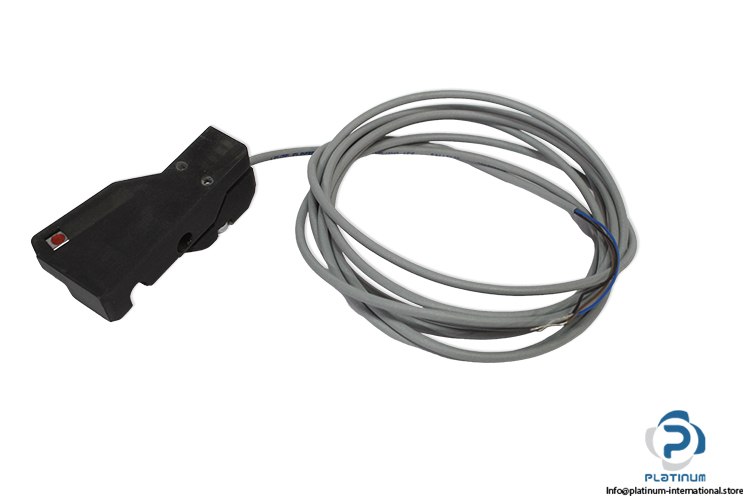

Leuze IS 255MP/4NO-1E5 Inductive Switch

In stock1 unitReady to ship

Inductive Switch

LEUZE IS 255MP/4NO-1E5 inductive switch with 1.5 mm sensing range, PNP NO output, 10“30 V DC supply, IP67 protection, and compact cubic metal housing.

Manufacturer
LEUZE
SKU
1095622
Category
Sensors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.50113209
Series255
Type, Operating Range Limit (Sn)1.5 mm
Operating Range (Sa)0 ... 1.2 mm
MTTF870 years
Protective CircuitInductive Protection, Polarity Reversal Protection, Short Circuit Protected
Supply Voltage (UB)10 ... 30 V DC
Residual Ripple0 ... 20 % From UB
Open-Circuit Current0 ... 10 mA
Temperature Drift (Max.)10 % Of Sr Over Entire Operating Temperature Range
Repeatability (Max.)2 % Of Sr For UB = 20 / 30 V DC, Ta = 23 °C ± 5 °C
Switching Hysteresis10 %
Number Of Digital Switching Outputs1 Piece
Voltage TypeDC
Switching Current (Max.)200 mA
Residual Current (Max.)0.1 mA
Voltage Drop‰¤ 2 V
Switching ElementTransistor, PNP
Switching PrincipleNO (Normally Open)
Switching Frequency3,000 Hz
Readiness Delay10 ms
FunctionSignal OUT, Voltage Supply

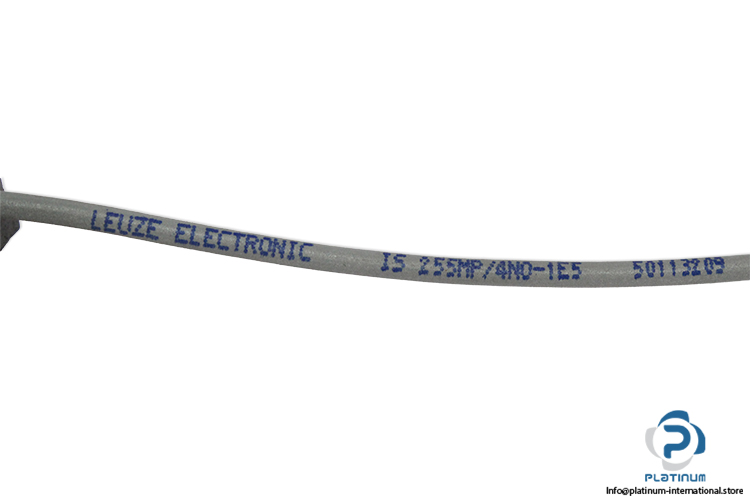

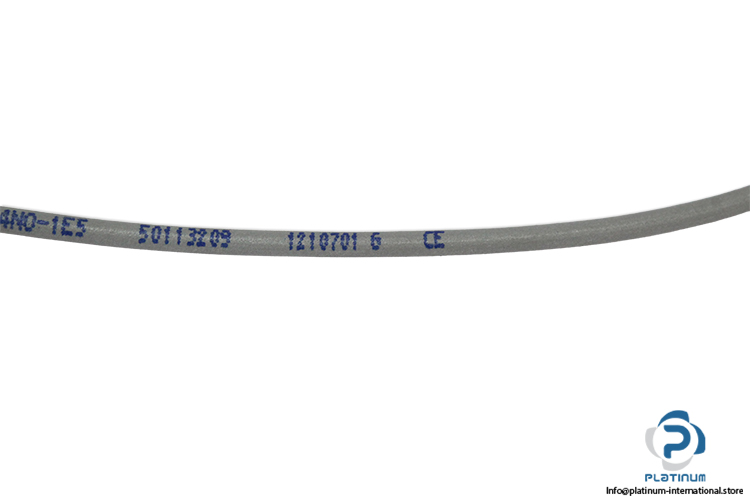

Type Of ConnectionCable
Cable Length2,000 mm
Sheathing MaterialPUR
Cable ColorGray
Number Of Conductors3-Wire
Wire Cross Section0.055 mm²
DesignCubic
Dimensions (W x H x L)5 mm x 5 mm x 25 mm
Type Of InstallationEmbedded / Flush
Housing MaterialMetal
Metal HousingChromed Brass
Sensing Face MaterialPlastic, Polyester
Housing ColorRed (RAL 3000), Silver
Type Of FasteningThrough-Hole Mounting
Standard Measuring Plate5 x 5 mm², Fe360
Type Of DisplayLED
Number Of LEDs1 Piece
Ambient Temperature (Operation)-25 ... 70 °C
Ambient Temperature (Storage)-25 ... 70 °C
Degree Of ProtectionIP 67
Protection ClassIII
Approvalsc UL US
EMC Test StandardIEC 61000-4-2, IEC 61000-4-3
Suitable ForFor Illustration Purposes Only
ConditionNew
Stock KeyJO-004
