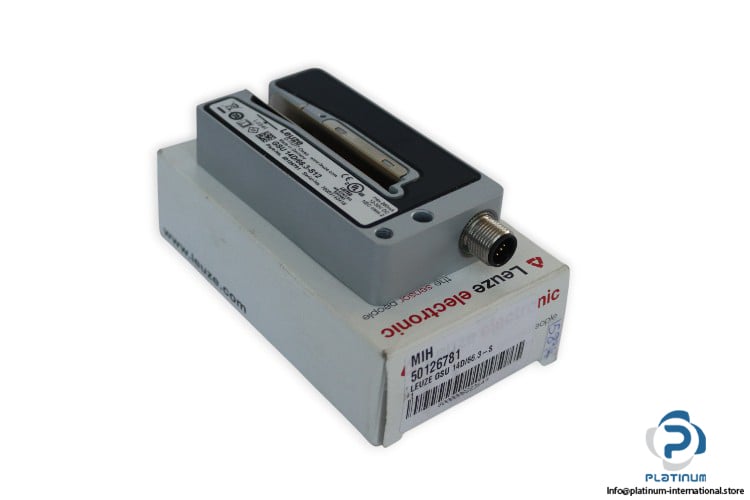

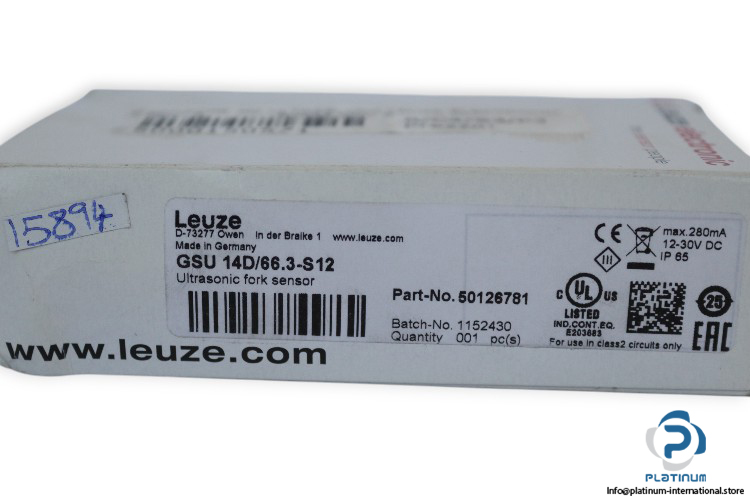

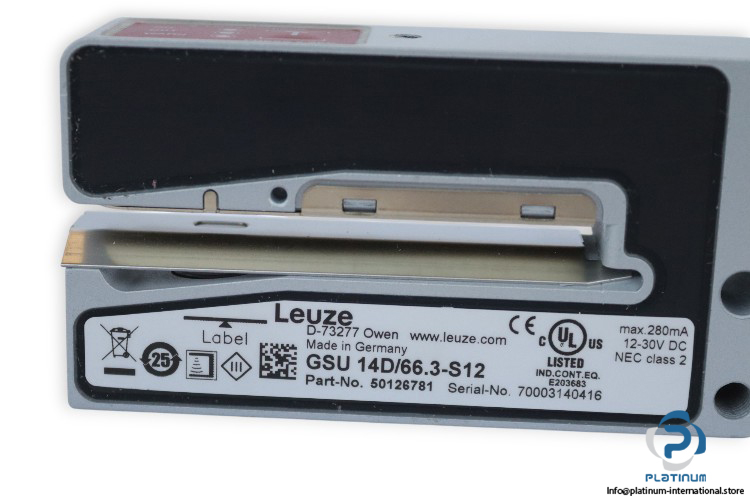

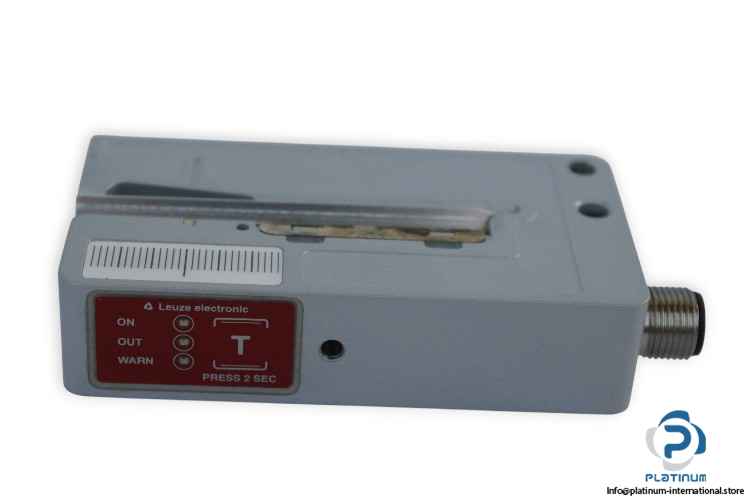

Leuze GSU 14D/66.3-S12 Fork Sensor

Manufacturer: LEUZE
Type: Fork Sensor
Model: GSU14D/66.3-S12
Part no.: 50126781

Supply voltage UB: 12 … 30 V, DC
Residual ripple: 0 … 15 %, From UB
Open-circuit current: 0 … 80 Ma
Type: Teach input
Voltage type: DC
Switching output 1
Switching element: Transistor, Push-pull
Switching principle: Switching signal in label gap
Switching output 2
Switching element: Transistor, Push-pull
Switching principle: Switching signal on label
Response time: 0.2 ms
Readiness delay: 300 ms
Max. conveyor speed during teach-in: 50 m/min
Switching voltage:
high: ≥8V
low: ≤ 2 V
Input resistance: 15,000 Ω
Load capacity: 0.5 µF

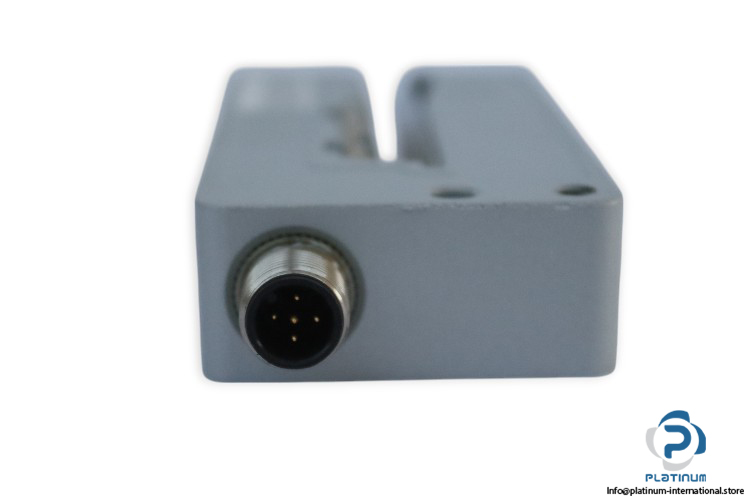

connection: Connector, M12, Male, Metal, 5 -pin
Dimension (W x H x L): 20.7 mm x 48.2 mm x 101 mm
Housing material: Metal
