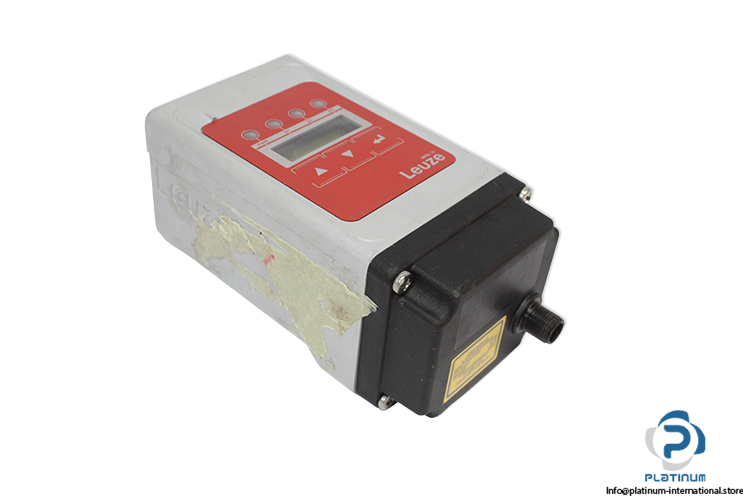

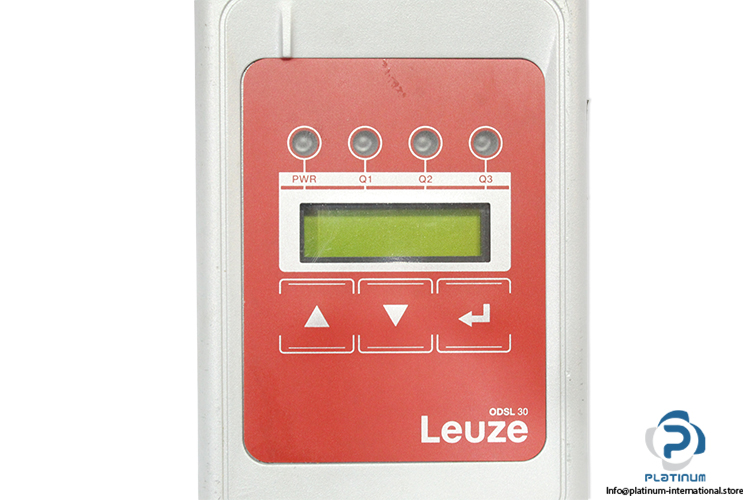

Leuze Odsl 30/D485-30M-S12 Optical Distance Sensor
Optical Distance Sensor
LEUZE ODSL 30/D485-30M-S12 laser distance sensor with RS 485 interface, programmable functions, up to 65,000 mm measurement range, IP67 protection, and high-precision performance for industrial applications.LEUZE ODSL 30/D485-30M-S12 Optical Distance Sensor
The LEUZE ODSL 30/D485-30M-S12 is a high-precision optical distance sensor designed for long-range measurement and industrial positioning applications. It features laser-based measurement technology with programmable functions and RS 485 interface communication, ensuring reliable performance in demanding environments.

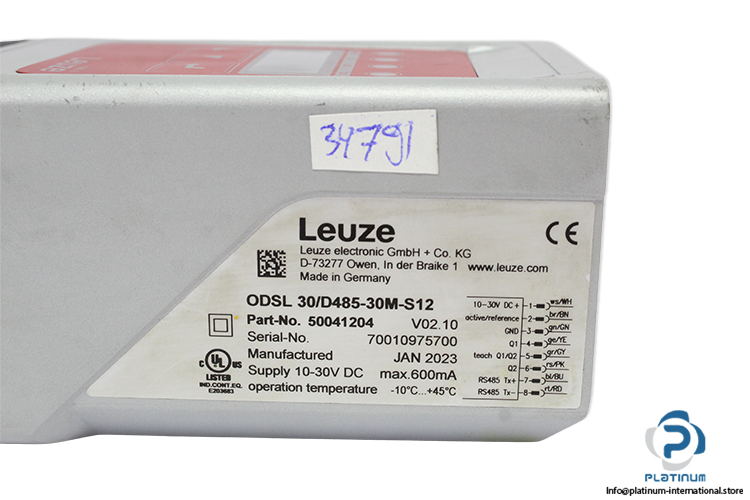

Manufacturer: LEUZE
Type: Optical Distance Sensor
Model: ODSL 30/D485-30M-S12
Part No.: 50041204
Version: V02.10
Serial No.: 70010975700
Series: 30
Electrical Specifications
Supply Voltage (UB): 10 … 30 V DC
Type: Digital Switching Input
Function: Programmable
Number Of Digital Switching Outputs: 2
Switching Power, Max.: 4 W
Response Time: 30 … 100 ms
Readiness Delay: 1,000 ms
Interface Type: RS 485

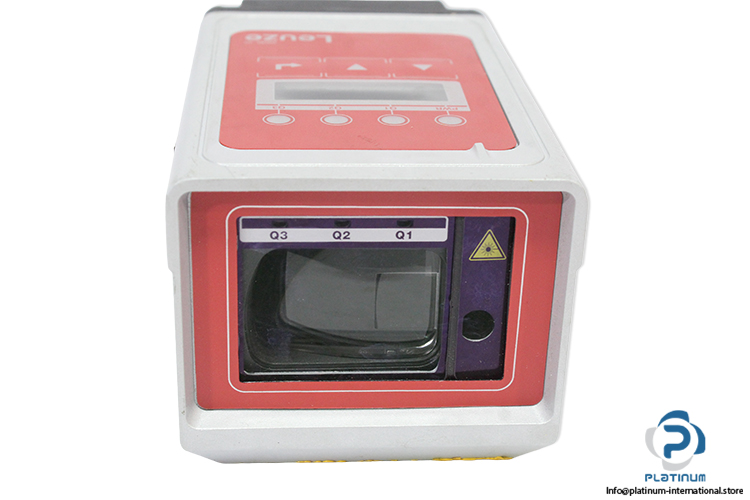

Optical Specifications
Type Of Scanning System: Against Object
Beam Path: Collimated
Light Source: Laser, Red
Wavelength: 655 nm
Laser Class: 2, IEC/EN 60825-1:2014
Transmitted-Signal Shape: Pulsed
Light Spot Size: 6 mm [At 10,000 mm]
Type Of Light Spot Geometry: Round
Measurement Performance
Measurement Range (6 / 90 % Diffuse Reflection): 200 … 30,000 mm
Measurement Range (90 % Diffuse Reflection): 200 … 65,000 mm
Resolution: 0.1 mm Display Resolution, Adjustable
Resolution: 1.0 mm
Accuracy: ±2 mm At 90% Diffuse Reflection / ±5 mm At 6% Diffuse Reflection
Reproducibility (3 Sigma): 2 mm
Temperature Drift: 0 … 0.5 mm/K
Mechanical Specifications
Dimension (W x H x L): 79 mm x 69 mm x 150 mm
Housing Material: Metal
Contains: Mounting Brackets

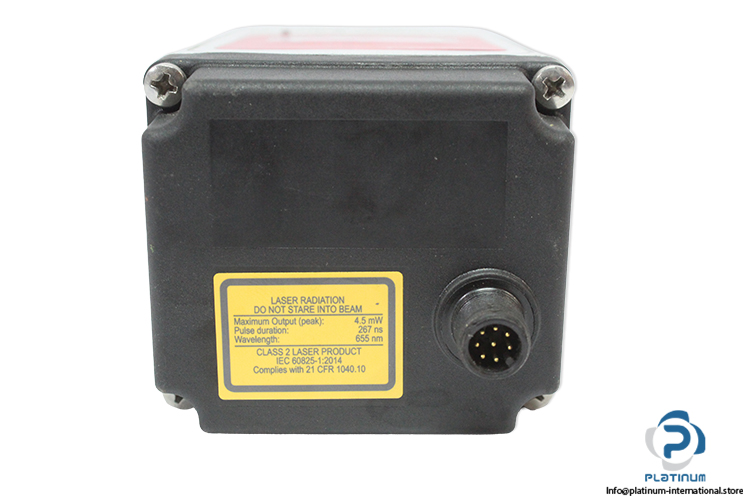

Connection Details
Type Of Connection: Connector
Thread Size: M12
Connector Type: Male
Material: Plastic
No. Of Pins: 8-Pin
Encoding: A-Coded
Environmental Specifications
Ambient Temperature, Operation: 0 … 45 °C
Operation Temperature: -10 … 45 °C
Degree Of Protection: IP 67
Protection Class: II
Applications
Collision Protection Of Cranes / Gantry Cranes
Fill-Level Monitoring
Length Measurement In Material Cutting
Positioning Of Skillet Systems And Side-Tracking Skates
Approvals And Standards
Approvals: c UL US
Standards Applied: IEC 60947-5-2
