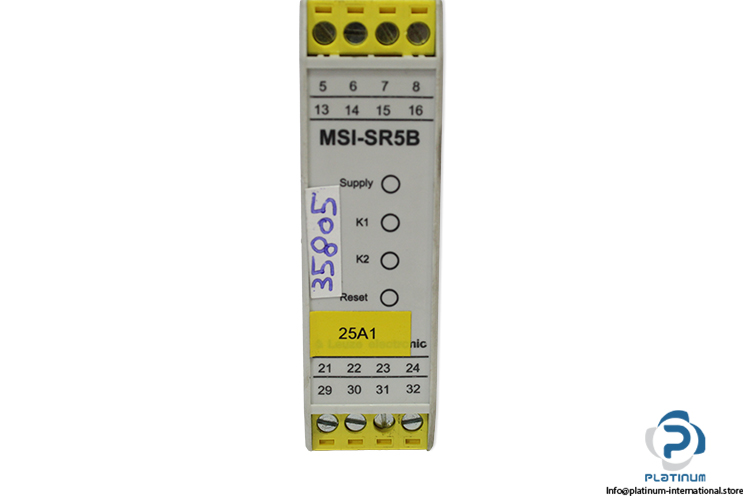

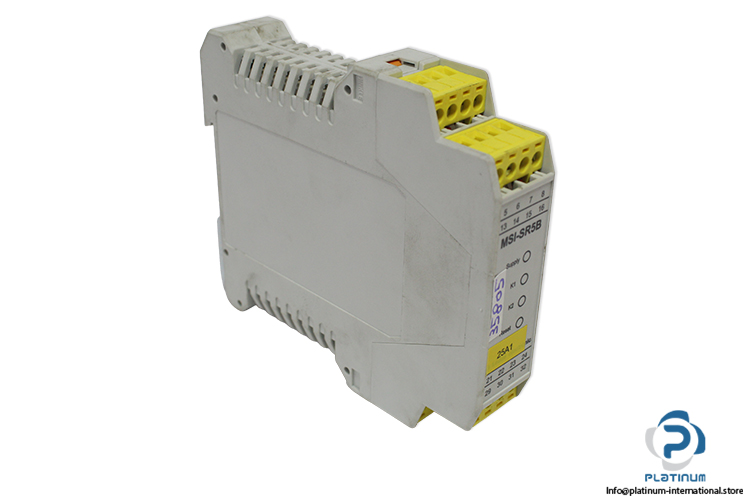

Leuze MSI-SR5B-01 Safety Relay
Safety Relay
LEUZE ELECTRONIC MSI-SR5B-01 safety relay with 24 V DC control voltage, dual NO safety contacts, and compliance with EN/IEC 60947-5-1 for industrial safety applications.LEUZE ELECTRONIC MSI-SR5B-01 Safety Relay
The LEUZE ELECTRONIC MSI-SR5B-01 is a high-performance safety relay designed for reliable monitoring and control of safety circuits in industrial automation systems. It provides dependable protection for E-Stop circuits and various safeguarding devices, ensuring compliance with industrial safety standards.

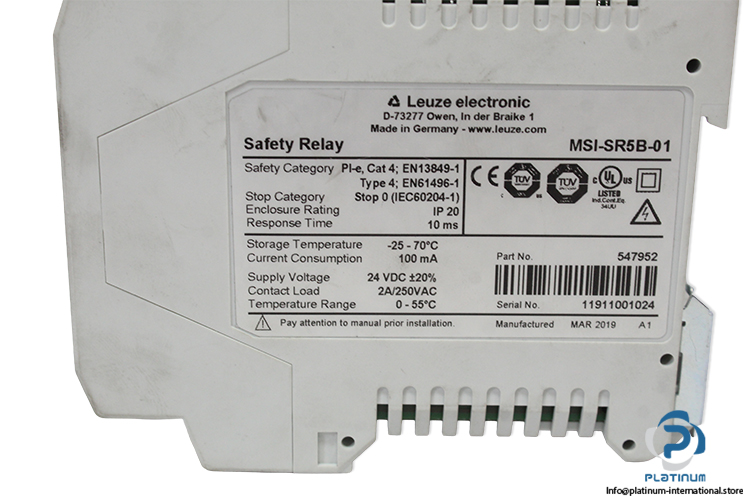

Manufacturer: LEUZE ELECTRONIC
Type: Safety Relay
Series: MSI-SR5B
Model: MSI-SR5B-01
Part No.: 547952
Serial No.: 11911001024
Switching Capacity Of OSSDs (According To EN/IEC 60947-5-1):
Applications
E-Stop Circuits
Optoelectronic Protective Devices
Position Switches (Mechanical Contacts)
Solenoid Switches (Reed Contacts, Equivalent)
Transponder Switches (OSSD Outputs)
| Power Consumption | 4.8 W |
| Current Consumption | 100 mA |
| Max. Input Current | 150 mA |
| Continuous Current Per Current Path, Max. | 2 A |
| External Safeguarding For Supply Circuit | 200 mA |
| Control Voltage At Inputs +S/-S | 24 V DC / 0 V |
| Control Current At +S/-S | 40 mA |
| Admissible Input Line Resistance | < 30 |
| Pickup Delay “ Manual Start | 50 ms |
| Pickup Delay “ Automatic Start | 350 ms |
| Time Window Between Two Channels Of A Sensor | < 60 ms |
| Regression Delay, Response Time | 10 ms |
| Max. Test Pulse Acceptance | 1 ms |
| Two Safety-Related NO Contacts AC-15 | 230 V / 5 A “ 1.6 Million Switching Cycles |
| DC-13 | 24 V / 3 A “ 1.3 Million Switching Cycles |
| Protection Class | Housing IP 40, Terminals IP |
| Temperature Range, Operation | 0 / 55 °C |
| Dimensions | 114 x 99 x 22.5 mm |
| Switching Element | Relay, NO |
| Switching Element | Relay, NO |
