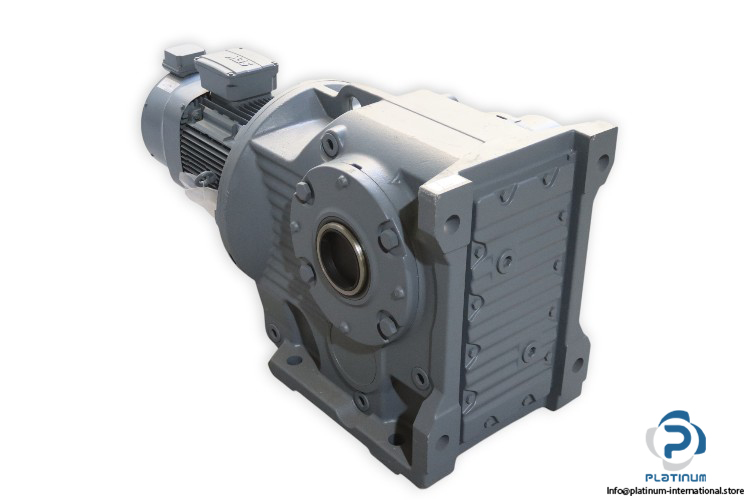

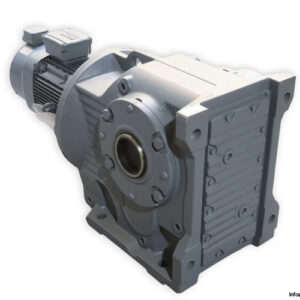

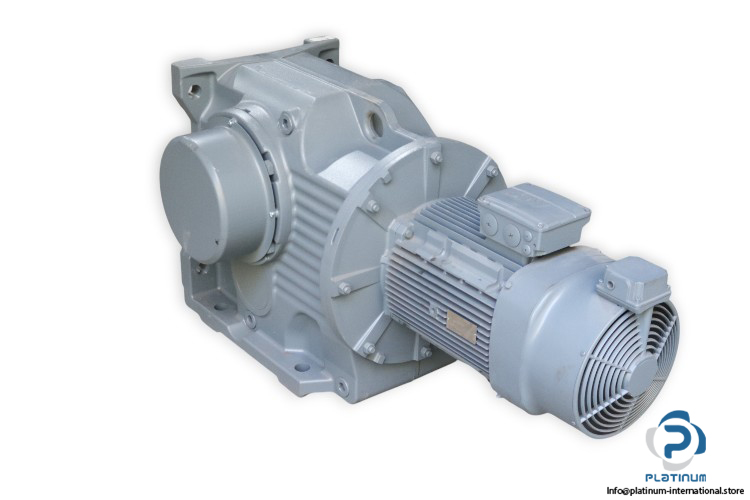

SEW KA157B DRN225M4/BE32HR/TH/EG7S/DH/DUE Bevel-Helical Gearmotor

The SEW KA157B DRN225M4/BE32HR/TH/EG7S/DH/DUE is a heavy-duty bevel-helical gearmotor designed for industrial applications requiring high torque and reliable performance. With robust construction, efficient power transmission, and integrated braking and thermal protection, this unit is engineered for continuous operation in demanding environments.

Manufacturer: SEW
Type: Bevel-Helical Gearmotor

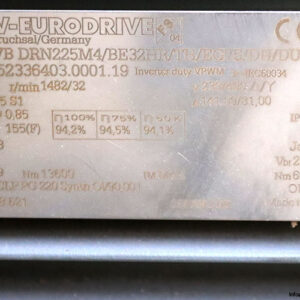

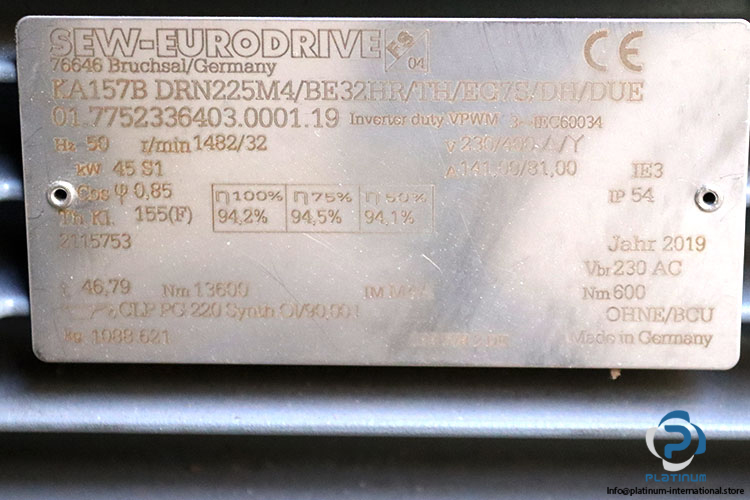

Model: KA157B DRN225M4/BE32HR/TH/EG7S/DH/DUE
Part No.: 01.7752336403.0001.19
Code: 2115753

Technical information

• Size: 225
• Length: Medium
• No. of Poles: 4
• Temperature Protection: Thermostat (bimetallic switch)
• Speed [r/min]: 1482/32
• Total Ratio [i]: 46.79
• Torque [Nm]: 13,600
• Power [kW]: 45
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor: S1
• Motor Voltage [V]: 230/400 Delta/Star
• Nominal Current [A]: 141 / 31
• Cos Phi: 0.85
• Thermal Class / Enclosure [IP]: 155 F / 54
• Brake Voltage [V] / Torque [Nm]: 230 AC / 600
• Lubrication: CLP PG:220 Synth:01/90.00L

Attachment

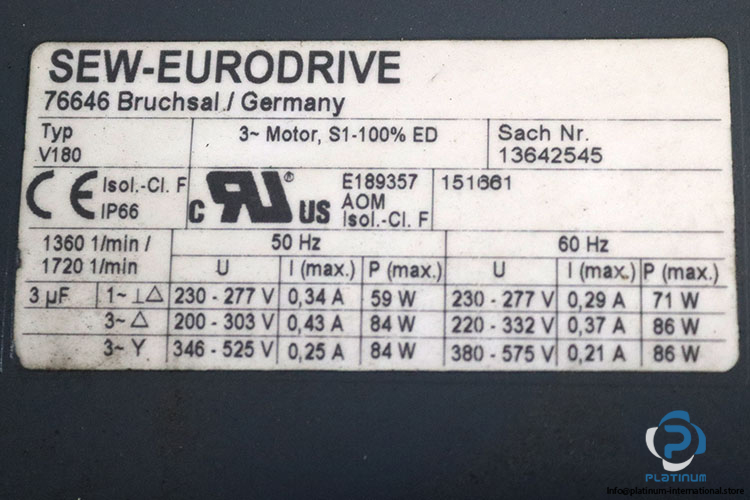

SEW-EURODRIVE V180 FAN Motor
Sach Nr.: 13642545 / 151661

Rated Speeds

• 1360 rpm (50 Hz)
• 1720 rpm (60 Hz)

Capacitor

• 3 µF

50 Hz Operation

• 1~ 230 to 277 V, 0.34 A, 59 W
• 3~ 200 to 303 V, 0.43 A, 84 W
• 3~ 346 to 525 V, 0.25 A, 84 W

60 Hz Operation

• 1~ 230 to 277 V, 0.29 A, 71 W
• 3~ 220 to 332 V, 0.37 A, 86 W
• 3~ 380 to 575 V, 0.21 A, 86 W

Additional Specifications

• Insulation Class: F
• Protection Class: IP66
• Duty: S1 “ 100% ED
