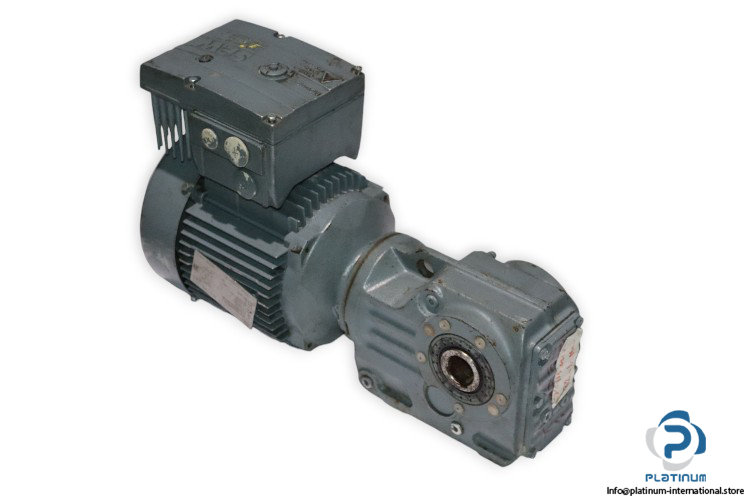

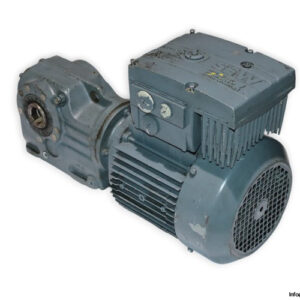

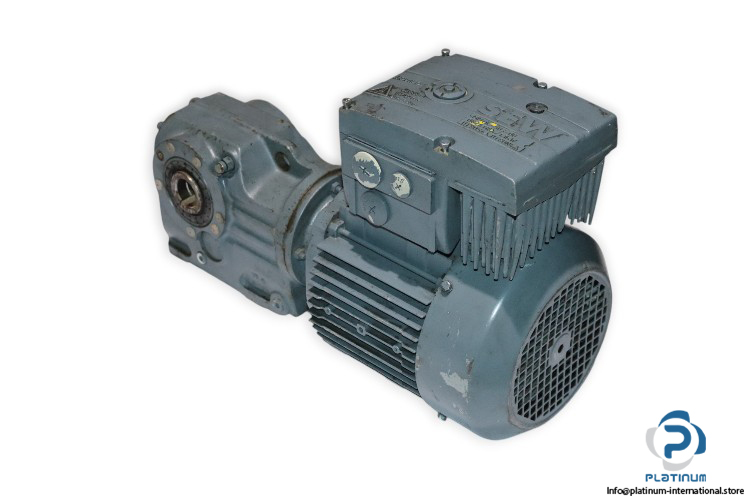

SEW Bevel-Helical GearMotor KA37 DT90S4/MM11/BW1 with MOVIMOT Inverter Drive
The SEW KA37 DT90S4/MM11/BW1 Bevel-Helical GearMotor is a high-performance drive solution engineered for demanding industrial applications. It offers smooth power transmission, high torque, and precision speed control with the integrated SEW MM11C-503-00 MOVIMOT Inverter Drive, ensuring efficient operation.
Key Features and Specifications:

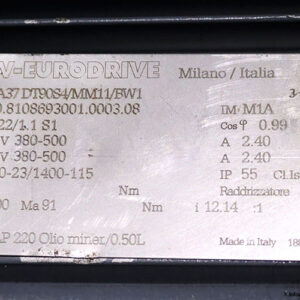

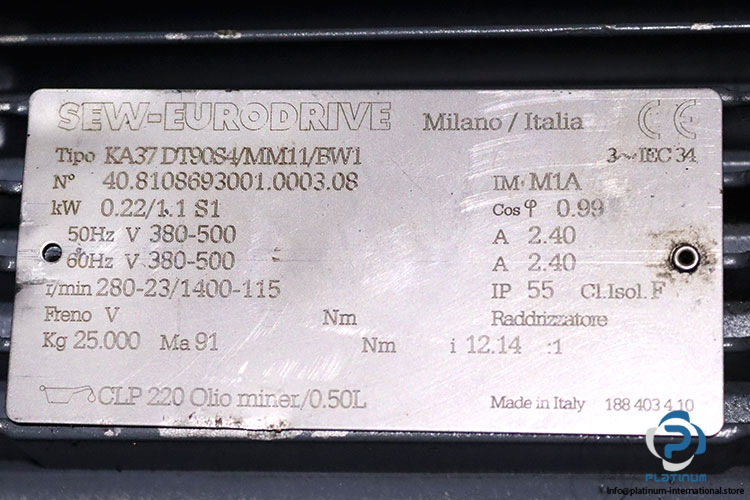

GearMotor:
- Manufacturer: SEW
- Type: Bevel-Helical GearMotor
- Model: KA37 DT90S4/MM11/BW1
- Part No.: 40.8108693001.0003.08
- Gear Unit: KA37
- Input Speed: 280 – 1400 rpm
- Output Speed: 23 – 115 rpm
- Total Ratio: 12.14 / Infinite
- Output Torque: 91 Nm
- Service Factor SEW-FB: 1.75
- Mounting Position: M1A
- Hollow Shaft Diameter: 30 mm
- Motor Power: 0.22 / 1.1 kW
- Motor Frequency: 50 Hz
- Cyclic Duration Factor: S1
- Multi Range Voltage (50 Hz): 380 – 500 V
- Multi Range Voltage (60 Hz): 380 – 500 V
- MM Rated Main Current: 2.40 A
- MM Rated Output Current: 3.20 A
- Thermal Class / Enclosure: F / IP55

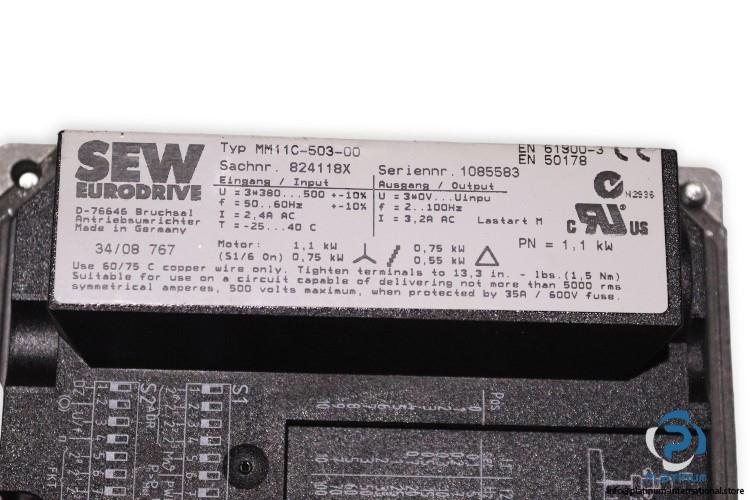

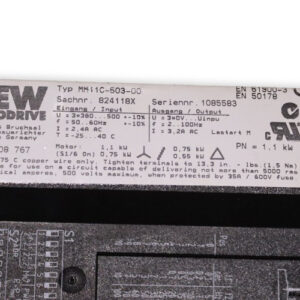

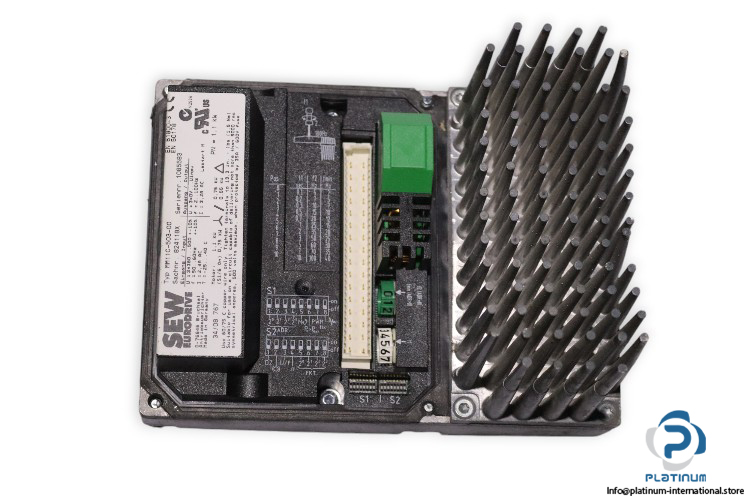

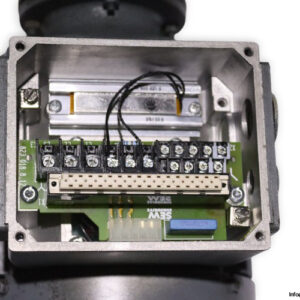

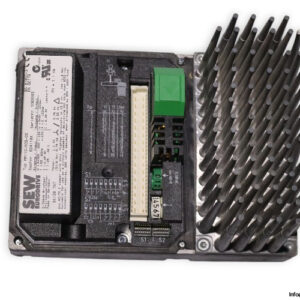

Attached SEW MM11C-503-00 MOVIMOT Inverter Drive:
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 2.4 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 3.2 A
- Frequency: 2 / 100 Hz
With its integrated MOVIMOT inverter drive, the SEW KA37 DT90S4/MM11/BW1 provides precise control over speed and torque, making it an excellent choice for automation, conveyor systems, and industrial motion control applications.
