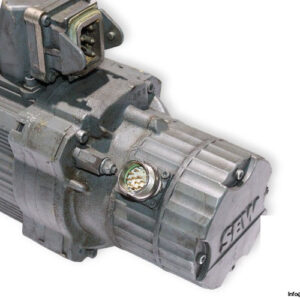

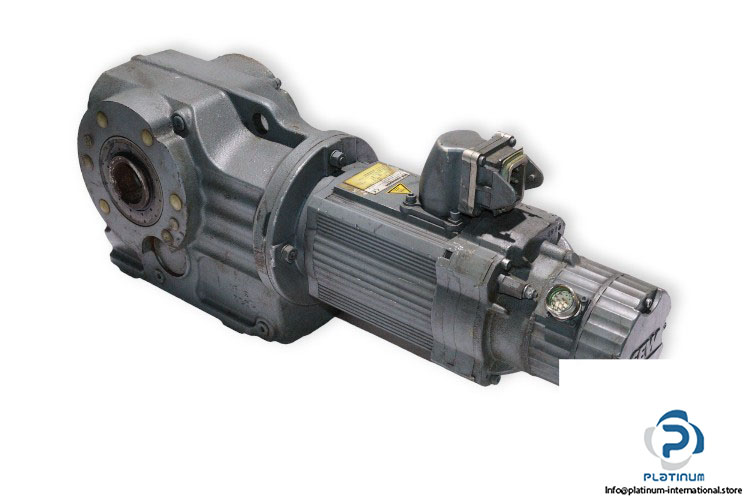

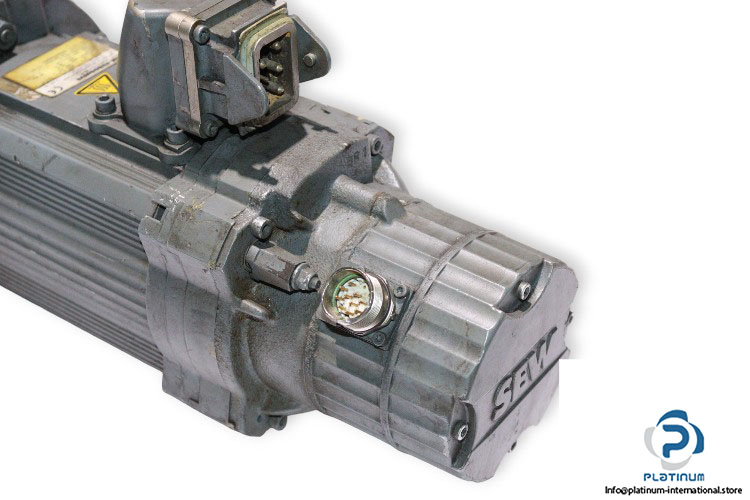

SEW KA 57/T CM71S/BR/TF/AS1H/SB50 HELICAL BEVEL GEARMOTOR
This high-performance SEW Helical Bevel Gearmotor with a hollow shaft is engineered for demanding applications requiring precision, strength, and efficiency. Built to IEC standards, it features a powerful motor, robust gearing, and integrated encoder and brake systems.
Manufacturer: SEW
Type: Helical Bevel Gearmotor with hollow shaft
Model: KA 57/T CM71S/BR/TF/AS1H/SB50
Part Nr: 01.1564872701.0001.07

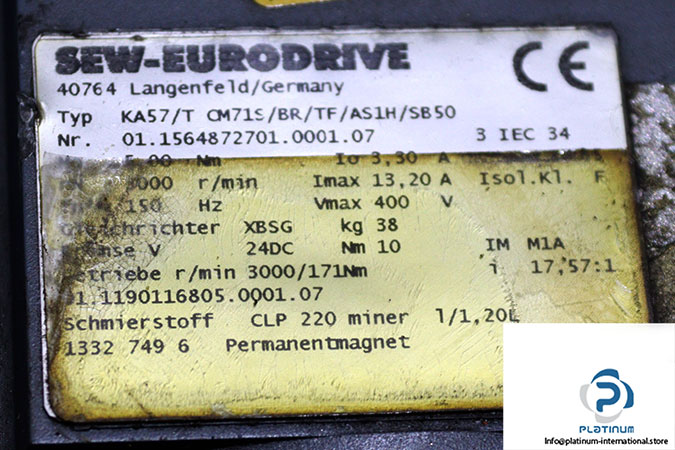

Technical Information
- Motor Size: 71
- Gear Unit: KA 57/T
- Speed Class: 3000 r/min
- Torque at Standstill: 5 Nm
- Standstill Current: 3.30 A
- Max. Current: 13.20 A
- Max. Voltage: 400 V
- Frequency: 150 Hz
- Mounting Position: M4A
- Insulation Class: F
- Standards: 3 IEC 34
- Gear Type (R): Helical Gear Unit with hollow shaft
- Gear Unit Size: 57
- Ratio: 17.57
- Gear Output Speed: 171 r/min
- Motor Speed: 3000 r/min
- Oil: CLP 220 Miner. 1/1.20 L
- Brake Voltage: 24 VDC
- Brake Torque: 10 Nm
- TF: Thermistor (PTC Resistor)
- Encoder: AS1H, Absolute Encoder Multiturn
- Plug Connector: SB50
