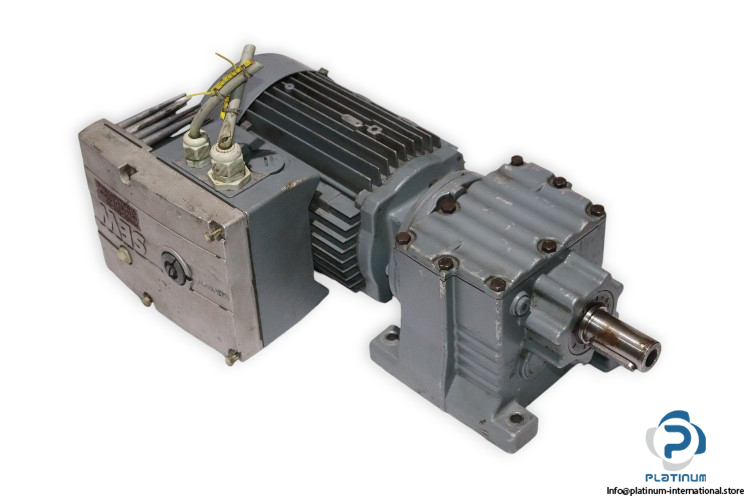

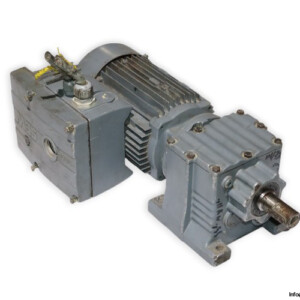

SEW R27 DT80K4/MM05/BW1 Helical-Gearmotor
The SEW R27 DT80K4/MM05/BW1 Helical-Gearmotor is designed for reliable and efficient power transmission in industrial applications. With a robust gear unit, adjustable output speeds, and an integrated MOVIMOT inverter drive, this gearmotor ensures high performance and operational flexibility.
Manufacturer: SEW
Type: HELICAL-GEARMOTOR

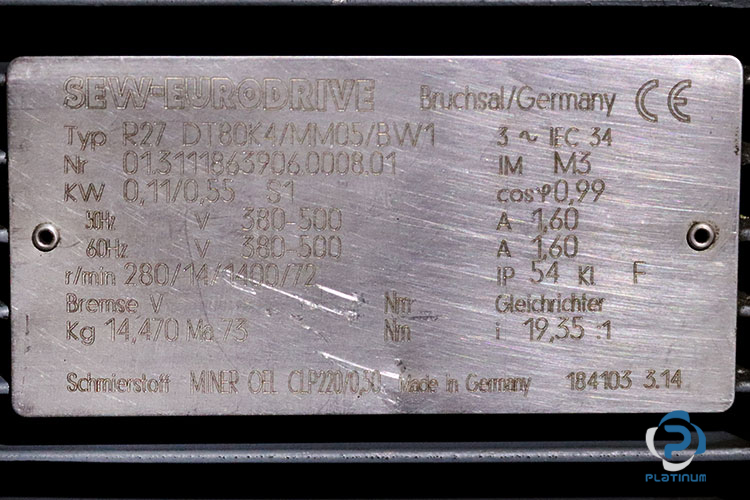

Model: R27 DT80K4/MM05/BW1
Part No.: 01.3111863906.0008.01
Technical Information:
- Gear Unit: R27
- Speed 50Hz [r/min]: 280 – 1400
- Output Speed [r/min]: 14 – 72
- Total Ratio: 19,35
- Output Torque [Nm]: 73
- Service Factor SEW-FB: 0,00 / 1,80
- Mounting Position: M3
- Lubricant Volume [l]: 0,50
- Output Shaft End: 25x50mm lg.
- Motor Power [kW]: 0.11 / 0.55
- Motor Frequency [Hz]: 50
- Cyclic Duration Factor S1-S10: S1
- Multi Range-Voltage 50Hz [V]: 380-500
- Multi Range-Voltage 60Hz [V]: 380-500
- MM Rated Main Current [A]: 1,60
- MM Rated Output Current [A]: 2,00
- Thermal Class [°C] / Enclosure [IP]: F / 54

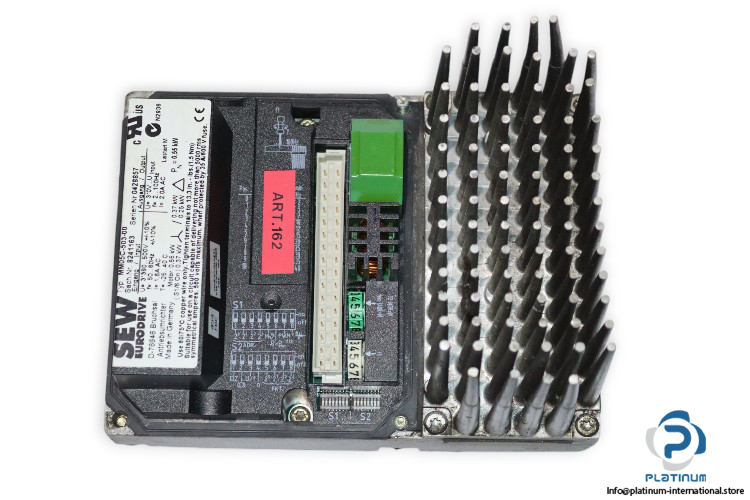

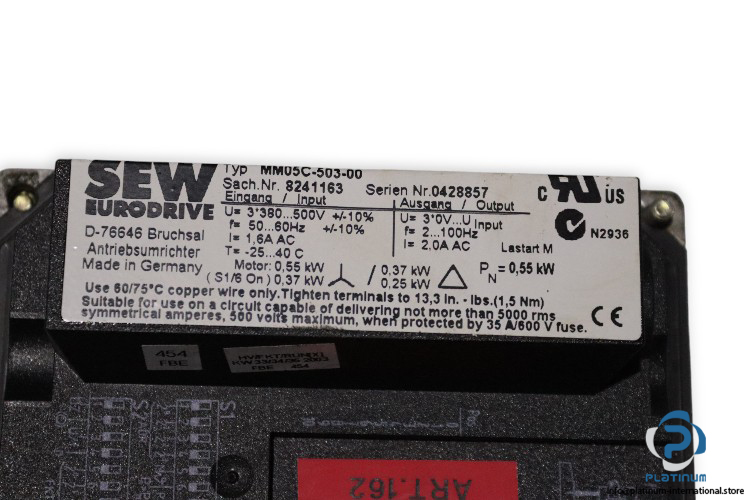

Attached with: SEW MM05C-503-00 MOVIMOT Inverter Drive
Input:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 50 / 60 Hz
Output:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 2 A
- Frequency: 2 to 100 Hz
Designed for precision and durability, this SEW helical-gearmotor with an integrated MOVIMOT inverter drive is an optimal solution for various industrial power transmission applications.
