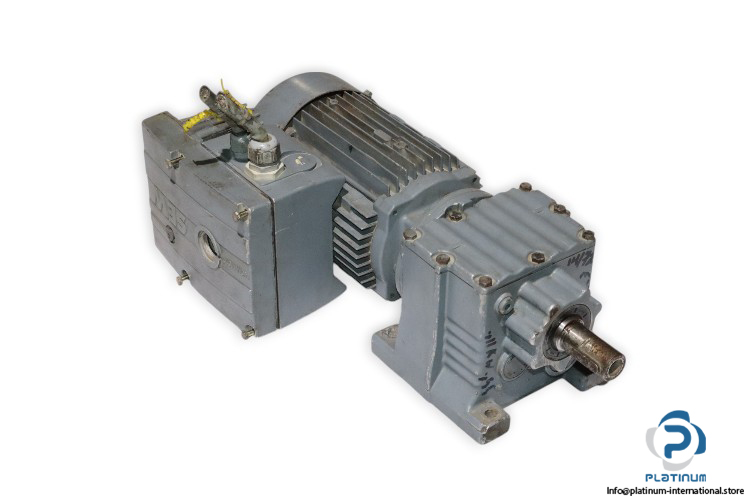

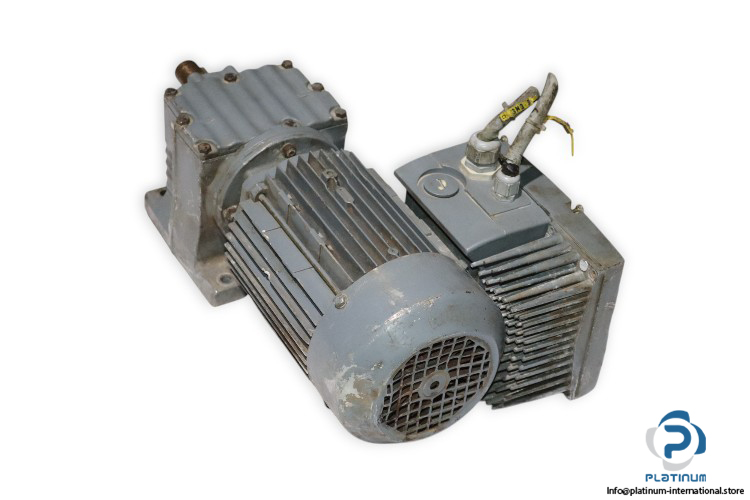

SEW R27 DT80K4/MM05/BW1 Helical-Gearmotor

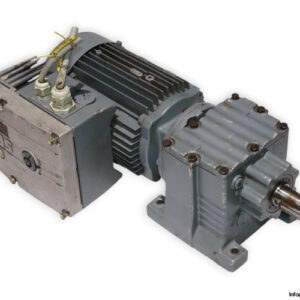

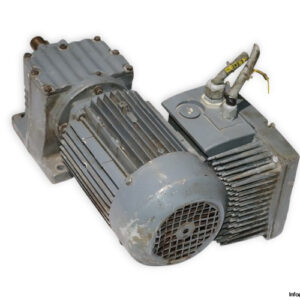

SEW R27 DT80K4/MM05/BW1 Helical Gearmotor with MOVIMOT Inverter Drive

The SEW R27 DT80K4/MM05/BW1 Helical Gearmotor is a highly efficient and reliable drive system, designed for industrial applications requiring precise torque and speed control. Paired with the SEW MM05B-503-00 MOVIMOT Inverter Drive, this system provides seamless motor control and energy efficiency.

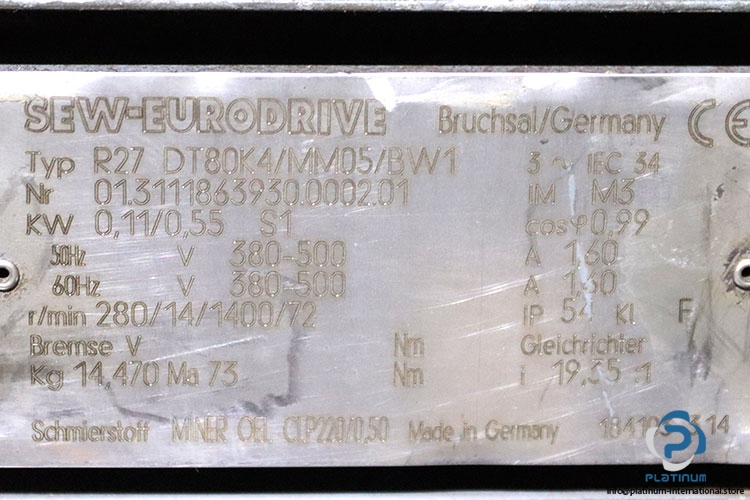

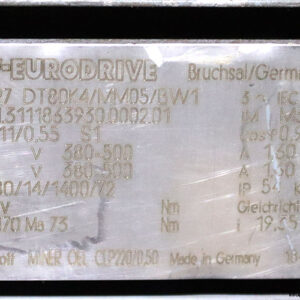

Gearmotor Specifications:

• Manufacturer: SEW
• Type: Helical Gearmotor
• Model: R27 DT80K4/MM05/BW1
• Part No.: 01.3111863930.0002.01
• Gear Unit: R27
• Speed (50Hz): 280 – 1400 rpm
• Output Speed: 14 – 72 rpm
• Total Ratio: 19.35
• Output Torque: 73 Nm
• Service Factor SEW-FB: 0.00 / 1.80
• Mounting Position: M3
• Lubricant Volume: 0.50 L
• Output Shaft End: 25x50mm lg.
• Motor Power: 0.11 / 0.55 kW
• Motor Frequency: 50 Hz
• Cyclic Duration Factor: S1
• Multi-Range Voltage (50Hz): 380-500V
• Multi-Range Voltage (60Hz): 380-500V
• MM Rated Main Current: 1.60 A
• MM Rated Output Current: 2.00 A
• Thermal Class / Enclosure: F / IP54

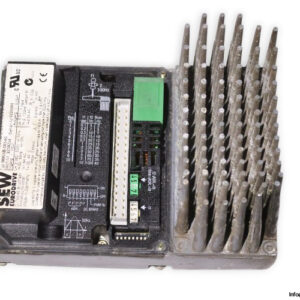

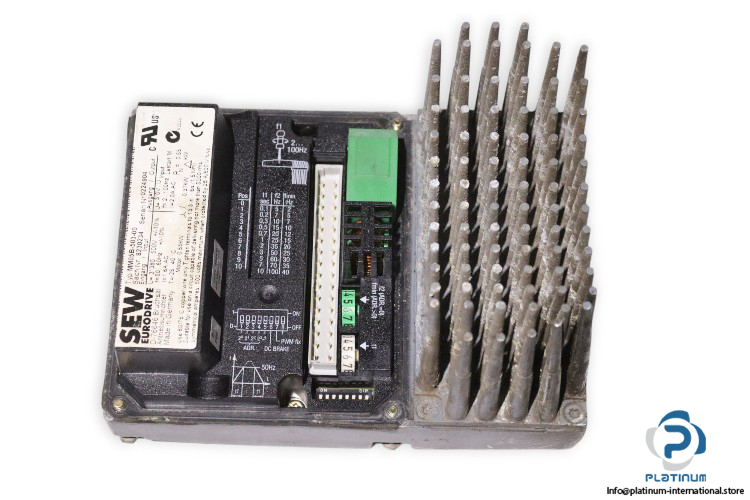

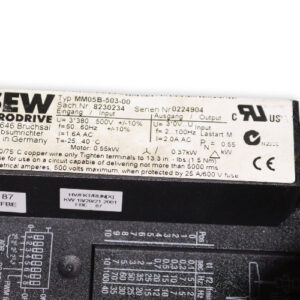

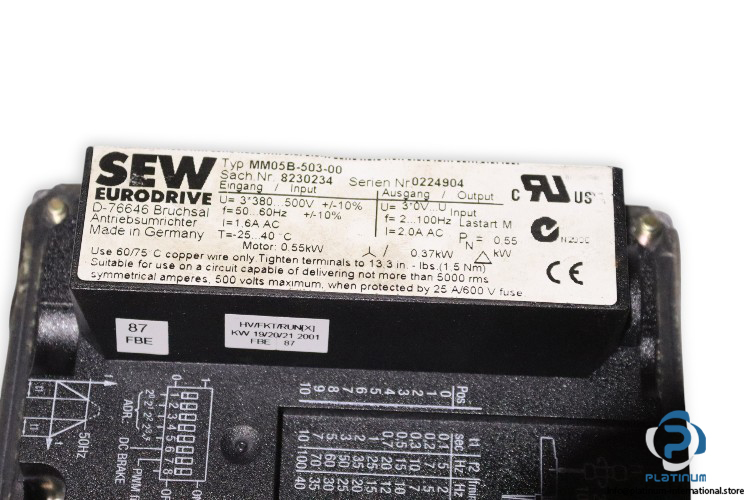

MOVIMOT MM05B-503-00 Inverter Drive Specifications:

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2 A
• Frequency: 2 to 100 Hz

The SEW R27 DT80K4/MM05/BW1 Helical Gearmotor with MOVIMOT Inverter Drive is an advanced motor solution, providing precise speed control, high torque, and energy efficiency for industrial automation applications.
