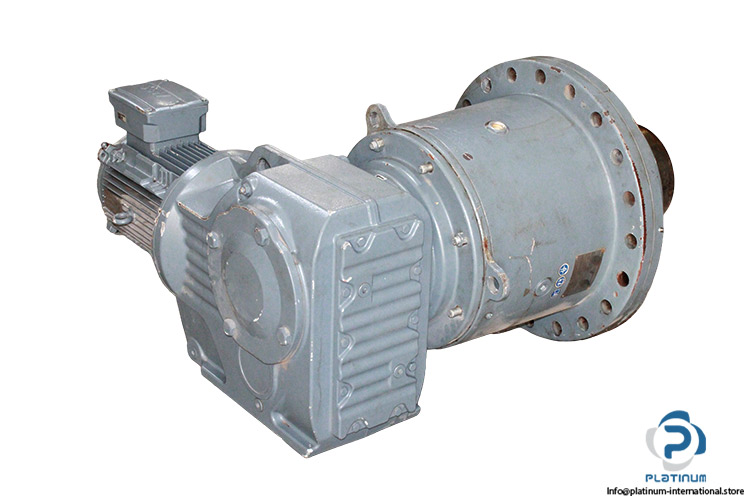

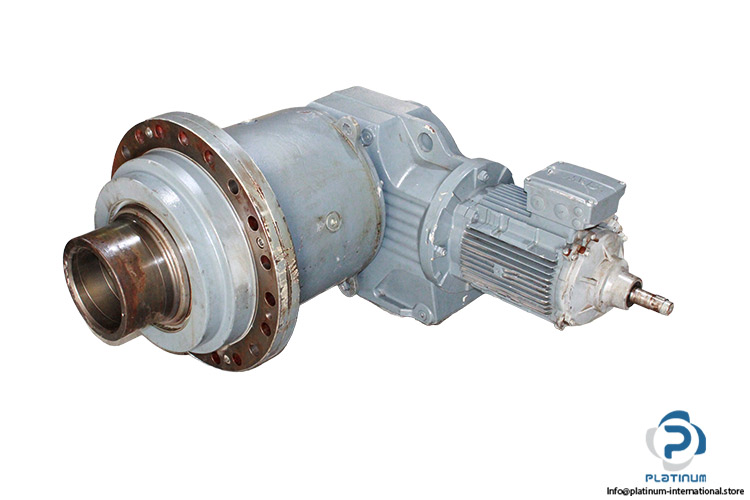

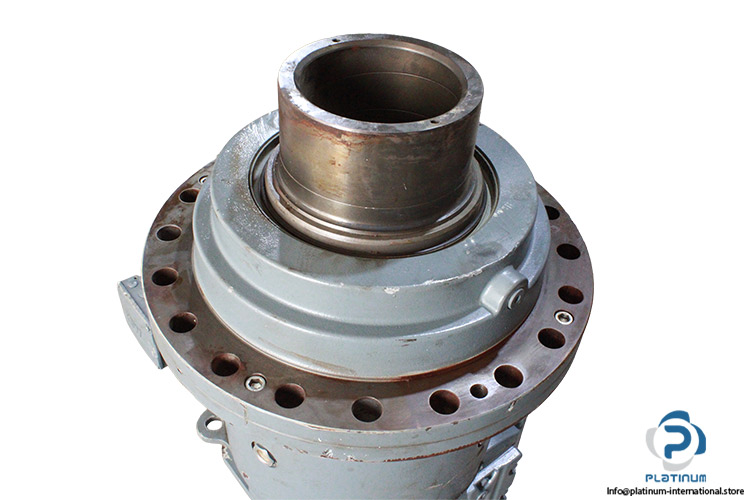

SEW PHF042 KF107DRN132M4/RS/TF Planetary Gear AND Bevel-Helical Gear Motor
Used
In stock1 unitReady to ship
12 999,99$
Planetary Gear and Bevel-Helical Gear Motor Heavy-duty planetary gear with SEW bevel-helical gearmotor, featuring 7.5 kW motor power, 54,300 Nm output torque, and a 1138:1 total ratio for high-torque industrial drive applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

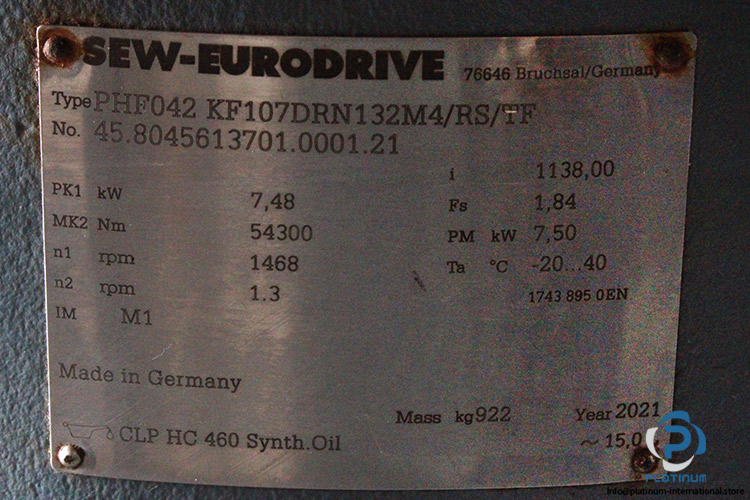

| Part No. | 45.8045613701.0001X21 |
| PK1 (Gear Unit Input Power) | 7.48 kW |
| MK2 (Output Torque) | 54,300 Nm |
| n1 (Input Speed) | 1468 rpm |
| n2 (Output Speed) | 1.3 rpm |
| i (Total Gear Ratio) | 1138,00 |
| Fs (Service Factor) | 1.84 |
| PM (Maximum Motor Power) | 7.50 kW |
| Ta (Ambient Temperature Range) | -20 ... 40 °C |
| Mounting Position (IM) | M1 |
| Oil Type | CLP HC 460 Synth.Oil (Synthetic polyalphaolefin-based gear oil, ISO VG 460) |
| Oil Volume | 15.0 L (Liters) |

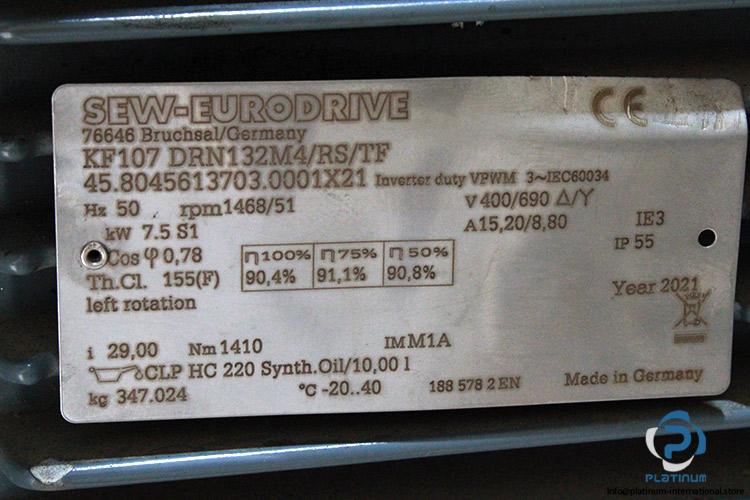

| Attached with | Sew KF107 DRN132M4/RS/TF Helical-bevel gearmotor |
| Part No, gearmotor | 45.8045613703.0001X21 |
| Speed [r/min] , gearmotor | 1468 / 51 |
| Total ratio [i] , gearmotor | 29,00 |
| Ma max [Nm] , gearmotor | 7.200 |
| Output torque [Nm] , gearmotor | 1410 |
| Service factor SEW-FB, gearmotor | 5,10 |
| Mounting position , gearmotor | M1A |
| Rotation, gearmotor | Counterclockwise |
| ISO code, gearmotor | CLP HC 220 |
| Lubricant type, gearmotor | Synth.Oil |
| Lubricant volume [l] , gearmotor | 10,00 |
| Motor power [kW] , gearmotor | 7.5 |
| Motor frequency [Hz] , gearmotor | 50 |
| Cyclic duration factor S1-S10, gearmotor | S1 |
| Motor voltage [V] / conn. Type, gearmotor | 400/690 delta/star |
| Nominal current [A] , gearmotor | 15,20 / 8,80 |
| cos phi , gearmotor | 0,78 |
| Thermal cl.[°C]/Enclosure[IP] , gearmotor | 155(F) / 55 |
| International efficiency class, gearmotor | IE3 |
| Efficiency (100% Pn) [%] , gearmotor | 90,4 |
| Efficiency at 50/75/100% Pn [%], gearmotor | 90,8 / 91,1 / 90,4 |
| Ambient temperature min. [°C] , gearmotor | -20 |
| Ambient temperature max. [°C] , gearmotor | 40 |
| Nameplate text, gearmotor | left rotation |
| Connection | terminal box |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100848 |
| Weight | 850 |
