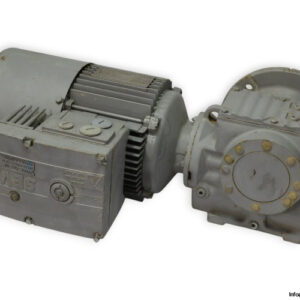

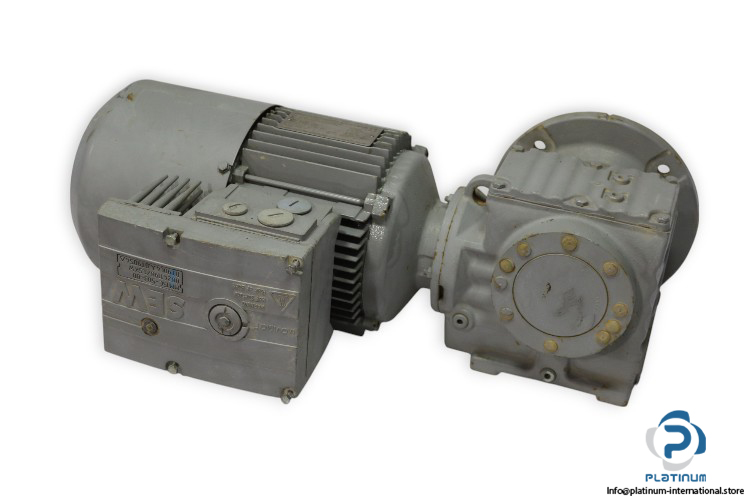

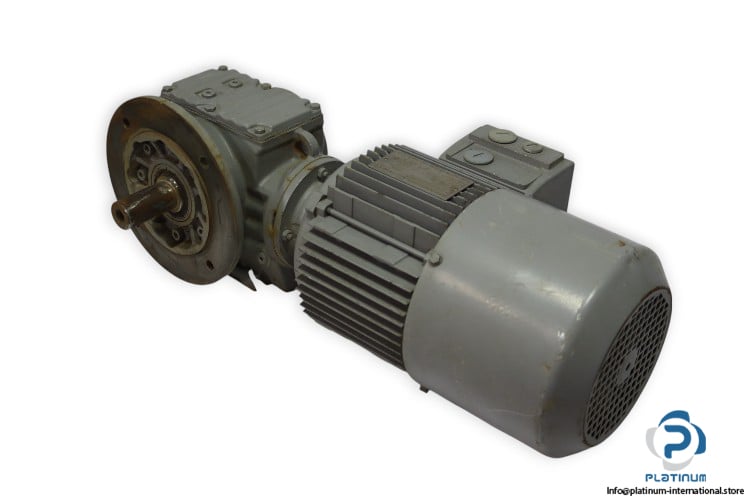

SEW SF57 DT90L4/BMG/MM15 HELICAL-WORM GEARMOTOR WITH INVERTER DRIVE
This SEW Eurodrive helical-worm gearmotor is a complete power transmission solution combining high-torque performance with compact design. Paired with the integrated MOVIMOT MM15C-503-00 inverter drive, it offers efficient speed control and variable frequency operation ideal for industrial automation and drive systems.
Manufacturer: SEW
Type: Helical-Worm Gearmotor
Model: SF57 DT90L4/BMG/MM15
Reference No.: 01.1214999101.0001.07
Part No.: 01.3015678502.0002.01 / 01.3015678502.0005.01 / 01.3015678502.0006.01 / 01.3015678502.0007.01

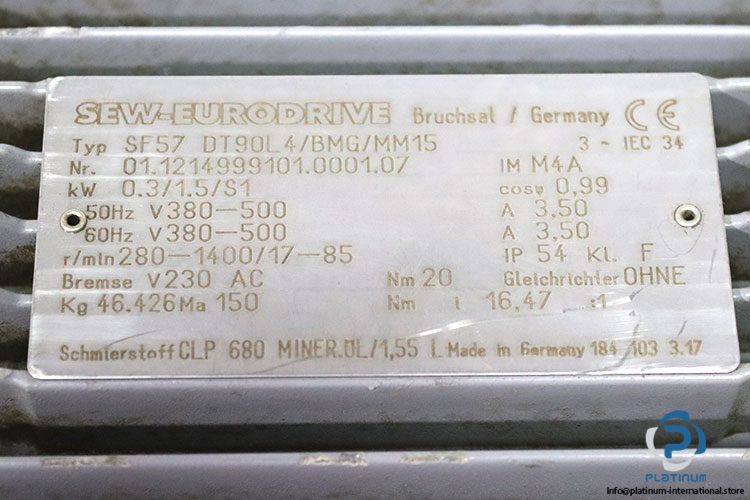

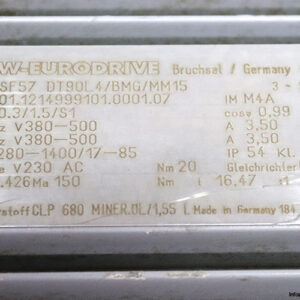

Technical Information
- Size: 90L, 4 Pole
- Brake: BMG
- Gear Unit: SF57
- Input Speed: 280 to 1400 r/min
- Output Speed: 17 to 85 r/min
- Total Ratio: 16.47
- Mounting Position: M4A
- Output Torque: 20 / 150 Nm
- Lubricant Volume: 1.55 l
- Motor Power: 0.3 / 1.5 kW
- Motor Frequency: 50 / 60 Hz
- Cyclic Duration Factor: S1
- Multi Range Voltage (50Hz): 380 to 500 V
- Rated Main Current: 3.50 A
- Multi Range Voltage (60Hz): 380 to 500 V
- Thermal Class / Enclosure: F / IP54
- Power Factor: cos φ 0.99
- Oil Type: CLP 680 Mineral UL

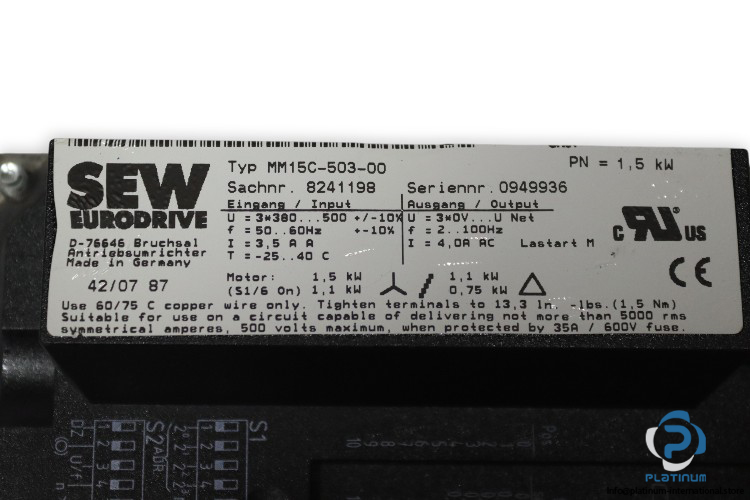

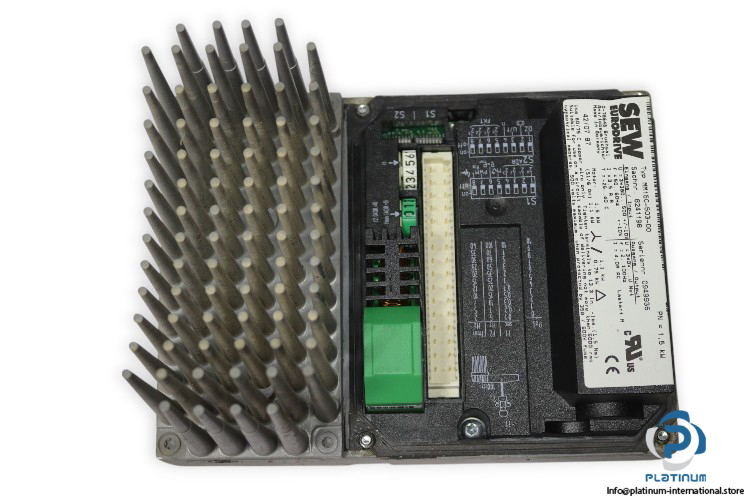

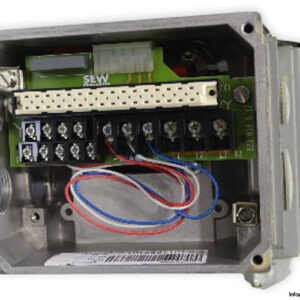

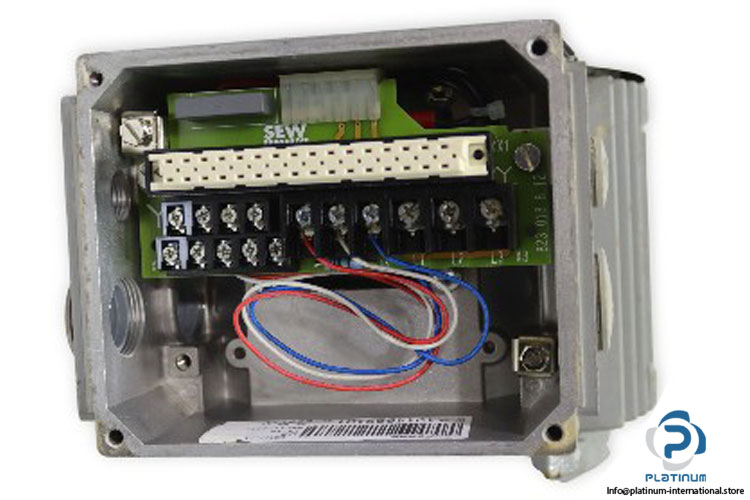

Integrated MOVIMOT MM15C-503-00 Inverter Drive
- Code: 8241198 / 0949936
- Input Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Input Current: 3.5 A
- Input Frequency: 50 / 60 Hz
- Output Voltage: 3-Phase 0 to 500 V AC
- Output Current: 4 A
- Output Frequency: 2 to 100 Hz
- Operating Temperature: -25°C to 40°C
- Nominal Power: 1.5 kW
- Power Rating: 1.5/1.1 kW star, 1.1/0.75 kW delta
- Wiring: 60/75°C copper wire only
- Terminal Torque: 13.31 in.lbs (1.5 Nm)
- Protection: 35A / 600 V fuse, max 5000 rms
