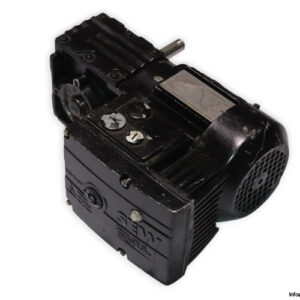

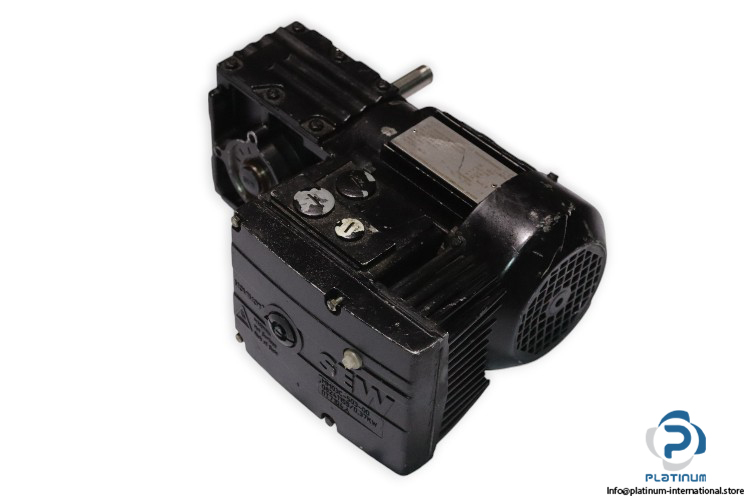

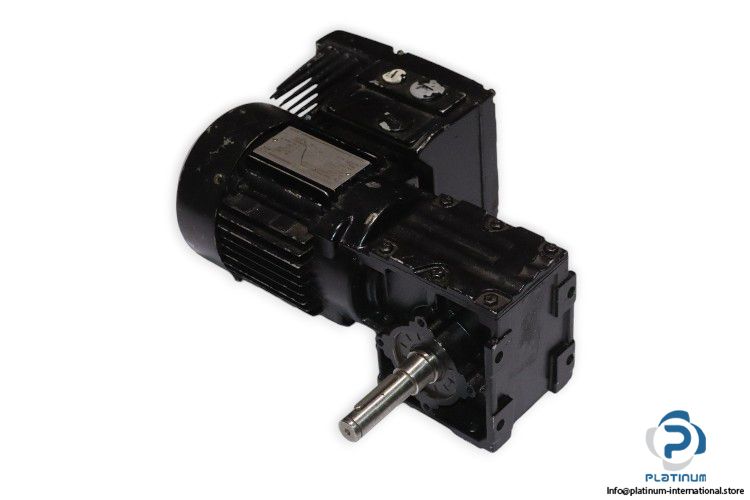

SEW SPIROPLAN Gearmotor WA30 DT71D4/MM03/BW1 with MOVIMOT Inverter Drive
The SEW SPIROPLAN Gearmotor WA30 DT71D4/MM03/BW1 is a high-performance, compact gearmotor designed for precision and efficiency in industrial applications. This unit features a hollow shaft design with robust torque output and is paired with the **SEW MOVIMOT MM03C-503-00 Inverter Drive** for enhanced control and flexibility.

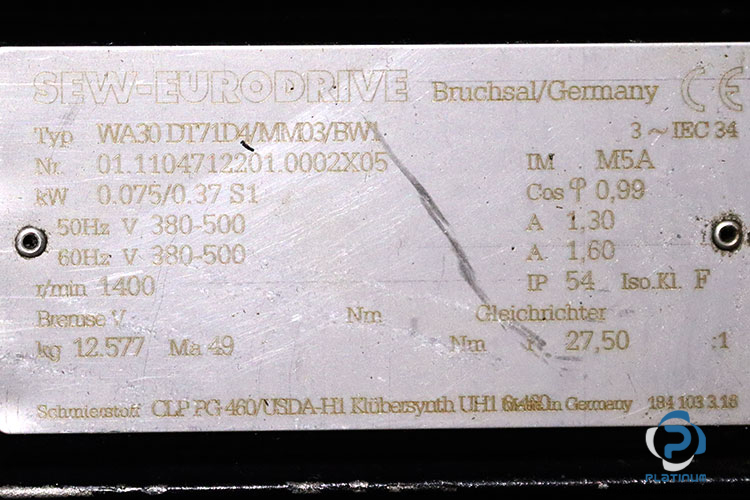

Gearmotor Specifications:
- Manufacturer: SEW
- Type: SPIROPLAN Gearmotor
- Model: WA30 DT71D4/MM03/BW1
- Part No.: 01.1104712201.0002X05
- Gear Unit: WA30
- Input Speed: 280 – 1400 r/min
- Output Speed: 10 – 51 r/min
- Total Ratio: 27.50
- Hollow Shaft: 20 mm
- Design: Hollow Shaft
- Output Torque: 39 / 49 Nm
- Mounting Position: M5A
- Motor Power: 0.075 / 0.37 kW
- Cyclic Duration Factor: S1
- Multi-Range Voltage 50Hz: 380-500 V
- Multi-Range Voltage 60Hz: 380-500 V
- MM Rated Main Current: 1.30 A
- MM Rated Output Current: 1.60 A
- Service Factor SEW-FB: 1.80 / 1.45
- Thermal Class/Enclosure: F / IP54

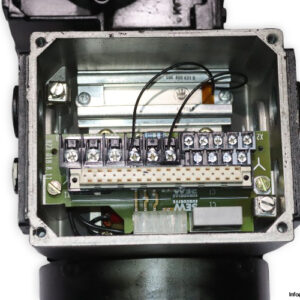

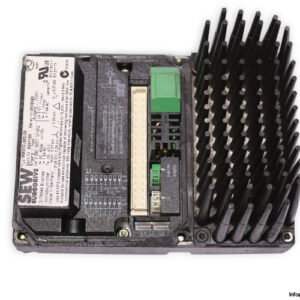

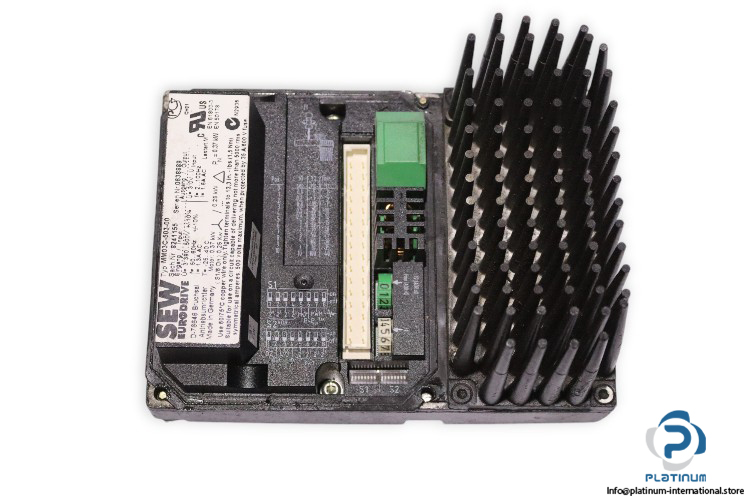

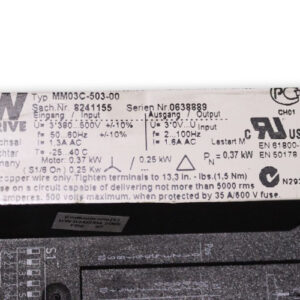

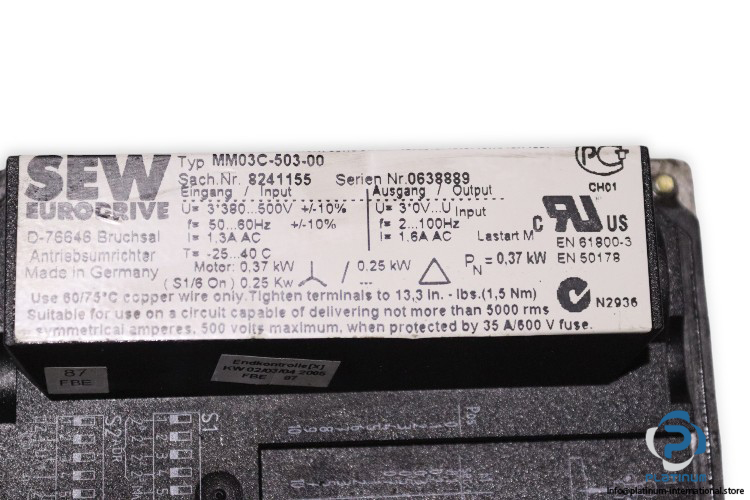

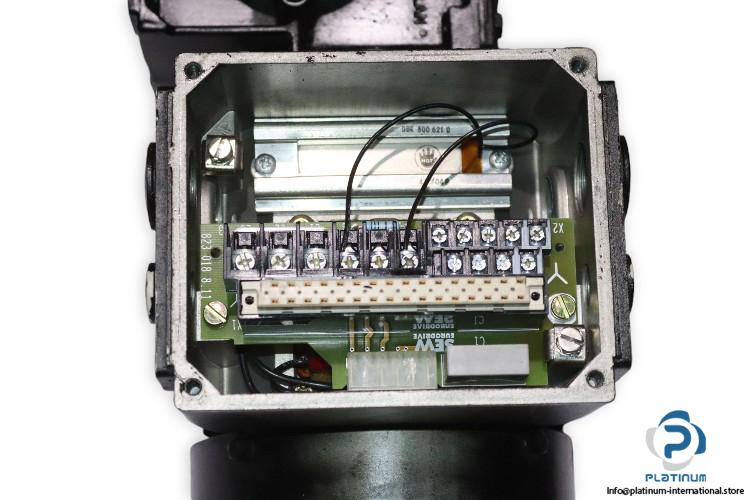

Attached: SEW MOVIMOT MM03C-503-00 Inverter Drive
Input Specifications:
- Supply Voltage: 3-Phase 380 to 500 V AC
- Rated Current: 1.3 A
- Frequency: 50 / 60 Hz
Output Specifications:
- Rated Voltage: 3-Phase 0 / 380 to 500 V AC
- Rated Current: 1.6 A
- Frequency: 2 / 100 Hz
The **SEW SPIROPLAN WA30 Gearmotor** paired with the **MOVIMOT MM03C-503-00** inverter ensures smooth and controlled operation, making it ideal for industrial applications requiring precision and high efficiency.
