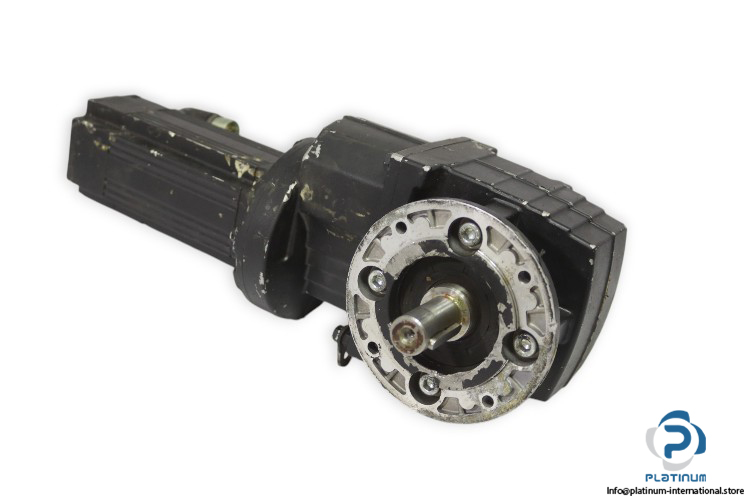

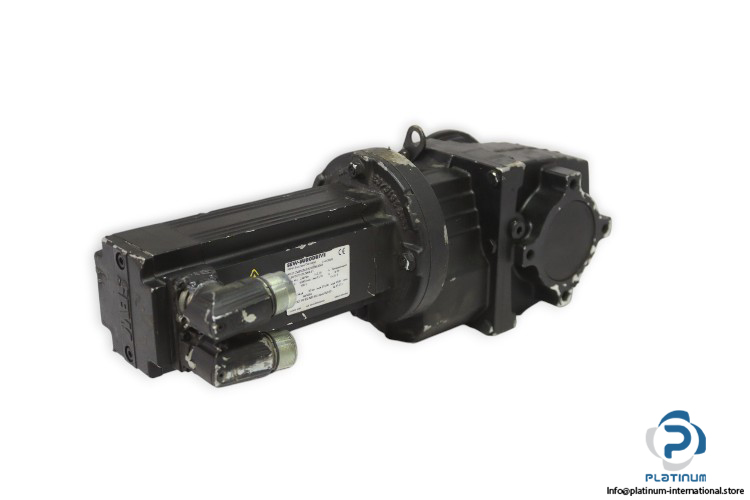

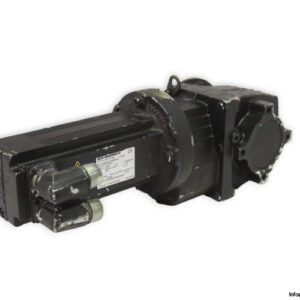

SEW WF37 CMP50M/KY/RH1M/SM1 Servo Gearmotor
The SEW WF37 CMP50M/KY/RH1M/SM1 Servo Gearmotor is a high-performance drive solution designed for precision motion control applications. Engineered for efficiency and durability, this gearmotor offers reliable torque output, smooth operation, and a robust flange-mounted design. With its optimized speed ratio, high protection rating, and food-grade lubrication compatibility, it is ideal for demanding industrial environments.
- Manufacturer: SEW
- Type: Servo Gearmotor
- Model: WF37 CMP50M/KY/RH1M/SM1
- Part No: 01.1873270106.0004.13
Technical Specifications
- Gear Unit: WF37
- Speed [r/min]: 4500 / 324
- Total Ratio: 13.89 / infinite
- Mounting Position: M5A
- Lubricant / Volume [l]: CLP PG-460-NSF-H1 Oil f. Food / 0.50
- Output Torque Mapk [Nm]: 90
- Output Shaft End: 20x40mm lg.
- Design: Flange-mounted version
- Flange: 120mm
- Standstill Torque M0 [Nm]: 2.40
- Max. Limit Torque Mpk [Nm]: 10.30
- Standstill Current I0 [A]: 2.30
- Max. Permitted Current Imax [A]: 13.10
- Cyclic Duration Factor S1-S10: S1
- Motor Voltage [V]: 400
- Max. Permitted Frequency [Hz]: 225
- Thermal Class / Enclosure [IP]: F / 65
