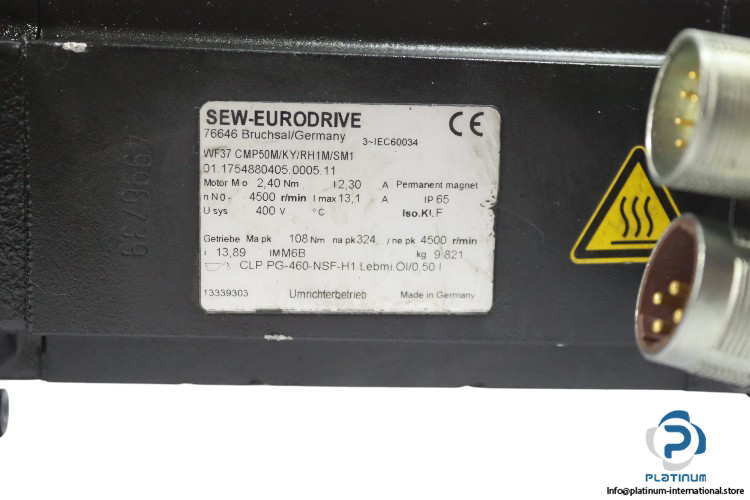

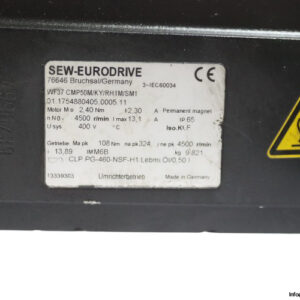

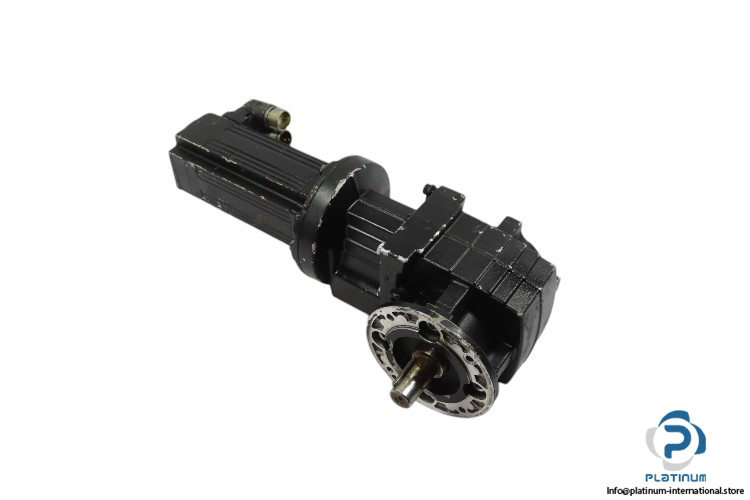

SEW WF37 CMP50M/KY/RH1M/SM1 Servo Gearmotor
The SEW WF37 CMP50M/KY/RH1M/SM1 Servo Gearmotor is a high-performance drive solution designed for precision and efficiency. With its flange-mounted design, high torque output, and advanced lubrication system, it ensures optimal performance in demanding industrial applications. Engineered for durability, this servo gearmotor provides smooth and reliable motion control in automation and power transmission systems.
- Manufacturer: SEW
- Type: Servo Gearmotor
- Model: WF37 CMP50M/KY/RH1M/SM1
- Part No: 01.1754880405.0005.11
Technical Specifications
- Gear Unit: WF37
- Speed [r/min]: 4500 / 324
- Total Ratio: 13.89 / Infinite
- Mounting Position: M6B
- Lubricant / Volume [l]: CLP PG-460-NSF-H1 Oil for Food / 0.50
- Output Torque Mapk [Nm]: 108
- Output Shaft End: 20x40mm lg.
- Design: Flange-mounted version
- Flange: 120 mm
- Standstill Torque M0 [Nm]: 2.40
- Max. Limit Torque Mpk [Nm]: 10.30
- I0 Standstill Current [A]: 2.30
- Max. Permissible Current Imax [A]: 13.10
- Cyclic Duration Factor S1-S10: S1
- Motor Voltage [V]: 400
- Max. Permitted Frequency [Hz]: 225
- Thermal Class / Enclosure [IP]: F / 65
