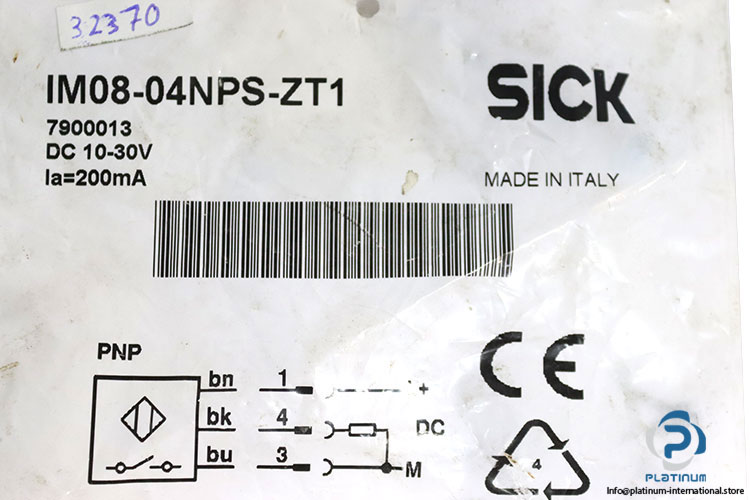

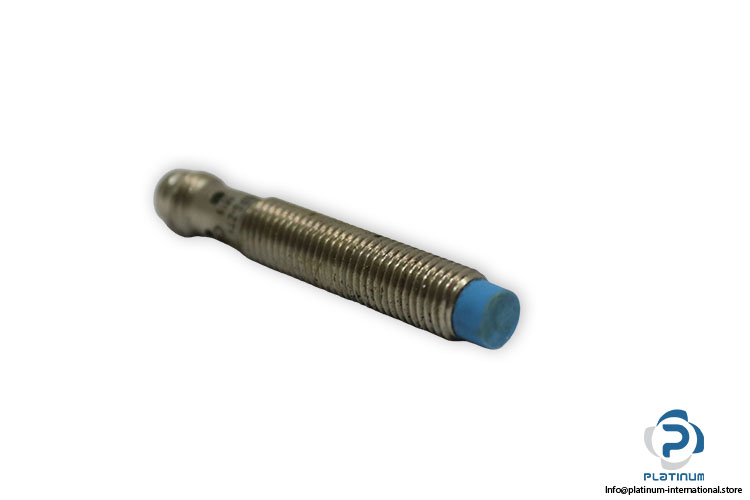

SICK IM08-04NPS-ZT1 Inductive Proximity Sensor

A compact and reliable inductive proximity sensor engineered for precise detection in industrial automation environments. Designed for durability, high switching accuracy, and stable performance in demanding applications. Manufacturer: SICK
Type: Inductive Proximity Sensor
Model: IM08-04NPS-ZT1
Part No.: 7900013

Technical Information

• IM Standard: Yes
• Housing: Metric, Standard Design
• Thread Size: M8 x 1
• Diameter: 8 mm
• Sensing Range Sn: 4 mm
• Installation Type: Non-flush
• Switching Frequency: 1,800 Hz

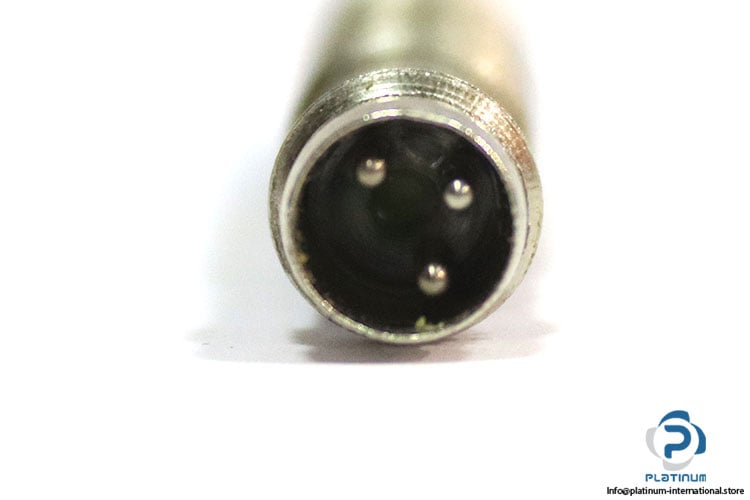

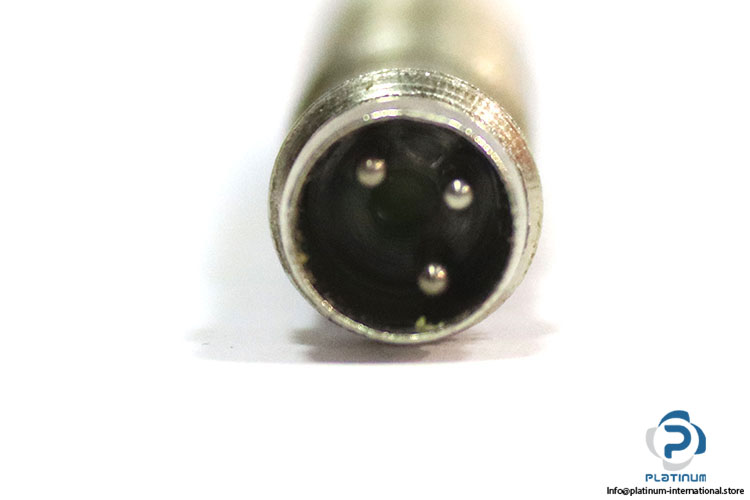

• Connection Type: Connector M8, 3-pin
• Switching Output: PNP
• Output Function: NO
• Electrical Wiring: DC 3-wire
• Enclosure Rating: IP67
• Supply Voltage: 10 V DC … 30 V DC
• Time Delay Before Availability: 100 ms
• Continuous Current Ia: 200 mA
• Ambient Operating Temperature: “25 °C … +70 °C
• Housing Material: Brass, Nickel-plated
• Sensing Face Material: Plastic
• Housing Length: 50 mm
• Thread Length: 31.3 mm
• Tightening Torque (Max): 4 Nm
