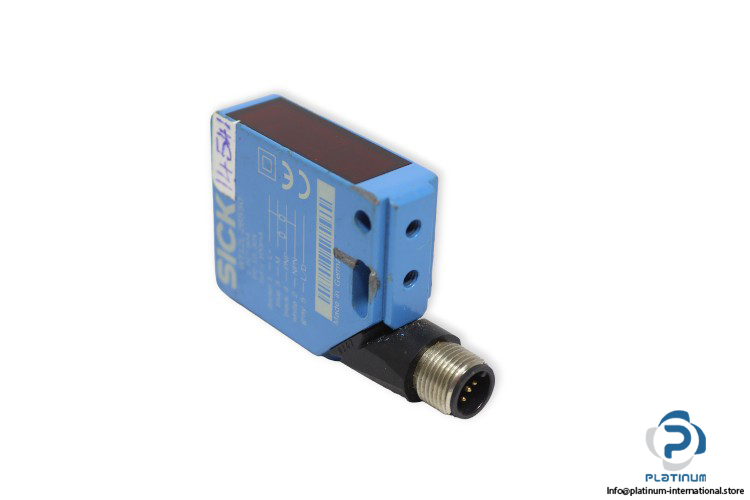

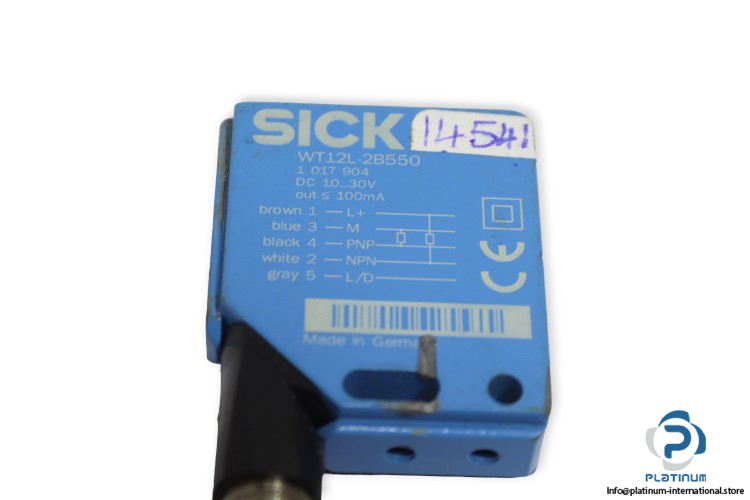

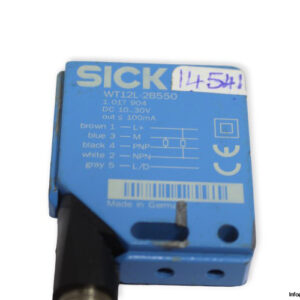

Sick WT12L-2B550 Background Suppression Sensor

Manufacturer: SICK
Type: Background Suppression Sensor
Model: WT12L2B550
Part No.: 1017904

Sensing Range: 30 … 200 mm
Type Of Light: Visible Red Light
Wave Length: 650 nm
Light Spot Size (Distance): Ø 0.2 mm (100 mm)
Housing Design (Light Emission): Rectangular
Light Source: Laser
Supply Voltage: 10 … 30 V DC
Output Current Max.: 100 mA
Switching Output: PNP / NPN

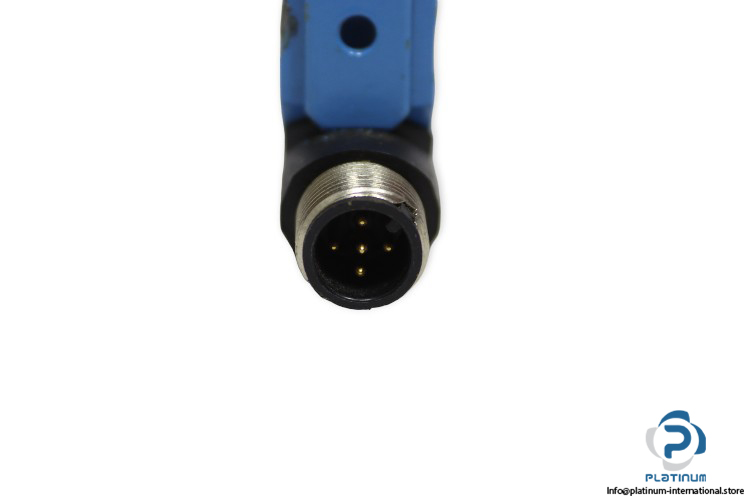

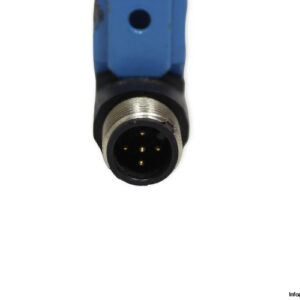

Connection Type: Male Connector M12, 5-pin
Switching Mode: Light / Dark Switching
Housing Material: Metal
Protection Class: IP67
Operating Temperature: -10 … 50 °C
Dimensions (W x H x D): 15 x 49 x 41.5 mm
