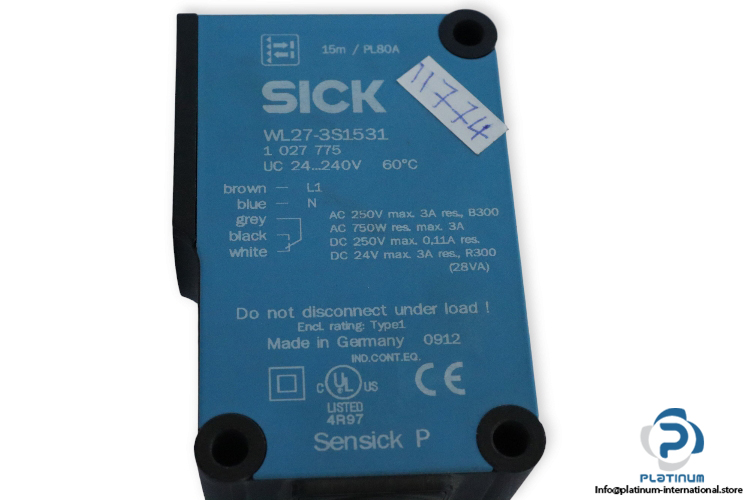

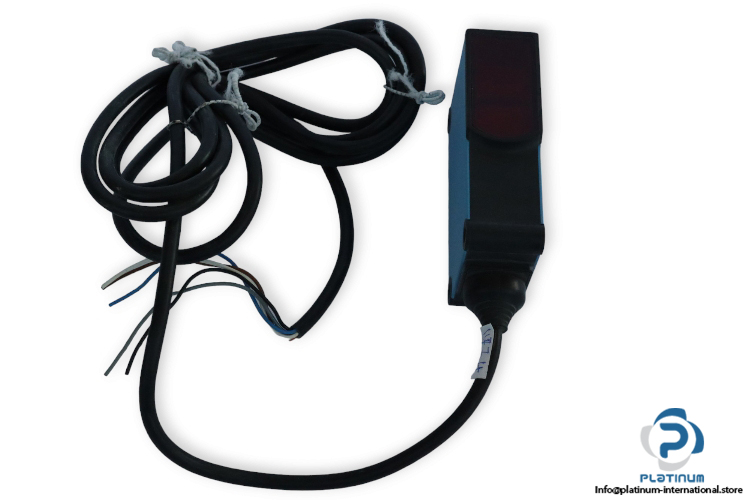

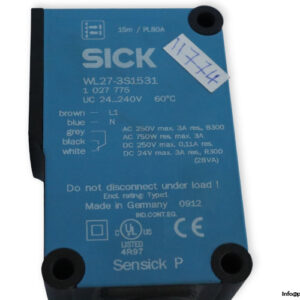

Sick WL27-3S1531 Diffuse Proximity Sensor

Manufacturer: SICK
Type: Diffuse Proximity Sensor
Model: WL273S1531
Part No.: 1027775

Sensing Range: 0.1 … 15 m
Housing Design (Light Emission): Rectangular
Supply Voltage: 24 … 240 V AC/DC
Power Consumption: 2.5 VA
Output Current Max.: 100 mA
Contact: 1 Change-Over
Contact Ratings: 250 V AC, 24 V DC, 3 A

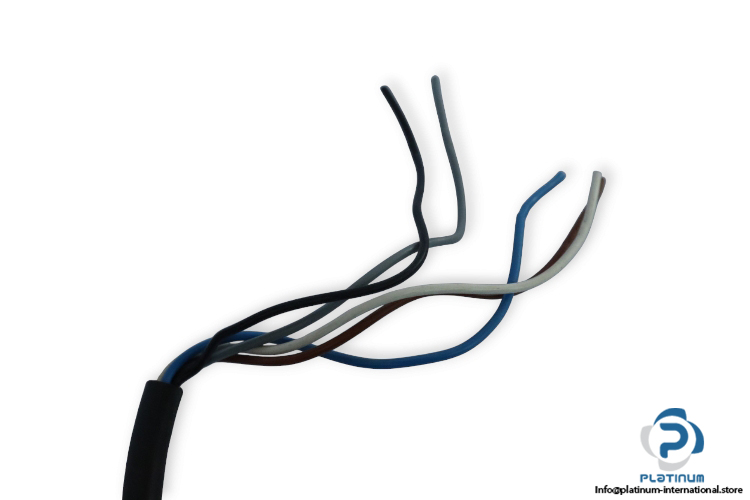

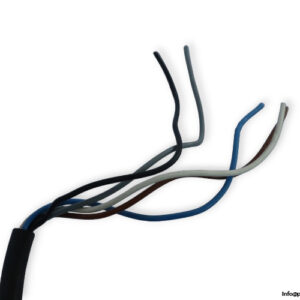

Connection Type: Cable, 5-Wire, 2 m
Switching Mode: Light / Dark Switching
Housing Material: Plastic, ABS
Wave Length: 660 nm
Light Spot Size: 220 mm
Protection Class: IP65
Operating Temperature: -40 … 60 °C
Dimensions (W x H x D): 80.6 x 24.6 x 54 mm
