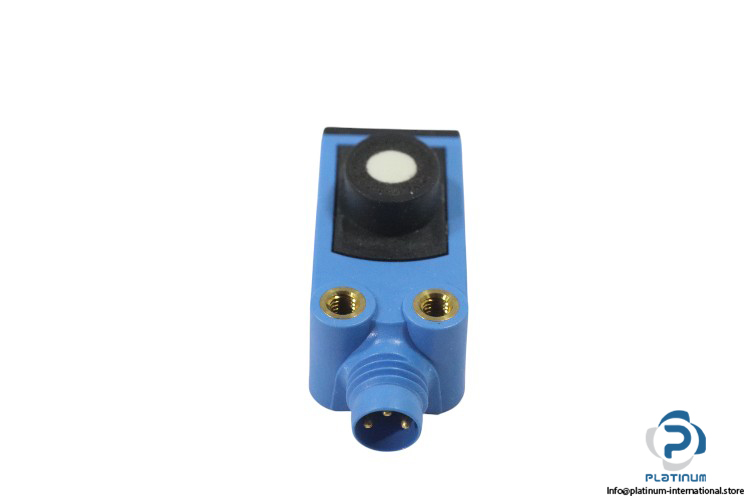

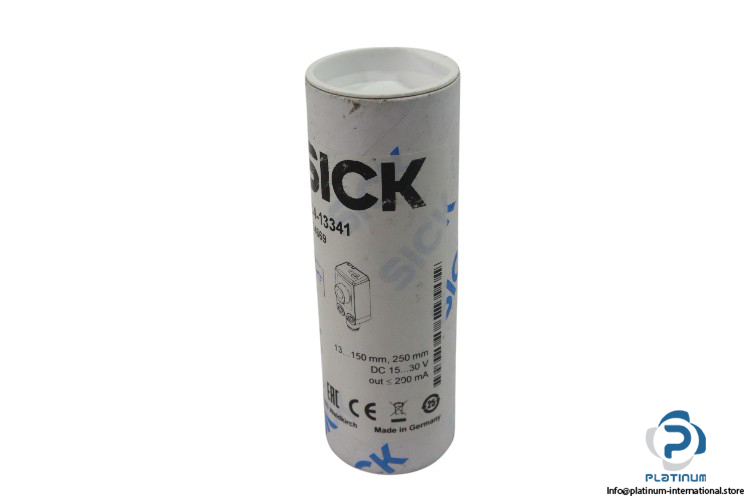

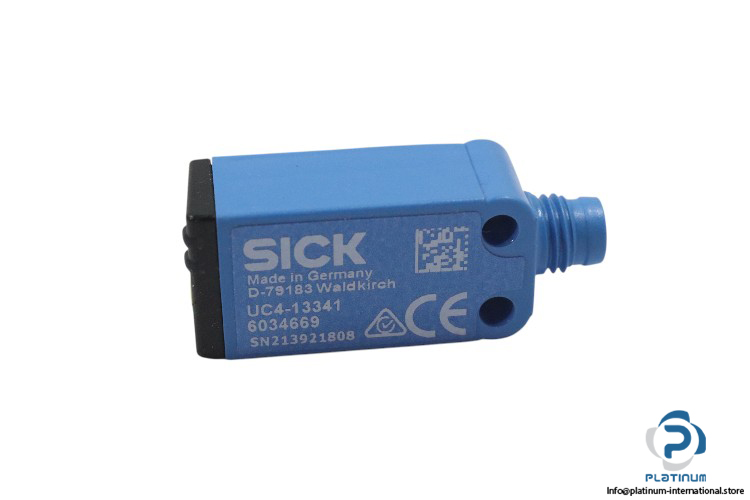

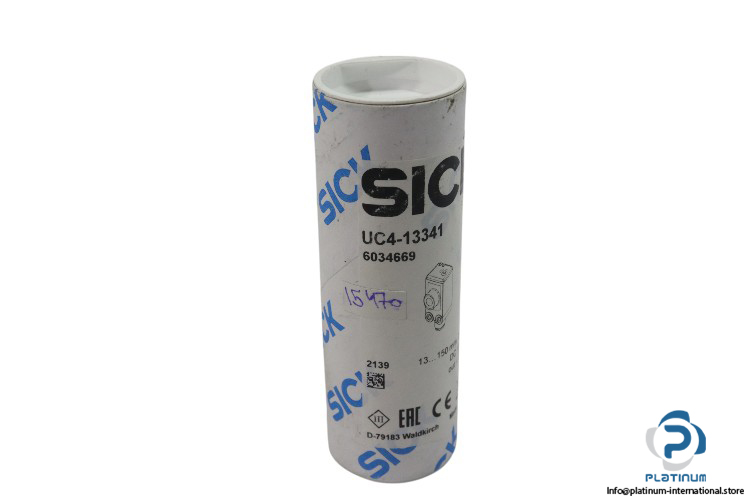

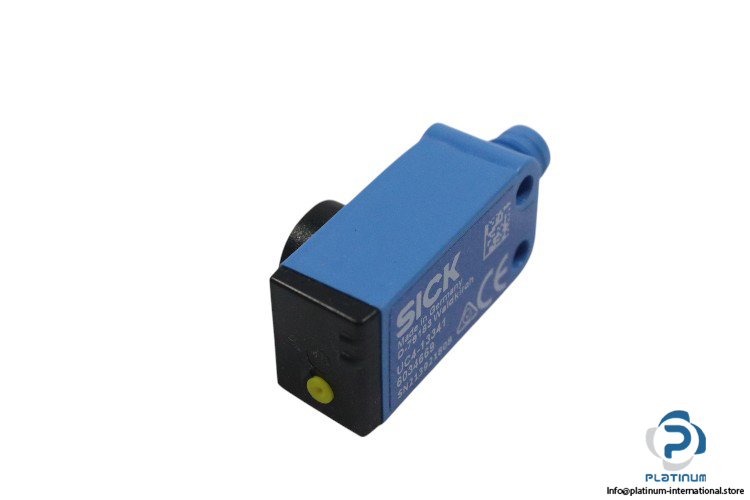

SICK UC4-13341 Ultrasonic Distance Sensor

The SICK UC4-13341 is a compact and high-precision ultrasonic distance sensor ideal for detecting natural objects in a wide range of industrial automation settings. It offers accurate, repeatable measurements and fast response times, with robust digital output and LED indicators for easy status monitoring.

Manufacturer: SICK

Type: Ultrasonic Distance Sensor

Model: UC4-13341

Part No.: 6034669

Technical Data:

• Operating Range / Limiting Range: 13 mm to 150 mm / 250 mm
• Target: Natural objects
• Resolution: ± 0.1 mm
• Repeatability: ± 0.15%
• Measurement Accuracy: ± 1%
• Response Time: 24 ms
• Switching Frequency: 30 Hz
• Output Time: 8 ms
• Ultrasonic Frequency (Typical): 380 kHz
• Digital Output: 1 (PNP)
• Maximum Output Current: 200 mA
• Hysteresis: 2 mm
• Supply Voltage: 15 V “ 30 V DC
• Power Consumption: 0.75 W
• Indication: 2 x LED
