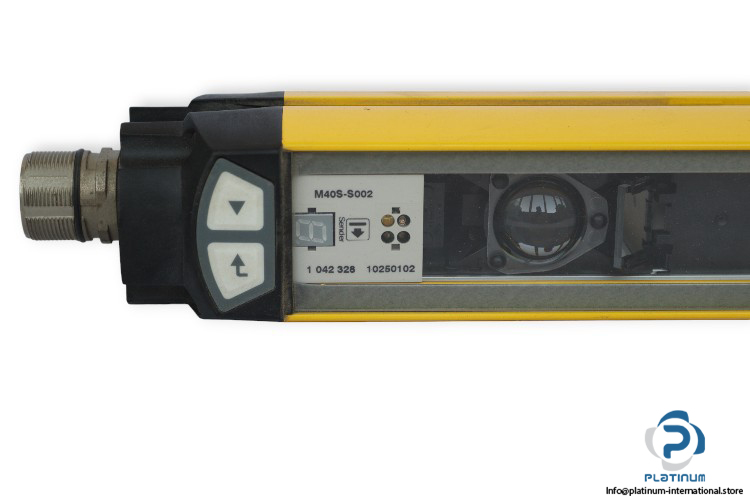

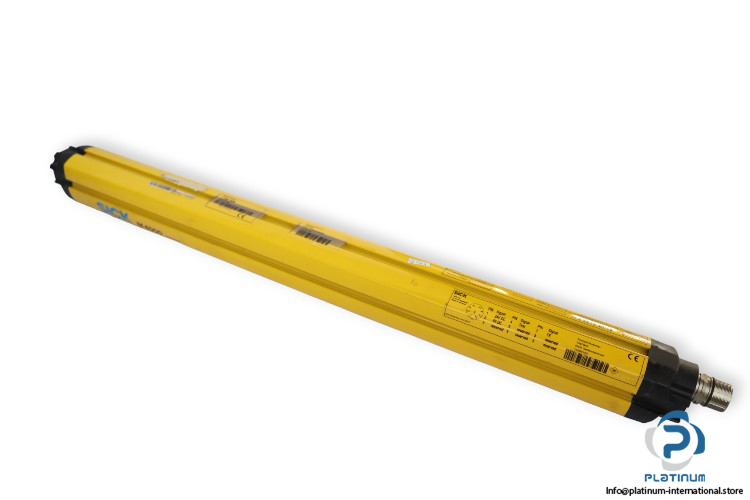

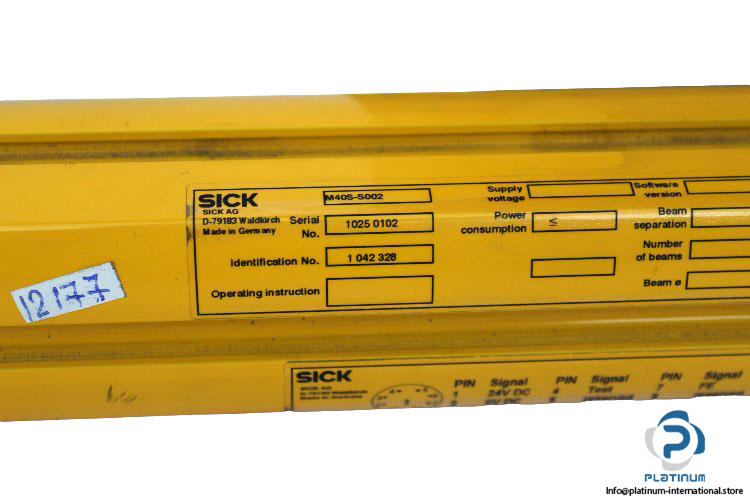

Sick M40S-S002 Safety Light Curtain Sender

Manufacturer: Sick
Type: Safety Light Curtain sender
Series: M4000 Standard
Part No.: M40SS002
ID. NO.: 1 042 328

Supply Voltage: 24 V DC
Current consumption: 0.3 A
Scanning range: 0.5 … 20 m
Beam diameter: 23 mm
Output: PNP semiconductors, short-circuit protected

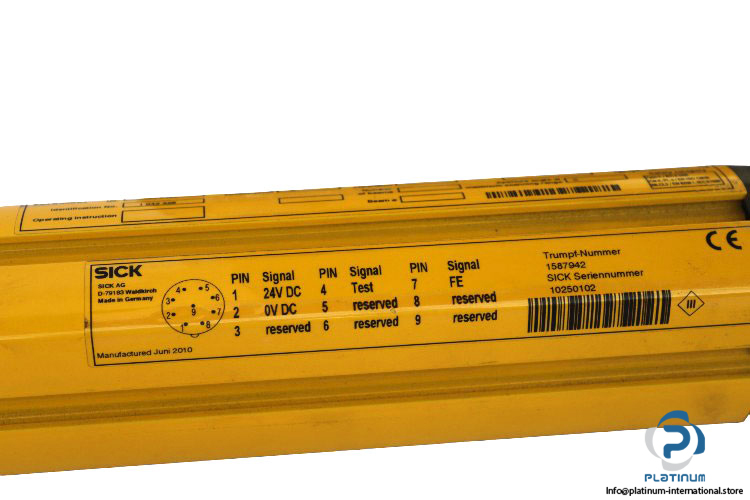

Connection: Male connector, M12 plug, 8-pin
Wire cross-section: 0.25 mm²
Type No.: Type 4 (IEC 61496)
Safety Integrity Level: SILCL3 (EN 62061, IEC 61508)
SIL claim limit: SILCL3 (EN 62061)
Category: Category 4 (EN ISO 13849)
Performance Level: PL e (EN ISO 13849)
Housing material: Aluminum alloy ALMGSI 0.5 (powder coated)
Ambient operating temperature: -30 … 55°C
Enclosure rating: IP 65
Wavelength of sender: Near infrared (NIR), invisible
Housing cross-section: 52 × 55.5 mm
Accessories:

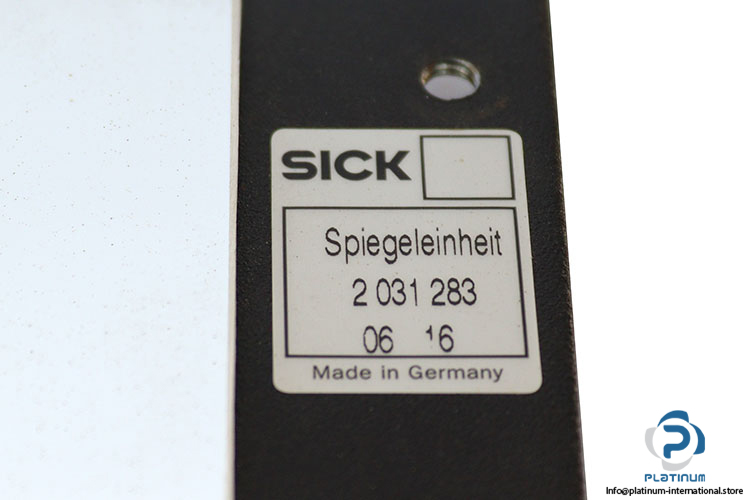

SICK 2 031 283 MIRROR UNIT
Manufacturer: Sick
Type: Mirror Unit
Model: 2031283
Part No.: 06 16
