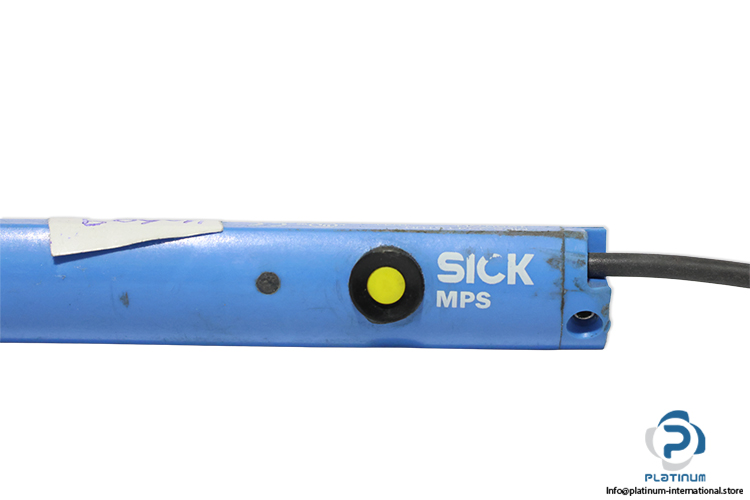

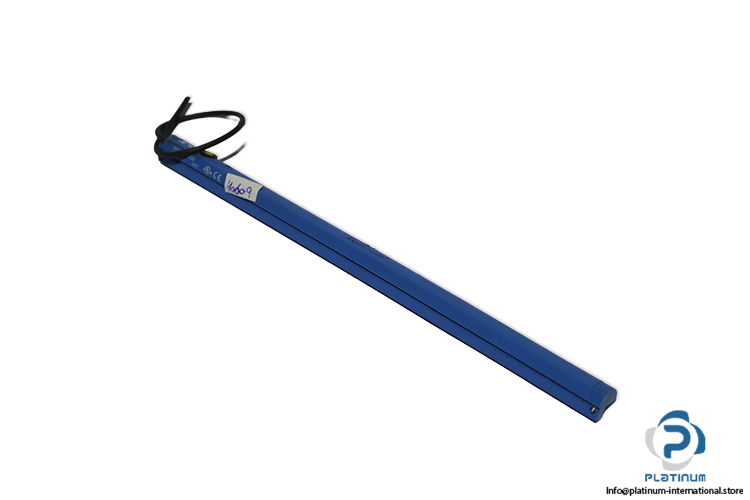

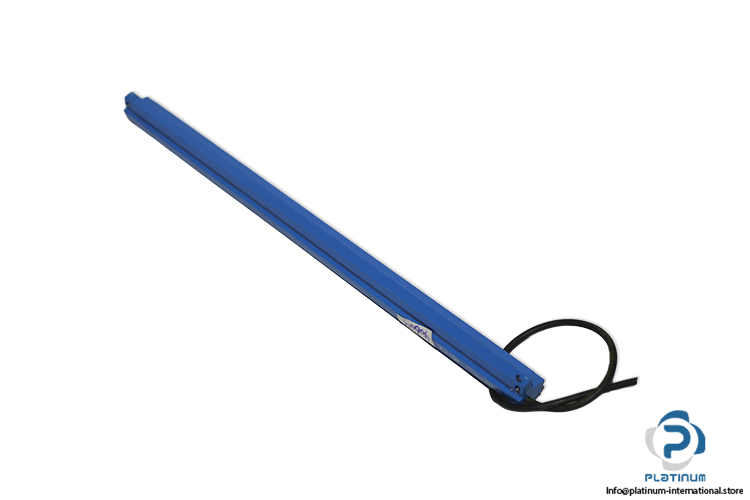

Sick MPS-224TSTU0 T-Slot Cylinder Sensor
Used
In stock1 unitReady to ship
T-Slot Cylinder Sensor SICK MPS series cylinder position sensor with 224 mm measuring range, analog output and IP67 protection for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

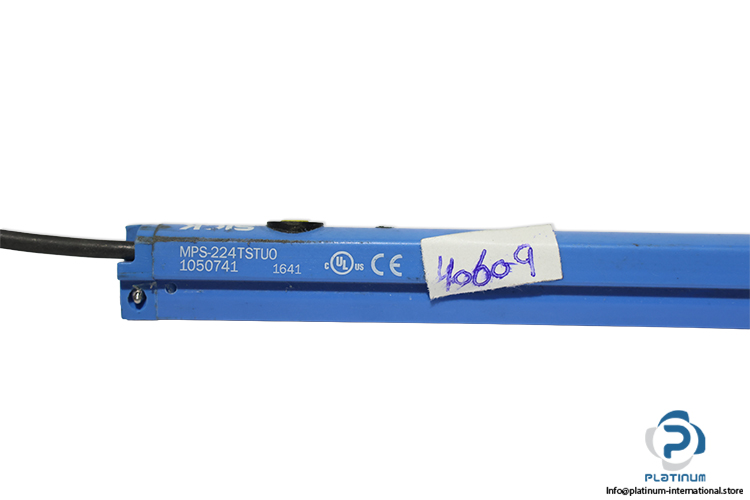

| Part No. | 1050741 |
| Series | MPS |
| Operating Voltage | 15 / 30 V DC |
| Cylinder shape | T-slot |
| Cylinder shapes with adapter | Round cylinder |
| Measuring range | 224 mm |
| Housing length | 237 mm |
| Output function | Analog |
| Electrical design | DC 4-wire |
| Cable cross-section | 0.08 mm² |
| Cable diameter | 2.6 mm Bending radius: fixed installation > 5 x cable diameter; moving: 10 x cable diameter |
| Axial Housing material | Plastic Cable PUR |
| Current Output | 4 mA ... 20 mA |

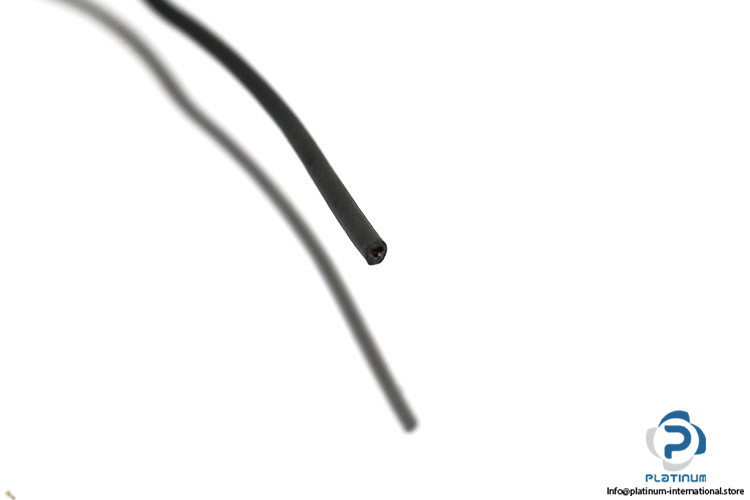

| Connector Type | Cable, 17 cm |
| Analoge output | 0 V ... 10 V ,4 mA ... 20 mA |
| Ambient Operating Temperature | -20 / 70°C |
| Degree of protection | IP67 |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1101527 |
| Weight | 0,03 |
