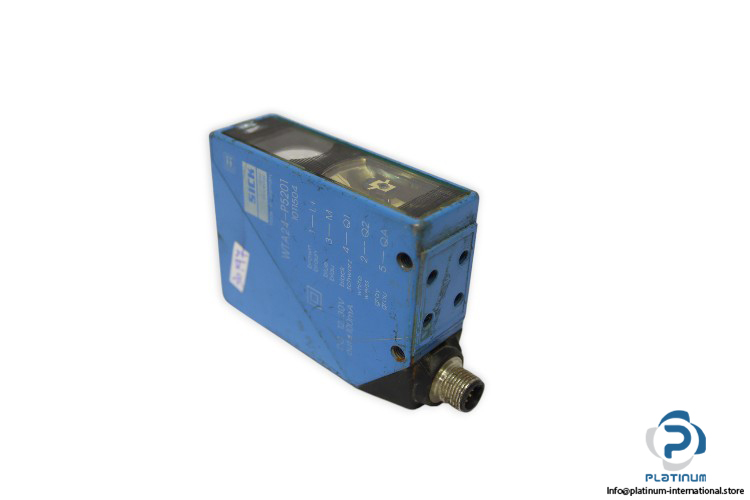

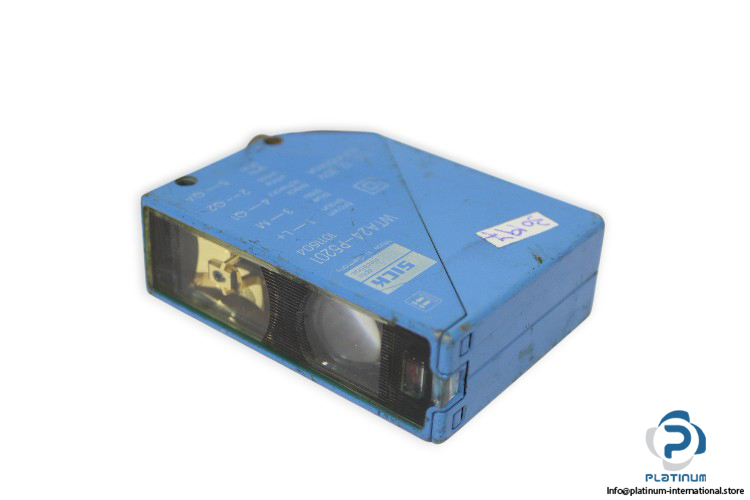

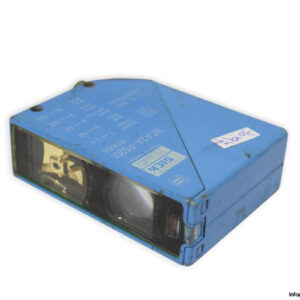

SICK WTA 24-P5201 PHOTOELECTRIC PROXIMITY SWITCH

The SICK WTA 24-P5201 (MRN: 1011504) is a reliable infrared photoelectric proximity switch designed for precise object detection within short measurement ranges, delivering fast response times and robust IP67 protection for industrial environments.

Manufacturer: SICK
Type: PHOTOELECTRIC PROXIMITY SWITCH
Model: WTA 24-P5201
MRN: 1011504

Technical Information

• Measurement range: 250 mm / 350 mm
• Light source: LED
• Type of light: Infrared light
• Dimensions (W x H x D): 27 mm x 88 mm x 65 mm
• Light spot diameter: 4 / 8 mm
• Residual ripple: 5 Vpp
• Switching outputs: PNP
• Response time: 5 ms
• Switching frequency: 100 Hz
• Enclosure rating: IP 67
• Ambient operation temperature: -10 °C / +55 °C
• Supply Voltage: 12 / 30 V
• Output Current: 100 mA

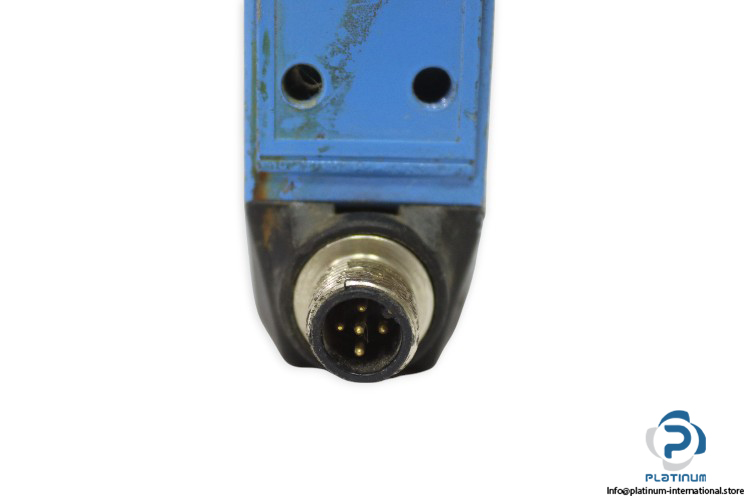

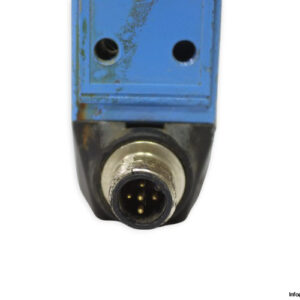

• Connection type: Connector, 5-pin
