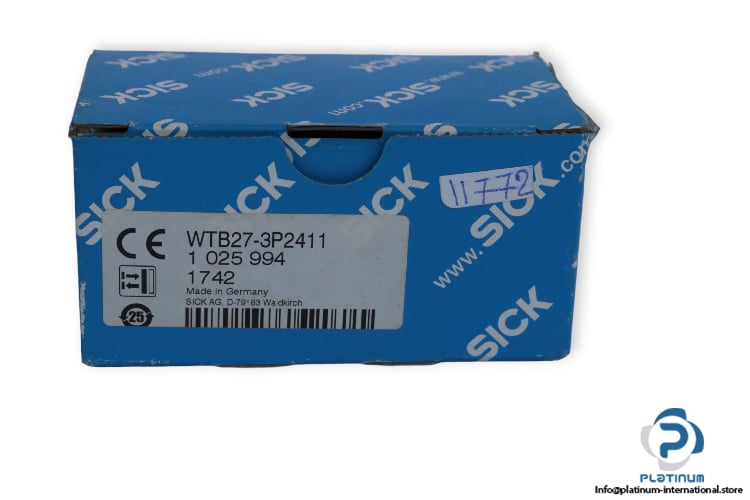

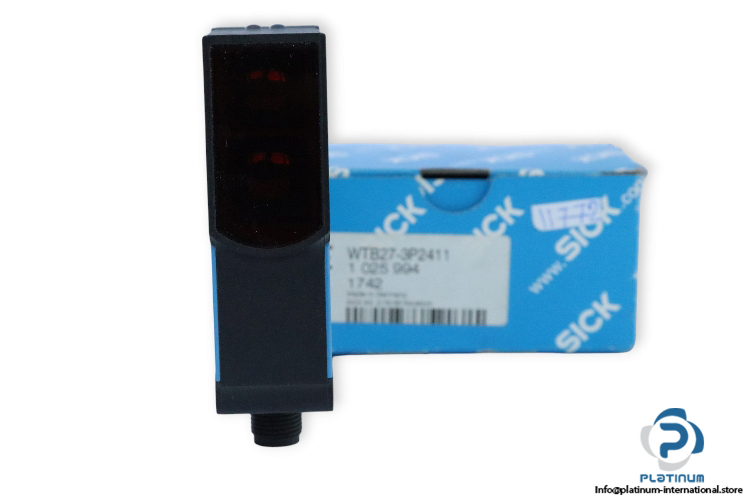

Sick WTB27-3P2411 Diffuse Proximity Sensor

Manufacturer: SICK
Type: Diffuse Proximity Sensor
Model: WTB273P2411
Part No.: 1025994 / 1742

Sensing Range: 30 … 1600 mm
Housing Design (Light Emission): Rectangular
Supply Voltage: 10 … 30 V DC
Output Current Max.: 100 mA
Switching Output: PNP

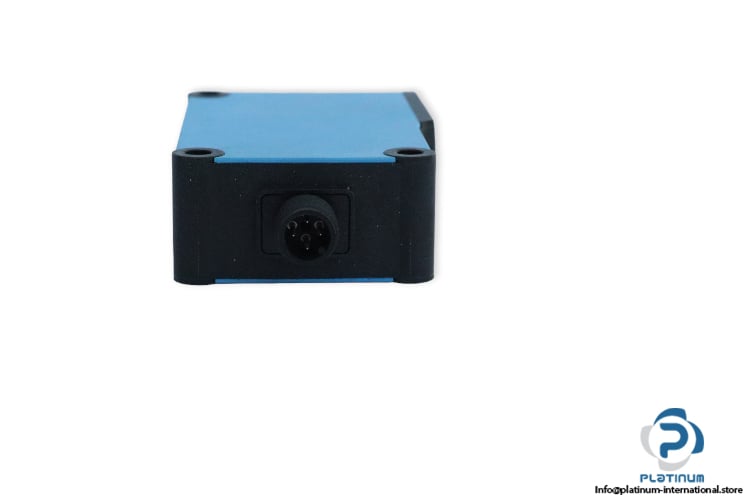

Connection Type: Male Connector M12, 4-Pin
Switching Mode: Light / Dark Switching
Housing Material: Plastic, ABS
Wave Length: 880 nm
Light Spot Size: 25 mm
Protection Class: IP65
Operating Temperature: -40 … 60 °C
Dimensions (W x H x D): 80.6 x 24.6 x 54 mm
