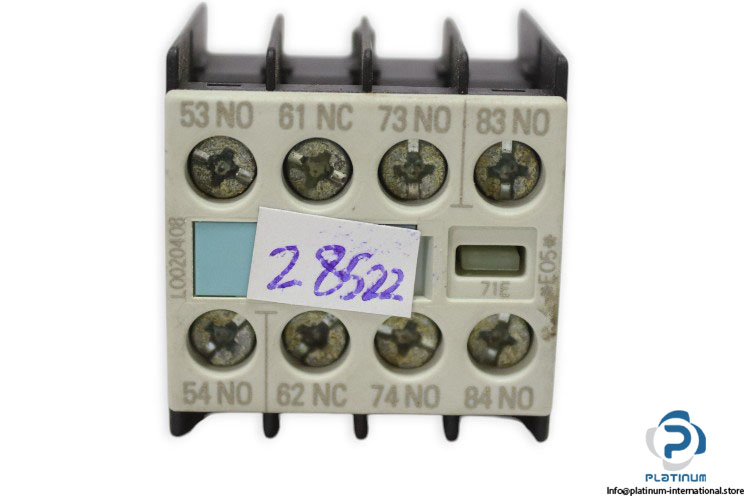

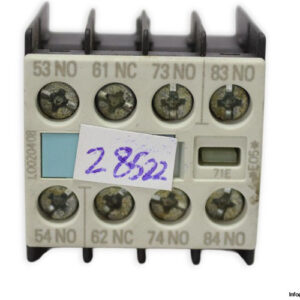

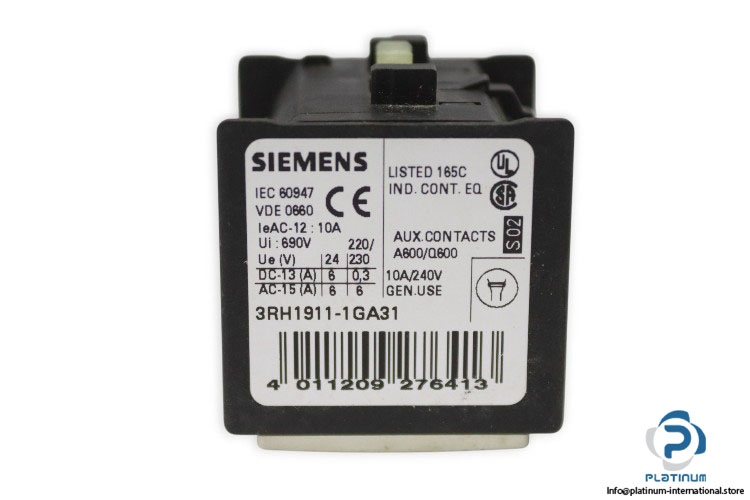

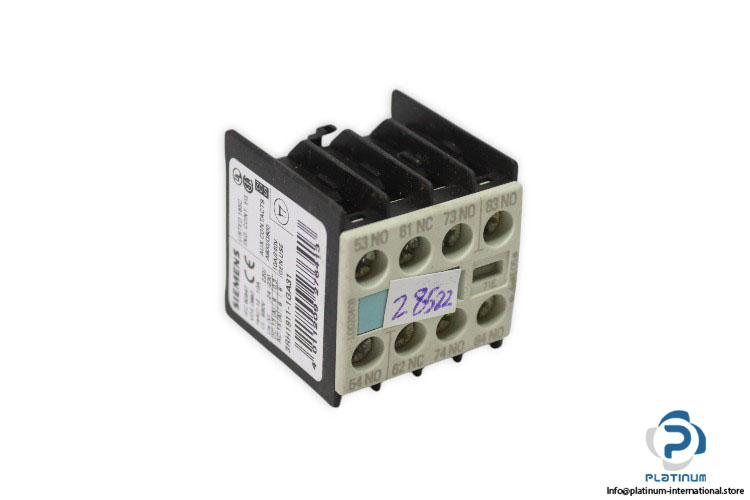

Siemens 3RH1911-1GA31 Miniature Circuit Breaker

The Siemens SIRIUS 3RH1911-1GA31 Miniature Circuit Breaker provides reliable protection and operational safety in electrical systems. Designed for use with contactor relays and power contactors, it meets IEC and VDE standards, ensuring dependable performance in industrial applications.

Manufacturer: Siemens
Type: Miniature Circuit Breaker
MNR: 3RH1911-1GA31
Ean No.: 4011209 276413
Brand Name: SIRIUS
Ref. No.: L0020408
Destination: 71E / E05

Technical Information

• Suitability for Use: Contactor relay and power contactor
• Insulation Voltage Ui: 690 V
• Rated Current AC-12: 10 A
• Surge Voltage Resistance: 6 kV
• Contact Configuration: 1 NC, 3 NO
• Operational Current AC-15: 6 A at 24 V, 220/230 V
• Operational Current DC-13: 6 A at 24 V, 0.3 A at 220/230 V
• Standard: IEC 60947, VDE 0660
• General Use: 10 A / 240 V
• No. of Poles: 4
• Electrical Connection: Screw-type terminals
• Protection Class (Front): IP20
• Ambient Temperature: -25 to 60 °C
• Dimensions: 37.5 x 36.5 x 41.5 mm
