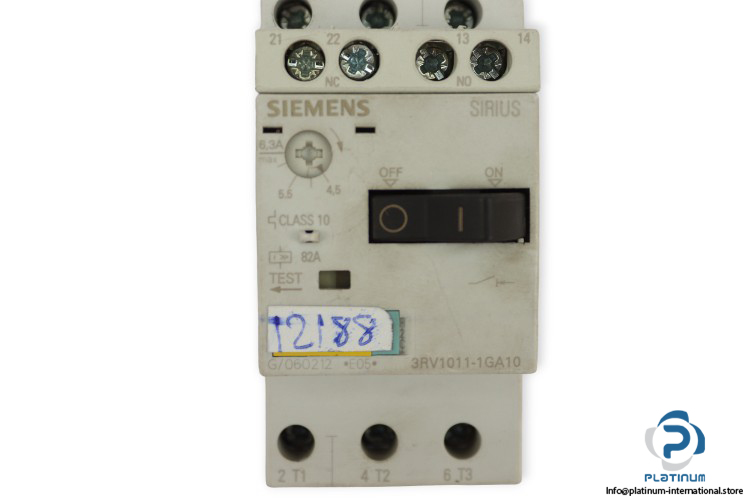

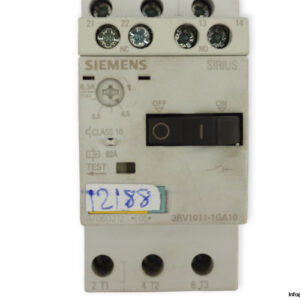

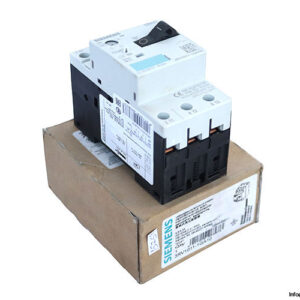

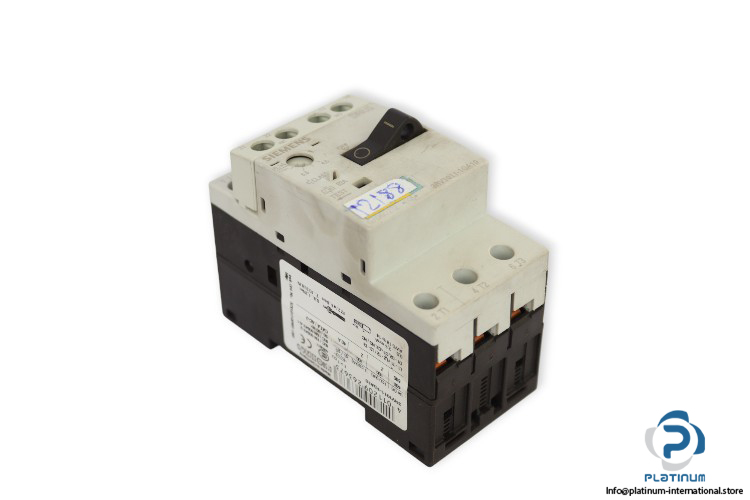

Manufacturer: Siemens
Type: Circuit Breaker
MNR: 3RV10111GA10
Product Brand Name: SIRIUS

Size: S00
Operating Voltage rated value: 690 V
Frequency: 50/60 Hz
operating power at AC-3 @ 400 V rated value: 2.2 kW
Adjustable current response range: 4.5 … 6.3 A
Operational current at AC-3 at 400 V rated value: 6.3 A
Response value current of instantaneous short-circuit trip unit: 82 A
No. of poles: 3
Main contact: 1 NO, 1NC
Trip Class: CLASS 10
Tightening Torque: 0.8 … 1.2 N·m
Type of Electrical Connection: for main current circuit screw-type terminals
Rated breaking capacity@400V (Icu): 100 kA
Rated Service breaking capacity@400 V (Ics): 100 kA
Protection degree: IP20
Standard: IEC/EN 60947-2,IEC/EN 60947-4-1
Operating temperature: -20 … 60°C
Dimensions: 90 x 45 x 75 mm
