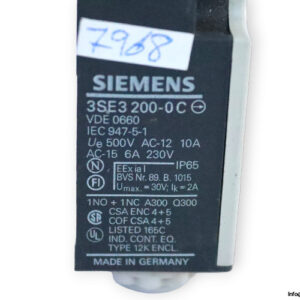

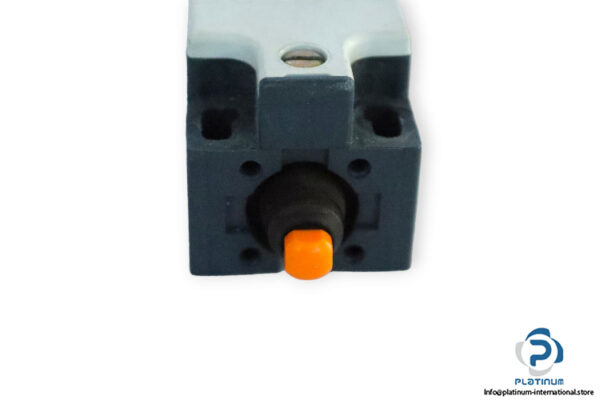

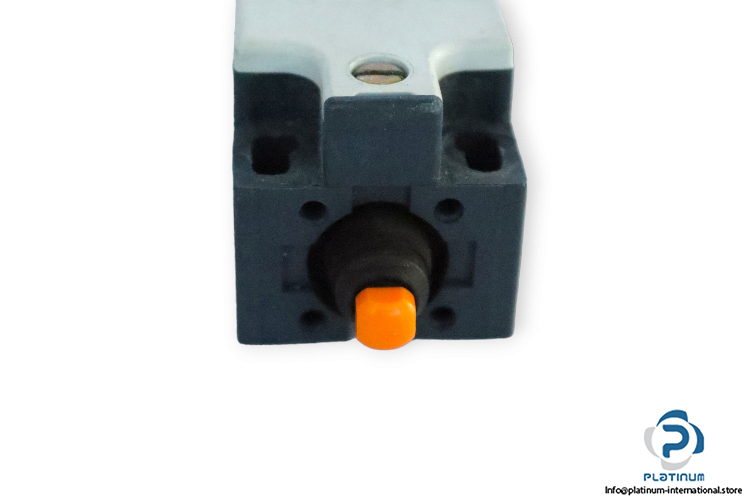

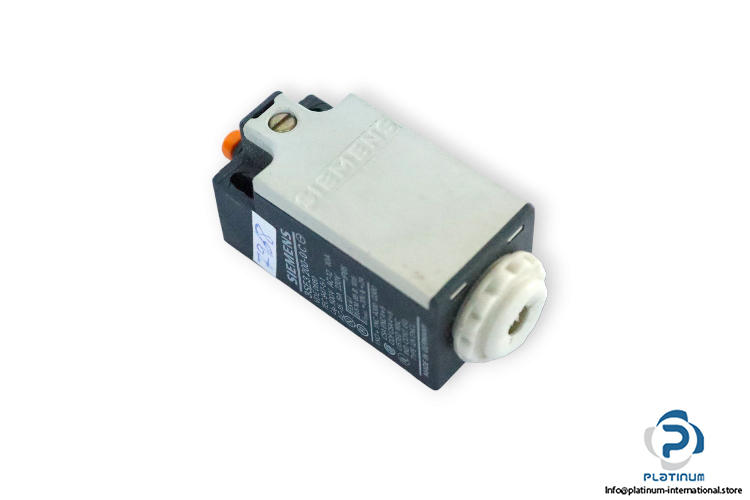

Manufacture: Siemens
Type: Position Switch
MNR: 3SE32000C

Rated insulation voltage Ue: 500 V
Output Configuration: 1NO+1NC
Switching Voltage max.: 230 V
Contact Current max. AC-15: 6 A
Contact Current max. AC-12: 10 A
Connection: Cable entry
Protection Class: IP65
Standard: VDE 0660, IEC 947-5-1
Ambient Operating Temperature: -30 … 85 °C
Conductor cross-section: max. 2×2.5 mm2, solid
