Manufacturer: SKF

Type: Cam follower (stud-type track roller) with integral sealing and relubrication feature

Model: KR47 PP NMT

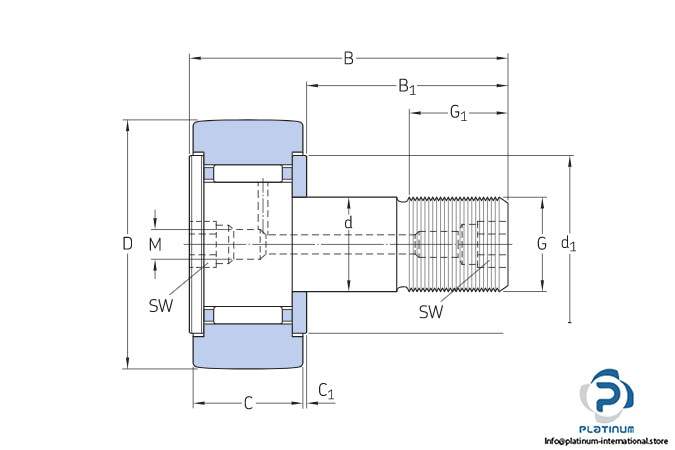

Dimensions

Outside diameter D: 47 mm

Attachment diameter d: 20 mm

Total length B: 66.1 mm

Width outer ring C: 24 mm

Thread stud G: M20x1.5

Basic load ratings:

Dynamic C: 14.7 kN

Static C₀: 25 kN

Fatigue load limit P_u: 3 kN

Limiting speed: 2800 rpm

Sealing: Contact Seal on both sides
