Manufacturer: SKF

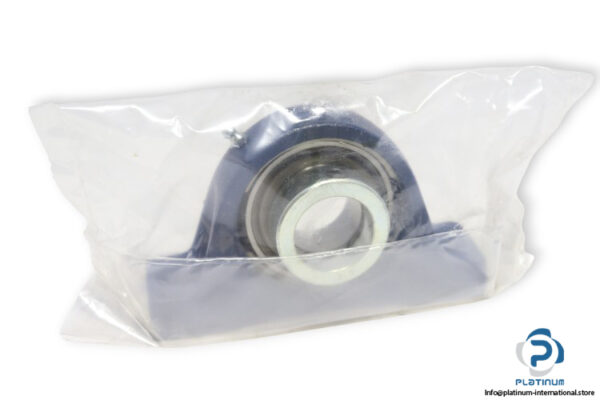

Type: pillow block ball bearing unit
Model: SY 35FM

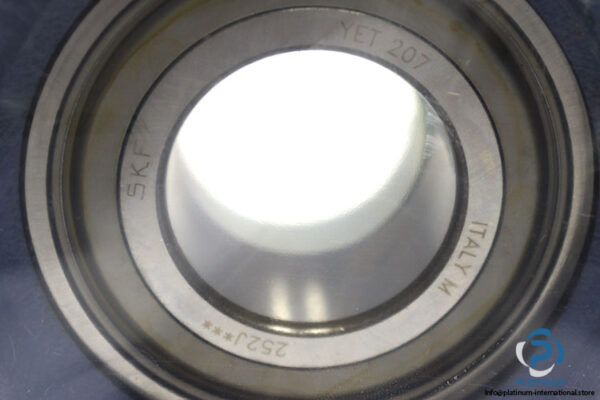

Bearing No.: YET 207

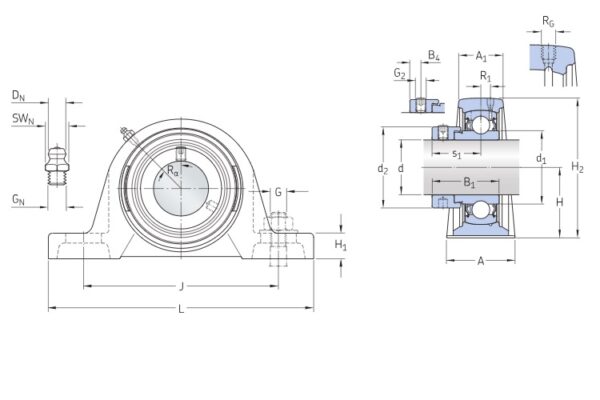

Dimensions
Bore Diameter d: 35 mm
Base width A: 45 mm
Height of spherical seat center H: 47.6 mm
Distance of attachment bolts J: 126 mm
Overall length L: 160 mm
Overall height H2: 93 mm
Basic dynamic load rating: 25.5 kN
Basic static load rating: 15.3 kN
Fatigue load limit: 0.655 kN
Limiting Speed: 5300 rpm
Material, housing: Cast iron
Sealing, bearing: Contact seal on both sides
