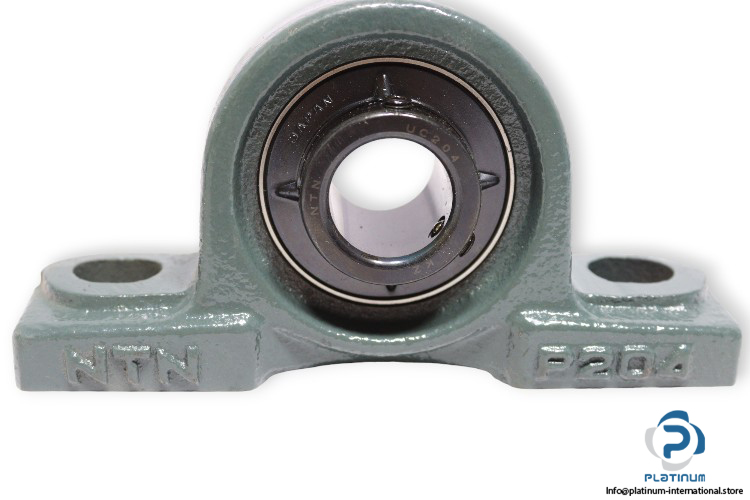

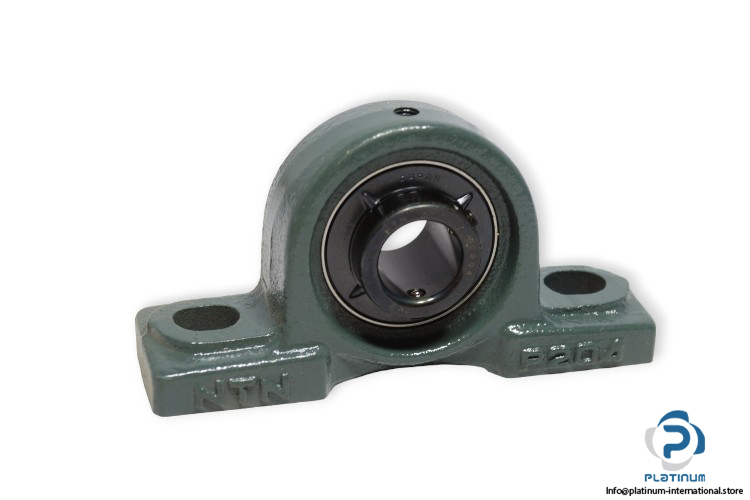

NTN M-UCP204D1 Pillow Block Ball Bearing Unit

Name: NTN M-UCP204D1 PILLOW BLOCK BALL BEARING UNIT
SKU: 1030881
Availability: LimitedAvailability

ntn-M-UCP204D1-pillow-block-ball-bearing-unit-(new)-(carton)

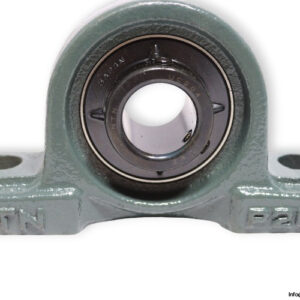

ntn-M-UCP204D1-pillow-block-ball-bearing-unit-(new)-(carton)-1

ntn-M-UCP204D1-pillow-block-ball-bearing-unit-(new)-(carton)-2

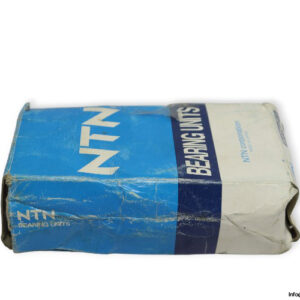

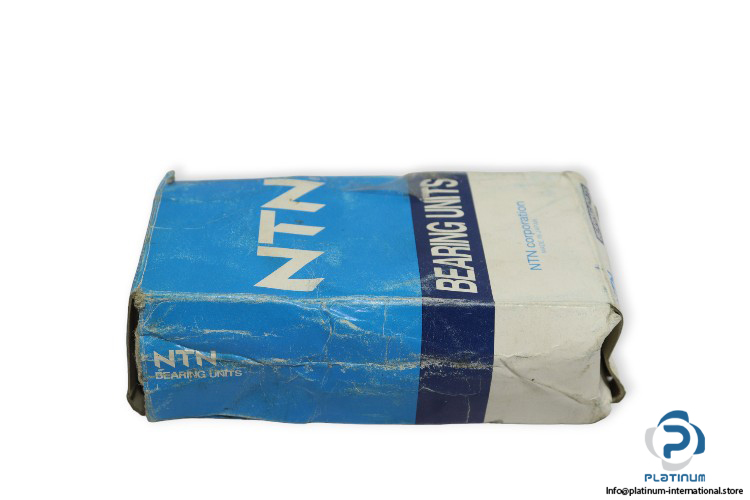

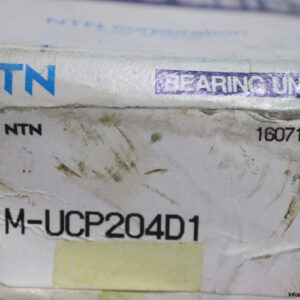

ntn-M-UCP204D1-pillow-block-ball-bearing-unit-(new)-(carton)-3

ntn-M-UCP204D1-pillow-block-ball-bearing-unit-(new)-(carton)-4

New

In stock6 unitsReady to ship

Manufacturer:

NTN

Type:

Pillow Block Ball Bearing Unit

Model:

M-UCP 204D1

Bearing Number:

UC204

Housing Number:

P204

Manufacturer

NTN?

SKU

1030881

Category

Plummer Block Housing Units

Condition

New

Ball bearing bearings Block Housing NTN Pillow Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: NTN
Type: Pillow Block Ball Bearing Unit
Model: M-UCP 204D1
Bearing Number: UC204
Housing Number: P204

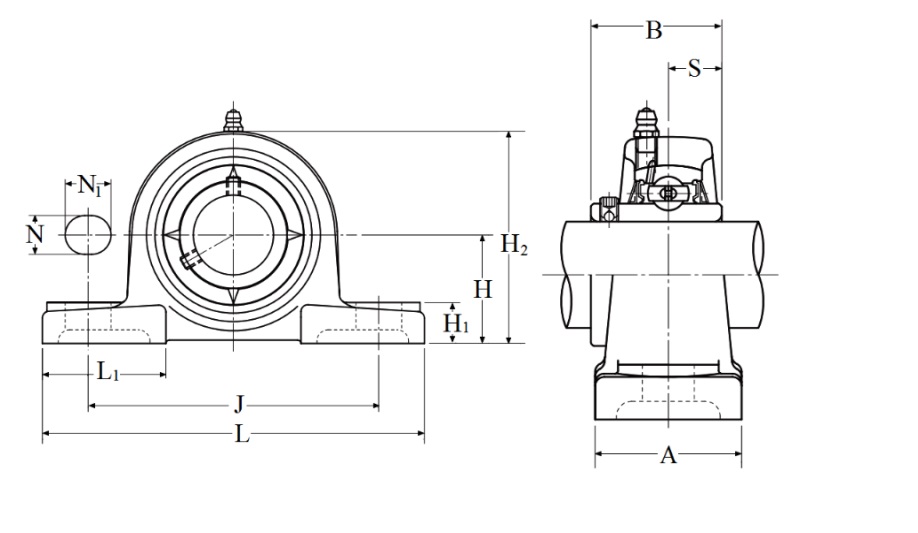

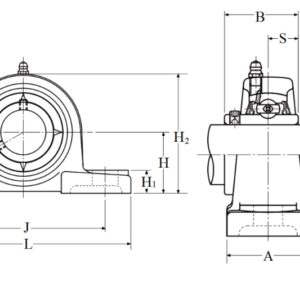

Dimensions
Bore Diameter d: 20 mm
Overall length L: 127 mm
Overall height H₂: 65 mm
Width of Inner Ring B: 31 mm
Height of spherical seat center H: 33.3 mm
Distance Between Attachment Bolts J: 95 mm
Diameter of attachment bolt hole N: 13 mm
Length of attachment bolt hole N1: 16 mm
Foot height H1: 14 mm
Bolt size: M10
Basic Load Rating:
Dynamic Cr: 12800 N
Static C0r: 6650 N
Locking Device: Set Screw
