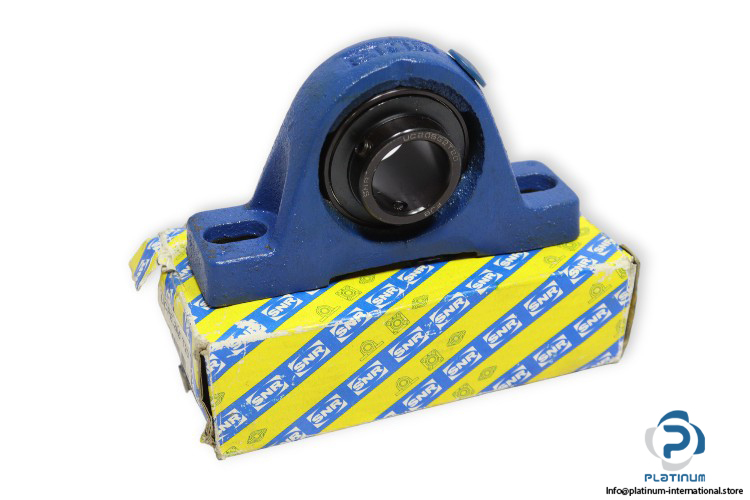

SNR UCPE.205 T20 Housing Unit
New
In stock1 unitReady to ship
Manufacturer:
SNR
Type:
Grey cast housing ,radial insert ball bearing, for high-temperature applications
Model:
UCPE 205T20

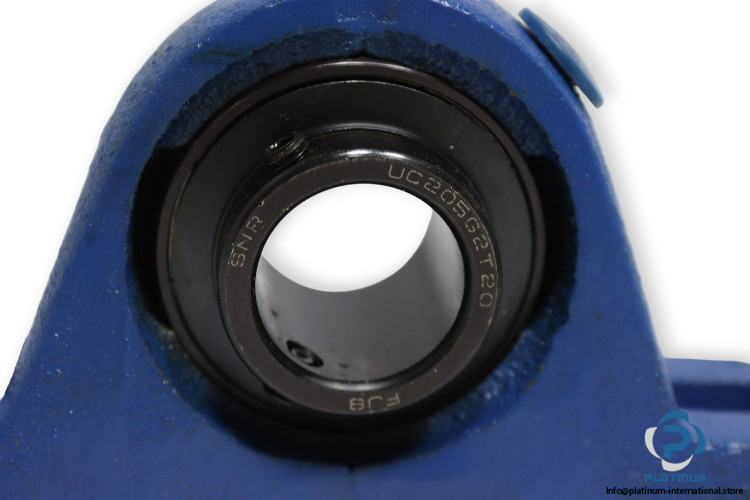

Bearing No.:
UC205G2T20

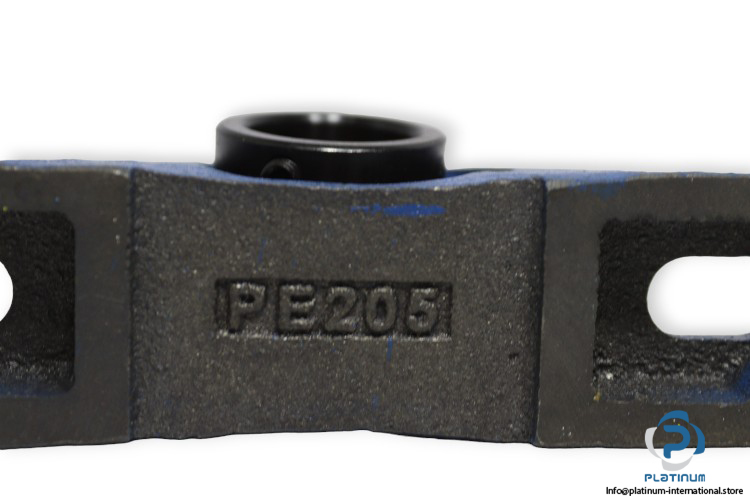

Housing No.:
PE205
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: SNR
Type: Grey cast housing ,radial insert ball bearing, for high-temperature applications
Model: UCPE 205T20
Bearing No.: UC205G2T20
Housing No.: PE205

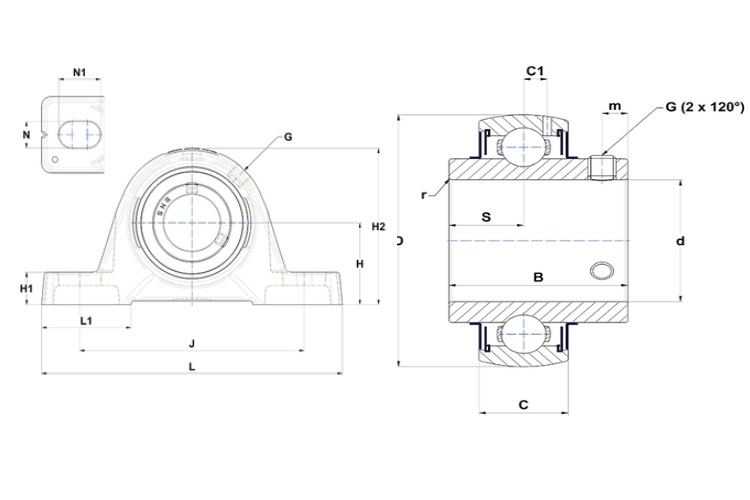

Dimensions
Shaft Diameter: 25 mm
Housing length: 130 mm
Housing width A: 36 mm
Housing height H2: 70 mm
Housing foot height H1: 14.5 mm
Width of Inner Ring B: 34 mm
Mounting holes distance J: 103 mm
Mounting hole dimension N: 11 mm
Mounting hole length N1: 19 mm
Distance front side/bearing center: 14.3 mm
Locking Device: set screw
Sealing: labyrinth seal
