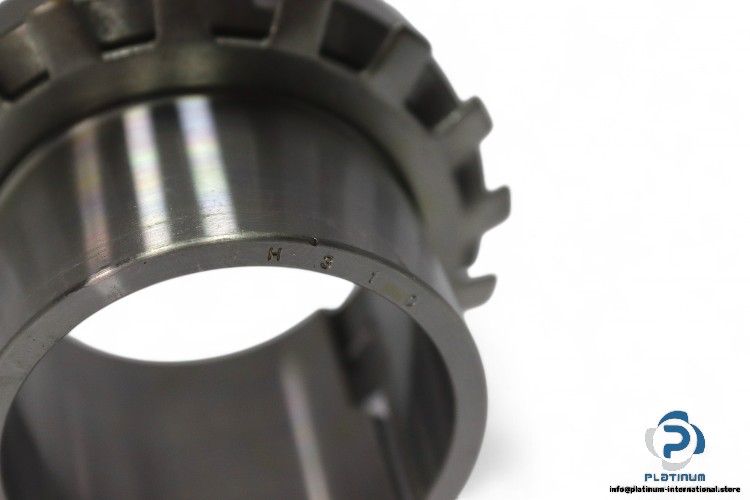

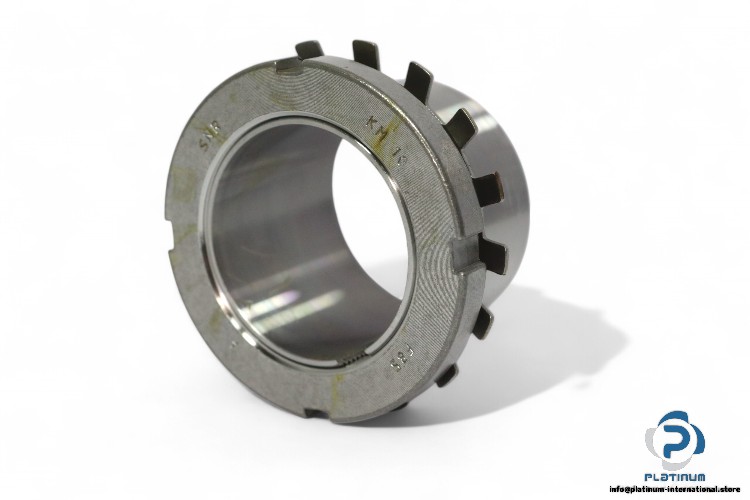

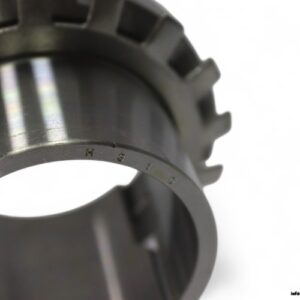

SNR H310 Adapter Sleeve

The SNR H310 Adapter Sleeve is designed for securely mounting bearings onto shafts. With precision dimensions and robust construction, it provides a reliable solution for industrial applications that require ease of assembly and high performance.

Manufacturer: SNR

Type: ADAPTER SLEEVE

Model: H310

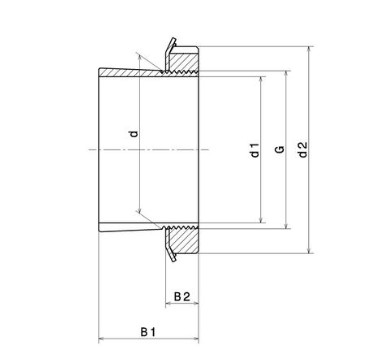

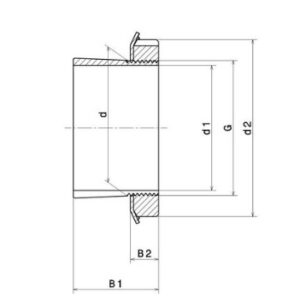

Technical Information:

• Sleeve Bore Diameter: 45 mm
• Internal Diameter: 50 mm
• Outer Diameter of Locknut: 70 mm
• Sleeve Length: 42 mm
• Distance Between Bearing Face and Nut Rear Face: 12 mm
• Thread G: M50X1.5

Designation:

• Lock Nut: KM10
• Washer: MB10

This SNR adapter sleeve provides easy installation and secure attachment of bearings to shafts, designed for a wide range of industrial applications requiring high precision and ease of maintenance.
