NTN H 2307X Adapter Sleeve
New
In stock1 unitReady to ship
Adapter Sleeve
The NTN H 2307 X Adapter Sleeve features a 30 mm bore diameter, 35 mm bearing diameter, and comes with a KM7 locknut and MB7 lock washer for secure bearing mounting in industrial systems.23073035AdapterbearingborediameterHIndustrialKM7LockLocknutMB7mmMountingNTNSecuresleevesolutionWasherx
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

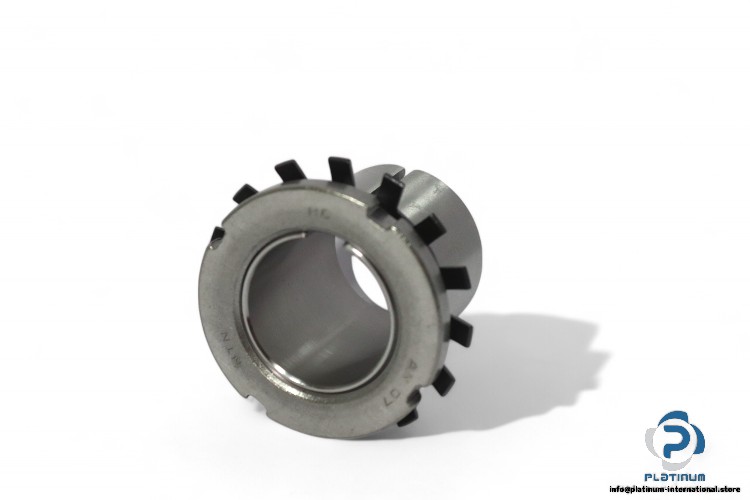

NTN H 2307 X Adapter Sleeve
The NTN H 2307 X Adapter Sleeve is designed to securely mount bearings onto shafts, offering a durable and reliable solution for various industrial applications. With its precise fit and high-quality components, this adapter sleeve ensures stable performance even under high loads.
Manufacturer: NTN
Type: ADAPTER SLEEVE
Model: H 2307 X
This NTN adapter sleeve provides easy installation and secure fixation, designed for use with bearings that require a tight and stable fit on shafts, making it suitable for a wide range of industrial applications.

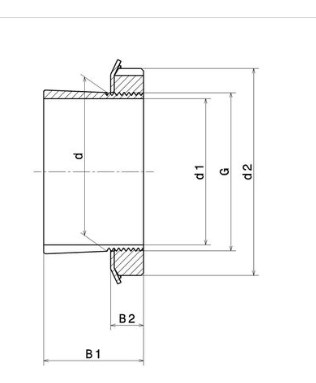

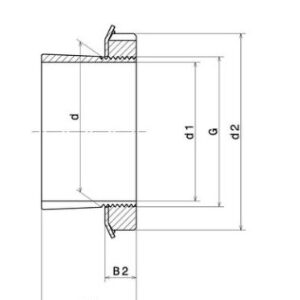

| Bore Diameter (d1) | 30 mm |
| Sleeve Length (B1) | 43 mm |
| Bore Diameter Bearing (d) | 35 mm |
| Outer Diameter Nut (d2) | 52 mm |
| Distance Between Bearing Face and Nut Rear Face | 9 mm |
| Locknut | KM7 |
| Lock Washer | MB7 |
