Rollway H 315 Adapter Sleeve
New
In stock1 unitReady to ship
Adapter Sleeve
The Rollway H 315 Adapter Sleeve features a 65 mm bore diameter, 75 mm small taper, and 98 mm lock nut diameter, designed for secure and reliable bearing mounting in various industrial applications.315657575x2AdapterbearingborediameterHIndustrialKM15LockMMB15.mmMountingnutRollwaysleeveSmallTaperThreadWasher
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Rollway H 315 Adapter Sleeve
The Rollway H 315 Adapter Sleeve is designed for secure mounting of bearings onto shafts, providing a reliable connection between the shaft and the bearing. With its robust construction and precise dimensions, it ensures stable operation in various industrial applications.
Manufacturer: Rollway
Type: ADAPTER SLEEVE
Model: H 315
This Rollway adapter sleeve offers ease of installation and secure bearing mounting, making it ideal for use in applications that require reliable and stable performance under varying load conditions.

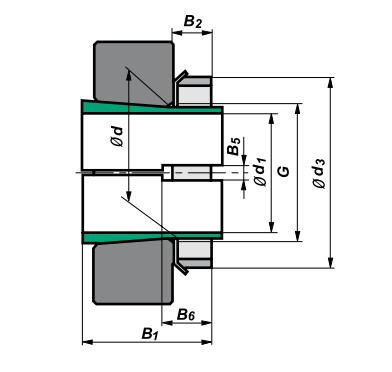

| Bore Diameter (d1) | 65 mm |
| Outside Diameter Small Taper (d) | 75 mm |
| Outer Diameter Lock Nut (d3) | 98 mm |
| Sleeve Length (B1) | 55 mm |
| B2 | 15 mm |
| Thread (G) | M 75x2 |
| Locknut | KM15 |
| Lock Washer | MB15 |
