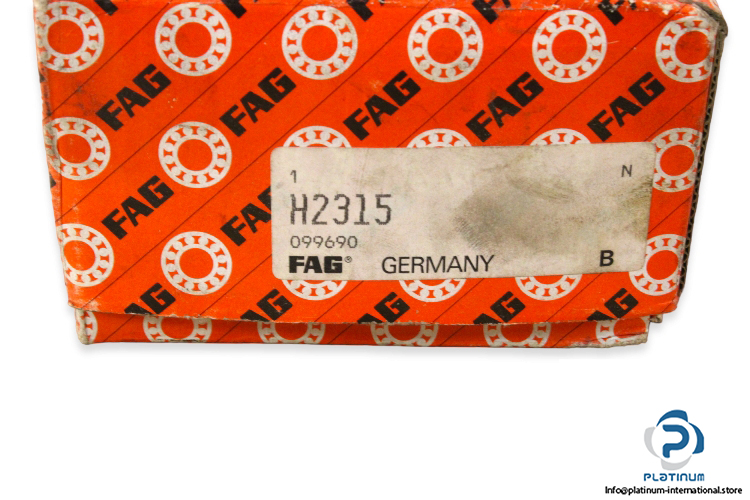

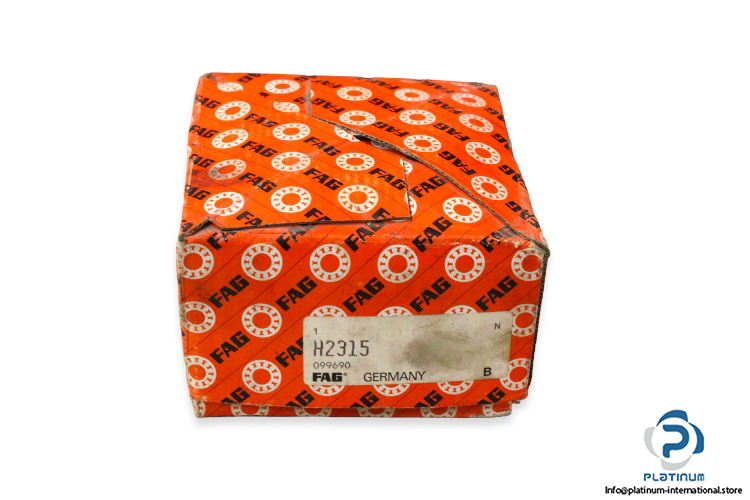

FAG H2315 Adapter Sleeve

Manufacturer: Schaeffler FAG

Type: Adapter sleeve H

Model: H 2315

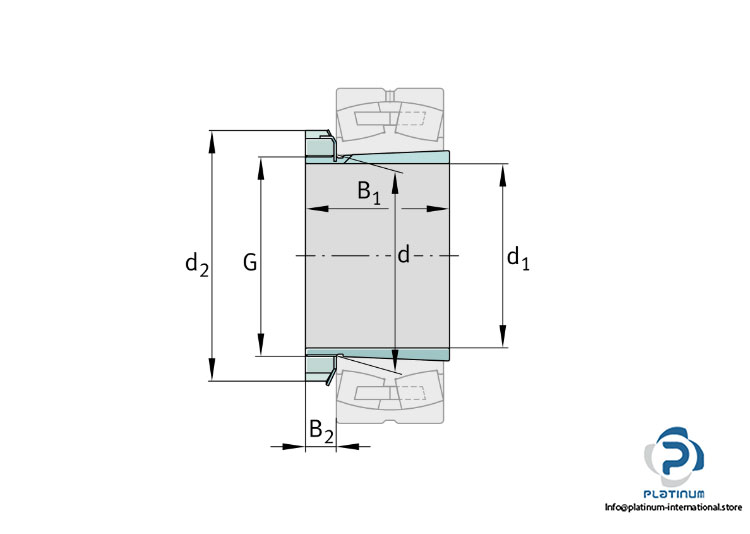

Dimensions:

Bore Diameter d₁: 65 mm

Sleeve length B₁: 73 mm

Bore diameter bearing d: 75 mm

Outer diameter nut d₂: 98 mm

Width nut and lock B₂: 14.5 mm

Thread G: M75x2

Taper: 1:12

Locknut: KM15

Lock washer: MB15
